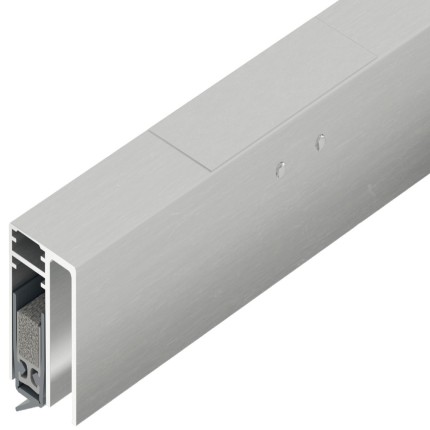

Hafele Automatic Door Bottom Planet SN, Retractable Door Seal, for Sliding Doors

Hafele Automatic Door Bottom Planet SN, Retractable Door Seal, for Sliding Doors
Hafele

The Hafele Automatic Door Bottom Planet SN, Retractable Door Seal, for Sliding Doors, is a cutting-edge lockless sliding door solution. With a surprisingly low release force of just 1 Nm per running meter, this 800 mm seal makes sure the door opens smoothly and doesn't bounce back. This door seal is made from premium components, such as an aluminum carrier and a silicone sealing profile. It offers both durability and efficient soundproofing, reaching a level of 44 dB with a 7 mm floor gap.

SOLD PER SET

See tabs below for additional information
    • SKU
      HF950.10.743
    • Market price:$497.18
      • save 20%
    • Starting price: Price: $397.74 per set


    The Hafele Automatic Door Bottom Planet SN, Retractable Door Seal, for Sliding Doors, is a cutting-edge lockless sliding door solution. With a surprisingly low release force of just 1 Nm per running meter, this 800 mm seal makes sure the door opens smoothly and doesn't bounce back. This door seal is made from premium components, such as an aluminum carrier and a silicone sealing profile. It offers both durability and efficient soundproofing, reaching a level of 44 dB with a 7 mm floor gap.

    Features:

    • For sliding wood doors providing a sound and/or smoke barrier
    • Sound absorption value is 44 dB
    • Floor clearance adjustable between 9/32"–5/8" (7–16 mm)
    • Release force is only 1 Nm (0.74 ft–lbs); makes especially suitable when using soft close mechanisms for sliding doors
    • Suitable for pocket doors and wall mounted sliding door applications
    • Can be shortened by 4-15/16" (125 mm)

    Materials:

    • Carrier: Aluminum,
    • Sealing Profile: Silicone,
    • Floor Guide: Plastic with aluminum retaining plate

     Color/finish:

    • Carrier: Bright,
    • Sealing profile: Gray
    • Floor guide: Black

    Soundproofing Level:  44 dB with floor gap 7 mm

     Area of application: For sliding doors without lock

    Supplied With:

    • 1 automatic door bottom
    • 1 set of end caps
    • 1 set of floor guides

    SOLD PER SET

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.

    This product has a guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to view our Hafele Hawa Junior 80/100 Running track, for Ceiling Installation with Suspended Ceiling, Pre-drilled

      • SKU
        HF950.10.743
    • QuickShip
      No
    • Manufacturer
      Hafele
    • Seal Length
      31-1/2" (800mm), 36-13/32" (925mm), 41-11/32" (1050mm), 46-1/4" (1175mm)
    • Handing
      Right, Left
