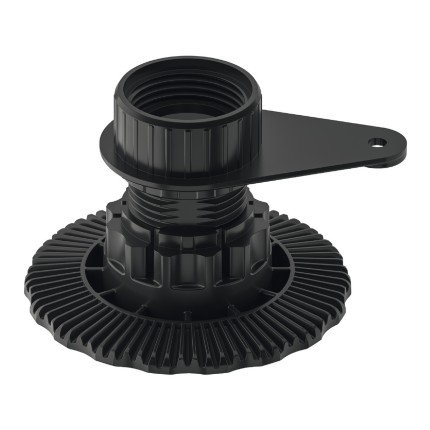

Häfele AXILO™ 78 Plinth System, Press-Fit Low Profile Foot, with Mounting Plate, Groove Mount, Black

Level with Us: Easier Cabinet Installs Start with Axilo^®

• Safer. Faster. Smarter. Axilo^®.
• Simple, struggle-free alignment of cabinetry and furniture is possible
• Häfele patented innovation. Installer-approved

Installers everywhere understand just how difficult it can be to true up cabinets while simultaneously staring down a level and stretching on hands and knees to reach the rear feet. But it doesn’t have to be that complicated. Thanks to the innovators at Häfele, there’s a much easier way to level cabinetry and furniture – and it doesn’t involve reaching, straining or any other exhausting gymnastics moves. The revolutionary Häfele Exclusive Axilo^® Plinth Adjusting Fitting System is a game-changing solution that combines an adjustment tool with adjustable plinths, allowing complete plinth leveling in just a few simple steps.

“Axilo is the solution for the most common obstacles cabinet installers face while on the job,” says Steve Hubbard, category manager for Häfele. “Even in difficult applications like base corner cabinets, installers can position and operate the adjusting tool from any angle. This provides an easier, safer way to make the height adjustments needed without crawling or stretching under cabinetry.”

Ideal for kitchen, office, wardrobe or other cabinetry projects – Axilo by Häfele simplifies cabinet leveling down to just a few manual operations. Using the adjusting tool, installers can easily reach all cabinet feet while maintaining a clear view of the level at all times for time-saving, trouble-free alignment. This can be carried out by rotating the tool by hand or by using a cordless screwdriver, thanks to a ¼" bit holder. The adjusting tool can be applied and operated from nearly any angle to the special Axilo Adjustment Feet and can be used for plinth heights of 50 - 220 mm.
