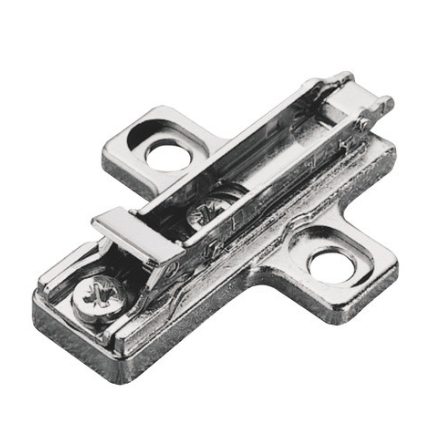

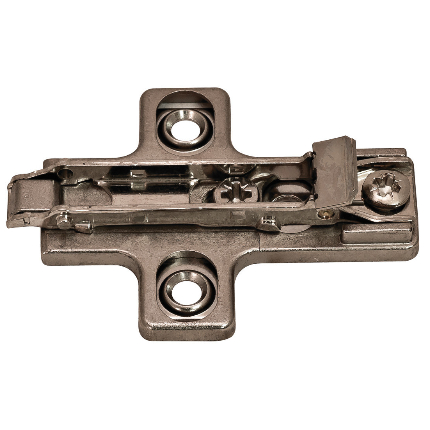

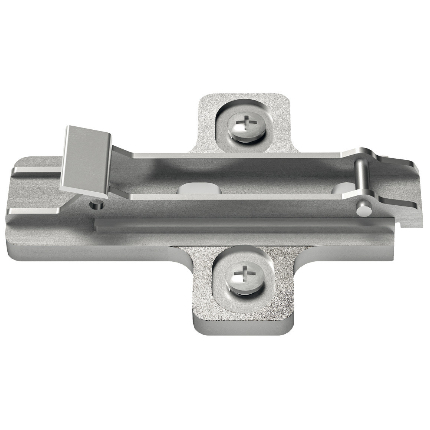

Salice Concealed Hinge, Clip Wing Mounting Plate, Quick Fixing System, Aluminum Frame, 3mm Height, Nickel-Plated

Salice Concealed Hinge, Clip Wing Mounting Plate, Quick Fixing System, Aluminum Frame, 3mm Height, Nickel-Plated
Hafele

For small or light door cabinet hardware, BAR3R39 Clip Mounting Plate for Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from zinc, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

SOLD PER PIECE

Minimum purchase quantity: 7 units
See tabs below for additional information
    • SKU
      HF-329.71.503
    • Market price:$1.81
      • save 20%
    • Starting price: Price: $1.45 per item


    For small or light door cabinet hardware, BAR3R39 Clip Mounting Plate for Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from zinc, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

    SOLD PER PIECE

    Features :

    • Screw mounted
    • Spring lever
    • With independent vertical and depth adjustment with cam
    • For Häfele Duomatic concealed hinges
    • Material: Zinc

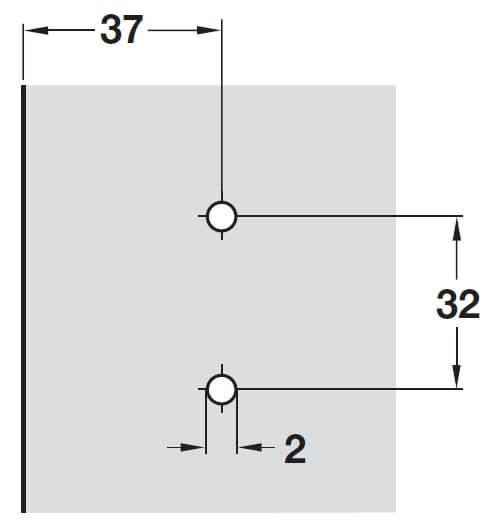

    Dimension:

    • Height: 3mm
    • Drill Hole Diameter: 2 mm
    • Screw distance: 32 mm

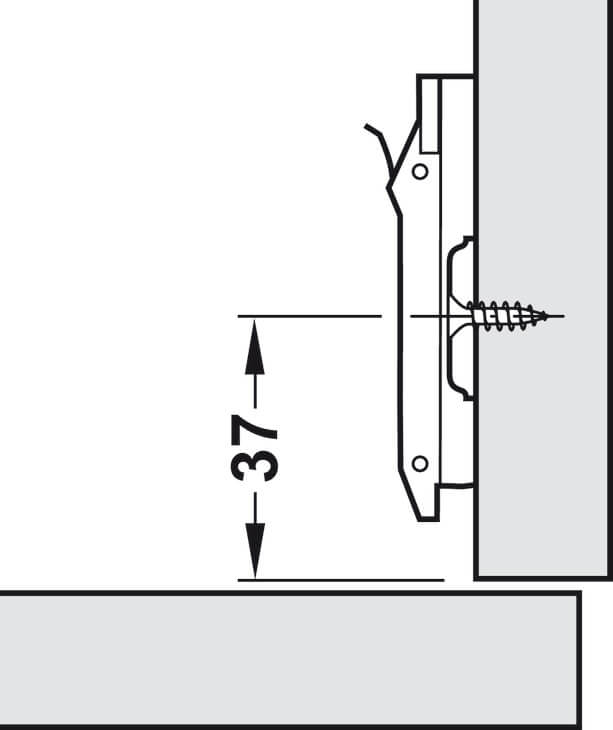

    • Edge distance: 37 mm

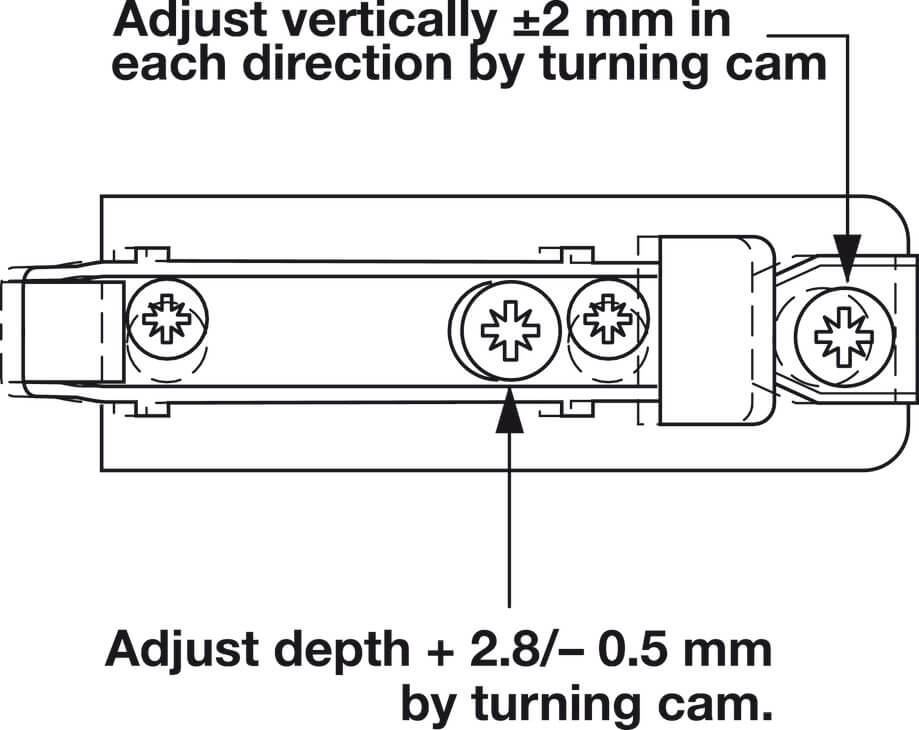

    • Adjustment facility: Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

    NOTE: This item doesn't have pre-installed Euro screws.

    SOLD PER PIECE

    This product has a lifetime limited warranty against defects in material and workmanship
    Click to view our     Full Warranty Policy.

    Click here to view Salice Concealed Hinge, Clip Wing Mounting Plate, Quick Fixing System, Aluminum Frame, 2mm Height, Nickel-Plated

      • SKU
        HF-329.71.503
    • Mounting Method
      Screw
    • QuickShip
      No
    • Manufacturer
      Hafele
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
