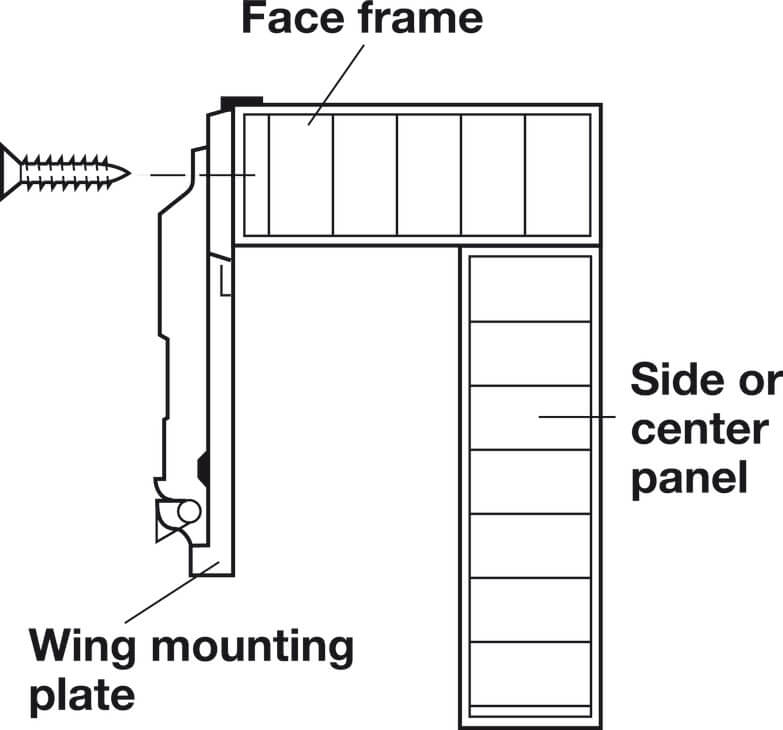

Salice Concealed Hinge, Wing Mounting Plate, Face Frame, Screw, 1/2" Overlay, Steel

Salice Concealed Hinge, Wing Mounting Plate, Face Frame, Screw, 1/2" Overlay
Hafele

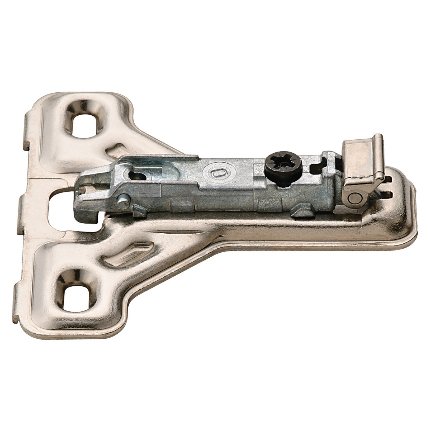

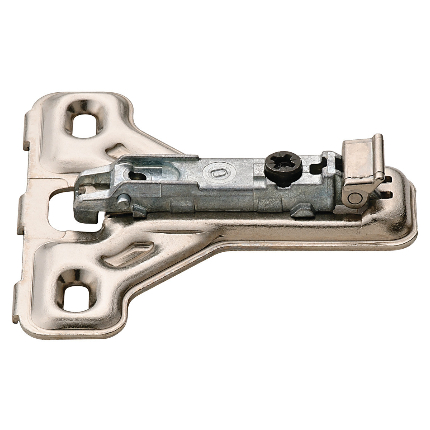

For small or light door cabinet hardware, BAU3L49 Clip Mounting Plate, Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from steel, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

SOLD PER PIECE

Minimum purchase quantity: 8 units
See tabs below for additional information
    • SKU
      HF-329.64.540
    • Market price:$1.42
      • save 20%
    • Starting price: Price: $1.14 per item


    For small or light door cabinet hardware, BAU3L49 Clip Mounting Plate, Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from steel, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

    Features :

    • Screw mounted
    • Spring lever
    • Vertical adjustment - oblong holes
    • Material: Steel

    Dimension:

    • Height: 4 mm

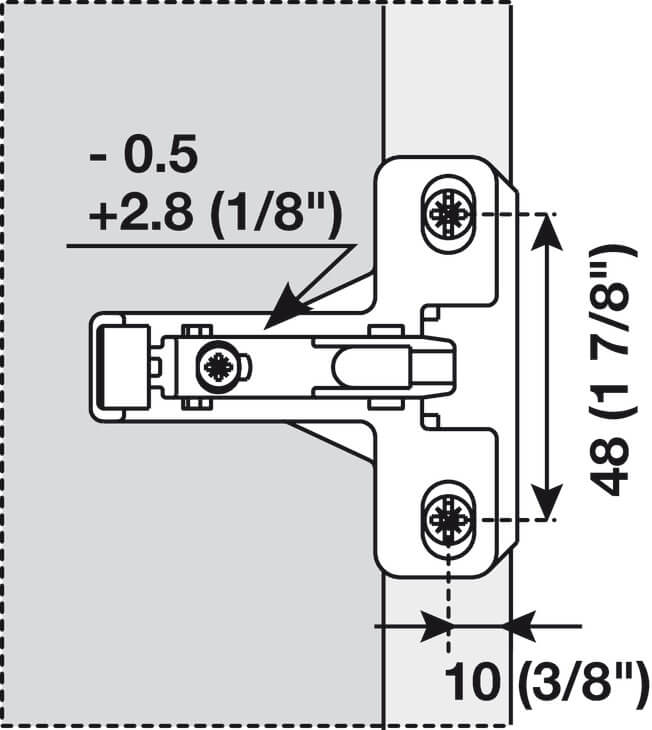

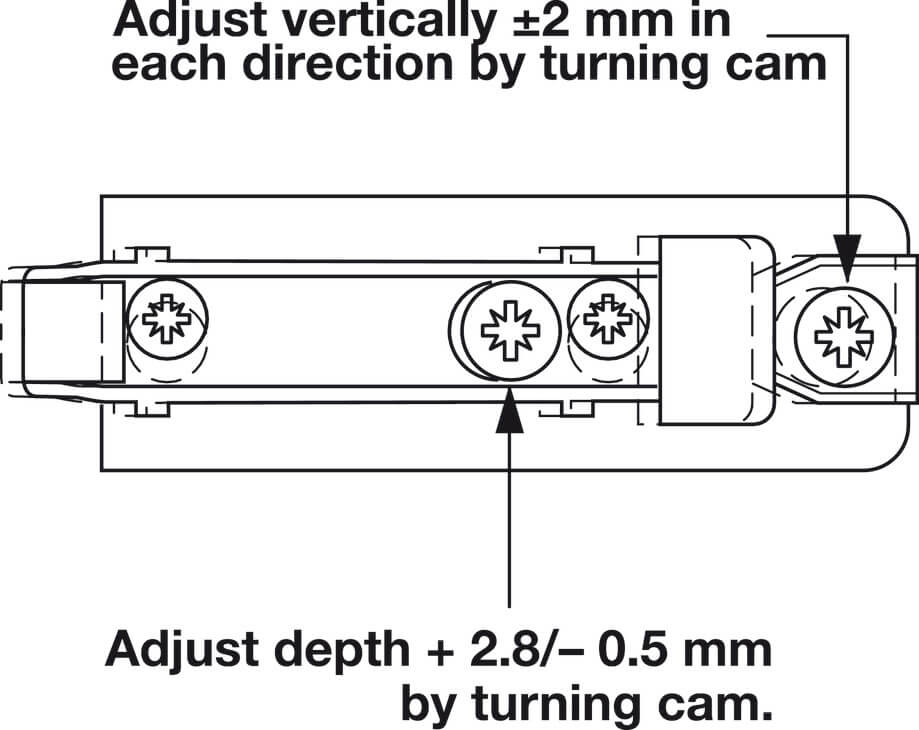

    • Adjustment: Depth adjustment Via eccentric -0.5 mm to +2.8 mm
    • Overlay: 1/2"

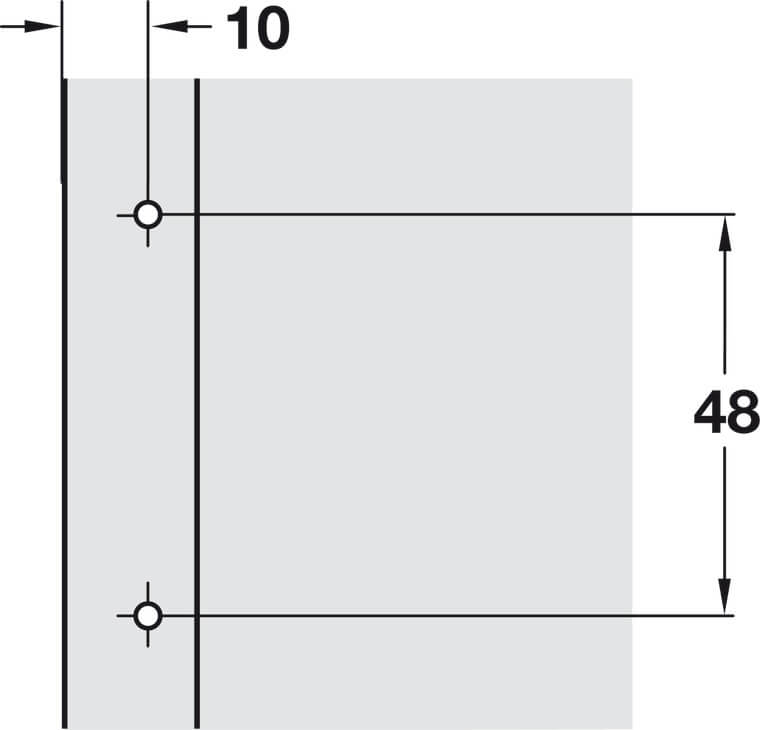

    • Screw distance: 48 mm
    • Edge distance: 10 mm

    SOLD PER PIECE

    This product has a lifetime limited warranty against defects in material and workmanship
    Click to view our     Full Warranty Policy.

    Click here to view Salice Concealed Hinge, Wing Mounting Plate, Face Frame, Screw, 3/4" Overlay

      • SKU
        HF-329.64.540
    • Mounting Method
      Screw
    • Cabinet Type
      Face Frame
    • Overlay Type
      3/4" Overlay
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      329.64.540
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
