Salice Concealed Hinge, 200 Series, 110° Opening Angle, Dowel, Inset Overlay, Self-close

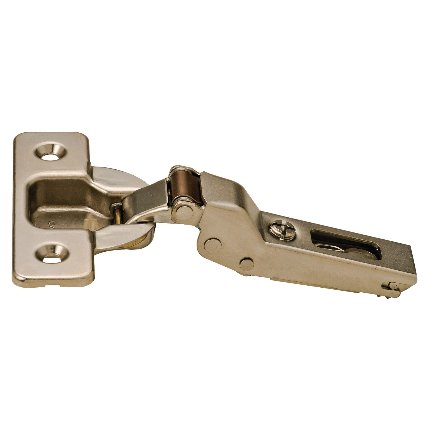

Hafele C2R6P99 - C2R6P66 Concealed Hinge, Salice 200 Series, 110° Opening Angle, Dowel, Inset Overlay, Self-Close, Nickel-plated
Hafele

For small or light door cabinet hardware, C2R6P99 - C2R6P66 Self-close Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from steel, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

SOLD PER PIECE

Minimum purchase quantity: 5 units
See tabs below for additional information
    • SKU
      HF329.17.570
    • Market price:$2.85
      • save 20%
    • Starting price: Price: $2.28 per item


    For small or light door cabinet hardware, C2R6P99 - C2R6P66 Self-close Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from steel, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

    Features :

    • The standard opening angle for a concealed hinge and is the most commonly used
    • The standard hinge for the industry, the spring in the hinge arm
           holds the door shut
    • Hinge attaches to door without tools
    • With automatic closing spring

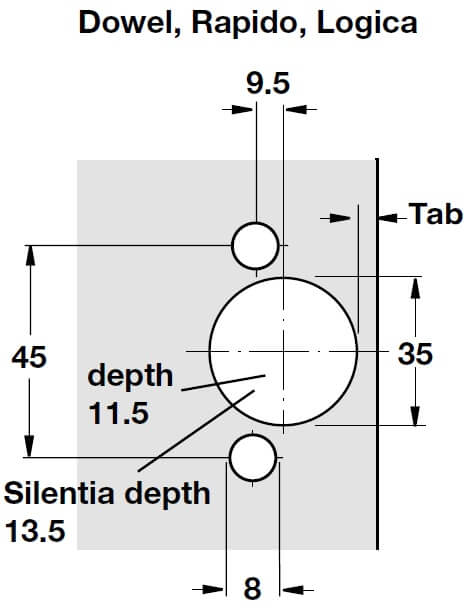

    Dimension:

    • Cup Drilling Depth: 11.5 mm (29/64")
    • Door thickness: 16–26 mm (5/8"–1")
    • Tab: 3–6 mm (1/8"–1/4")

    SOLD PER PIECE

    This product has a lifetime limited warranty against defects in material and workmanship
    Click to view our     Full Warranty Policy.

    Click here to view Salice Concealed Hinge, 200 Series, 110° Opening Angle, Dowel, Half Overlay, Self-close

      • SKU
        HF329.17.570
    • Mounting Method
      Dowel
    • Cabinet Type
      Face Frame
    • Degree of Opening
      110°
    • Overlay Type
      Inset Overlay
    • Cup Diameter
      35mm
    • Cup Depth:
      11.5mm
    • Closing Method
      Self-Closing
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      329.17.570, 329.17.579
    • Finishes
      • Finish

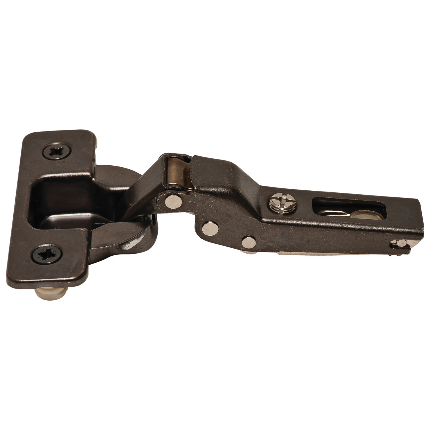

        Nickel Plated, Titanium
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
