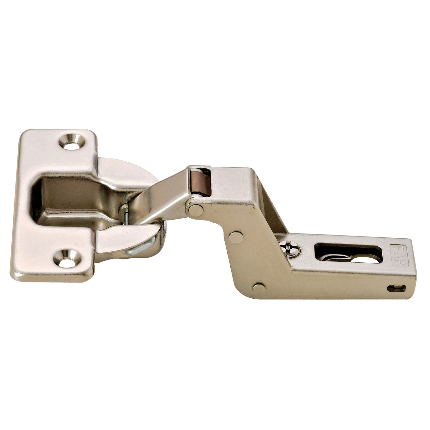

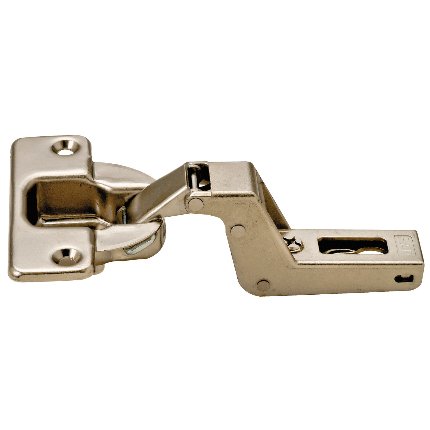

Salice Concealed Hinge, Thick Door Hinge, 94° Opening Angle, Screw, Inset Overlay, Free-Swinging

This item hase been discontinued

For small or light door cabinet hardware, CFA5P99 Free-swinging, Thick door Hinge from Salice is the best choice. This kitchen cabinet hardware is made from steel, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

SOLD PER PIECE

See tabs below for additional information

This item hase been discontinued

Features :

Typically used with touch latches – partial opening
Does not have an internal spring
Material: Cup: Zinc, die-cast; Hinge arm: Steel

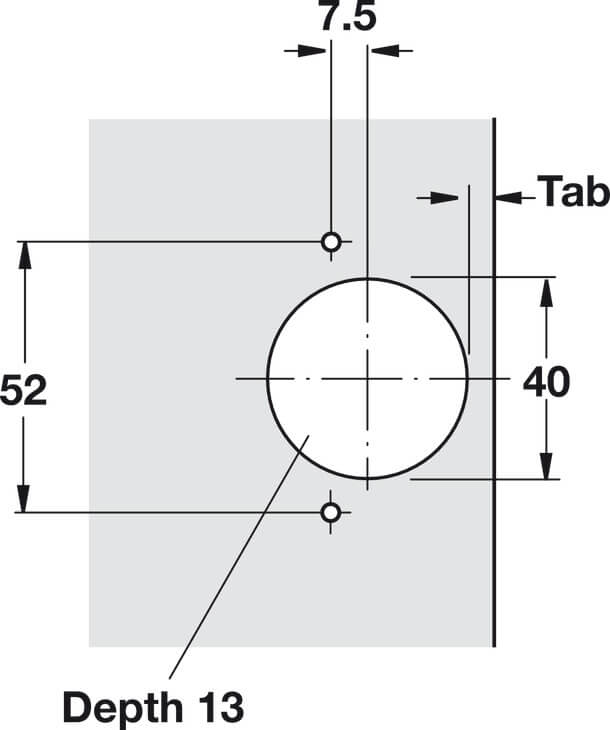

Dimension:

Door thickness: 19–38 mm (3/4"–1 1/2")
Cup Drilling Depth: 13 mm (33/64")
Tab: 3–15 mm (1/8"–9/16")

SOLD PER PIECE

This product has a lifetime limited warranty against defects in material and workmanship
Click to view our Full Warranty Policy.

Click here to view Salice Concealed Hinge, Thick Door Hinge, 94° Opening Angle, Screw, Half Overlay, Free-Swinging

- SKU
  HF-329.04.635
Mounting Method
Screw
Cabinet Type
Face Frame
Degree of Opening
94°
Overlay Type
Inset Overlay
Cup Mount
Screw Fixing
Cup Diameter
40mm
Cup Depth:
13mm
Closing Method
Free-Swinging
QuickShip
No
Manufacturer
Hafele
MPN
329.04.635
Finishes
- Finish
  Nickel Plated
Compliance Details
- Warranty
  Lifetime Limited Warranty
