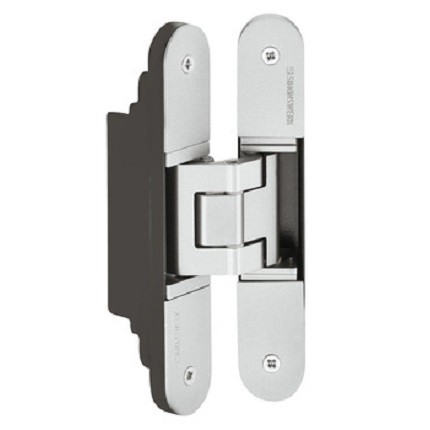

Hafele Concealed Hinge, Tectus TE 340 3D, 176 Lb Door

Hafele Concealed Hinge, Tectus TE 340 3D, 176 Lb Door
Hafele

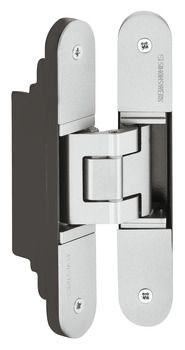

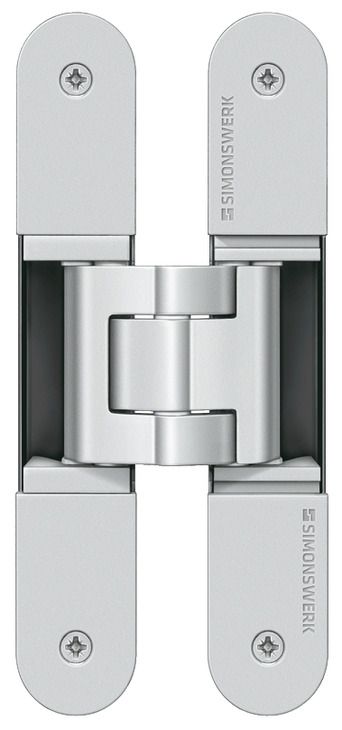

Hafele Concealed Hinges, have become the go-to hinge for high-performance doors. Tectus TE 340 3D is used in frames of flush interior doors made of hollow metal or wood. Their 3-D adjustability has made the installation of premium flush doors so efficient that they are installer's favorite. These invisible hinges are suitable for right or left-hand applications. For door weights up to 176 lbs with an opening angle of 180 degrees. Available in many different finish options.

See full product details in tabs below.

PRICED PER PIECE



See tabs below for additional information
    • SKU
      HF924.17.104
    • Market price:$281.27
      • save 20%
    • Starting price: Price: $225.02 per item


    Hafele Concealed Hinge, Tectus TE 340 3D is used in door frames of flush interior doors made of hollow metal or wood. Click to view Hafele Concealed Hinge Catalog.

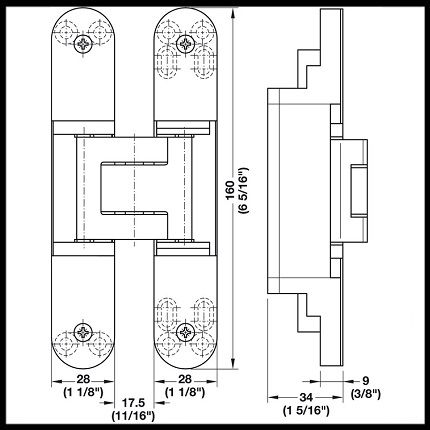

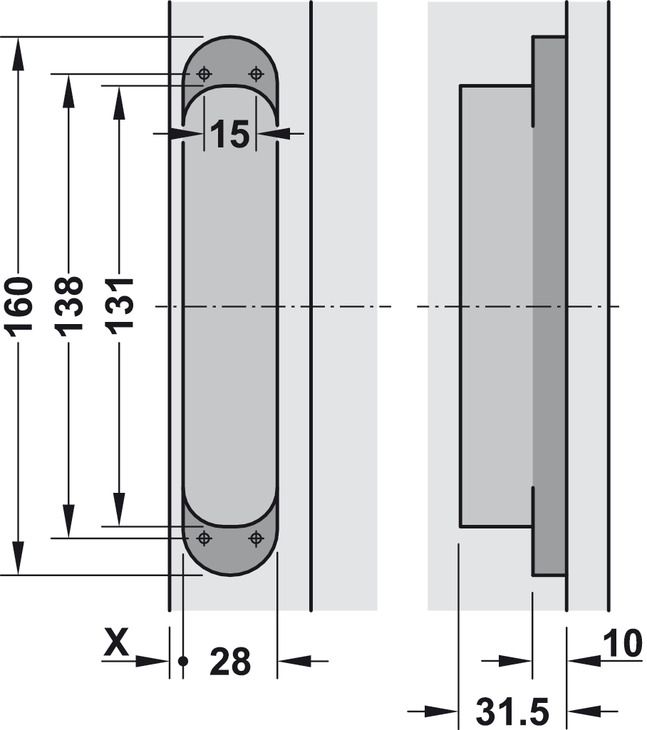

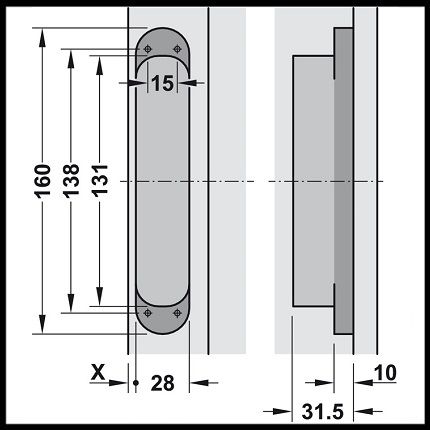

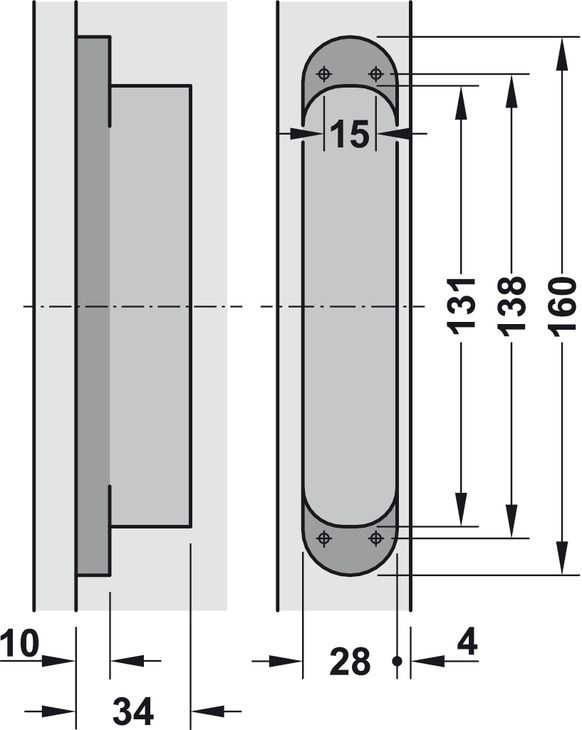

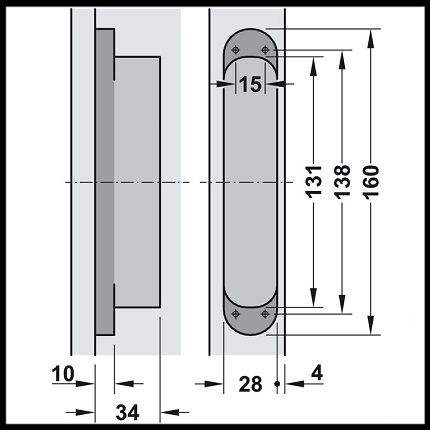

    Hinge Size: 6.2" (160 mm)

    Door Dimensions:

    • Door Weight: Maximum 176 lbs. (80 kg)
    • Door Thickness: 1 - 9/16” (40 mm)
    • Opening Angle: 180º
    • Router Bit: 15/16" (24 mm)
    • Router guide: 1 - 3/16" (30 mm)

    Adjustment: three-dimensionally adjustable

    • Height: 1/8” (3 mm)
    • Width: 1/8” (3 mm)
    • Depth: 1/16” (1.0 mm)

    Finish Color: Available in many different finish options, choose from the dropdown above.

    Set Features:

    • Used in door frames made out of hollow metal or wood in flush interior doors
    • Maintenance-free slide bearings
    • Suitable for left and right hand applications
    • UL listed for 20 minute rated fire doors (maximum door size: 4’ x 8’ for a single door, 8’ x 8’ for a pair of doors)

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to view Hafele Central Hinge, for Pegaso 20

      • SKU
        HF924.17.104
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      924.17.104, 924.17.121, 924.17.122, 924.17.150, 924.17.170, 924.17.177
    • Finishes
      • Finish
        Stainless Steel Look, Satin Chrome Finish, Satin Nickel Finish, Bronze Finish, Polished Nickel (US14), White Powder Coat, Dark Bronze Finish
