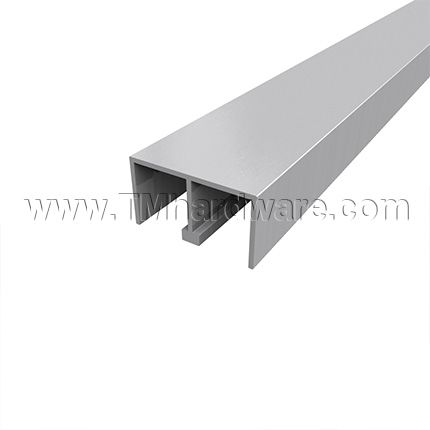

Hafele Double Upper Guide Track, Screw Fixing, Slido Design 25 IF, 98"
Hafele Double Upper Guide Track is a required component for the Slido Design 25 IF Set, see below for compatible products. This product is designed for screw fixing. Made of aluminum, with a length of 98 - 7/16".
See full product details in tab below.
PRICED PER PIECE
Hafele Double Upper Guide Track is a required component for the Slido Design 25 IF Set. Click here to view the Slido Design 25 IF Set Catalog.

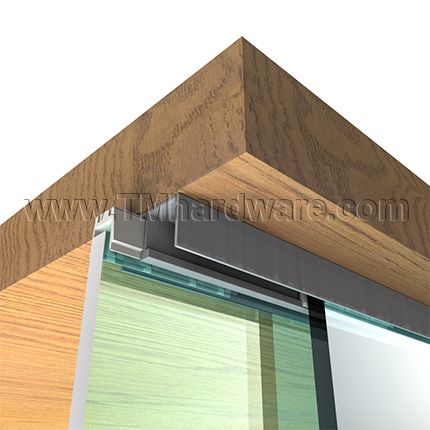

Application: Top running doors

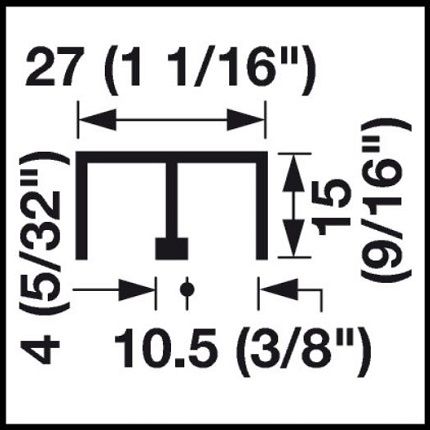

Length: 98 - 7/16" (2500 mm)
For Glass Thickness: 1/4" and 5/16" (6 and 8 mm)
Material: Aluminum
Finish/ Color: Silver colored anodized
Installation: Screw Fixing
Required Set Components:
- Hafele #415.13.060- Installation tool for running gear
- Hafele #415.12.925- Glass profile, bottom
- Hafele #415.13.612- U-shaped glazing gasket for glass door
- Hafele #415.13.612- Glazing gasket for glass door
- Hafele #415.11.925- Double bottom running track
- Hafele #415.13.050- Gasket
End Cap- choice of:
- Hafele #415.13.02- End cap
- Hafele #415.13.17- End cap with handle
- Hafele #415.08.972 (for use with Dialock EFL 41)
- Hafele #416.13.932
- Hafele #233.02.420
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Click here to view the Hafele Glazing Gasket for Glass Profile
Click to View or Print Hafele Double Upper Guide Track Installation Instructions.
