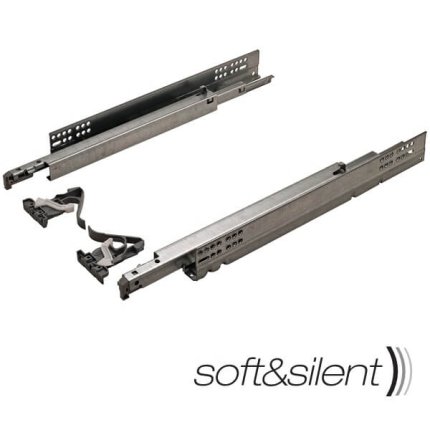

Hafele Drawer Slide Undermount with Soft Close, Salice A7555 Futura 16, Full Extension, 1/2" - 5/8" Box
The Salice A7555 Futura 16 is an Undermount Drawer Slide, Full Extension, with Integrated Soft Close which can support weights up to 75 LB / pair. Compatible with 1/2" - 5/8" thick drawer box material and is available in a selection of lengths.
PRICED PER PAIR
NOTE: Front clips are required for installation, purchase Height Ajdustable Clip or 6 Way Adjustable Clip separately.
See tabs below for additional information
The Salice A7555 Futura 16 is an Undermount Drawer Slide, Full Extension, with Integrated Soft Close.

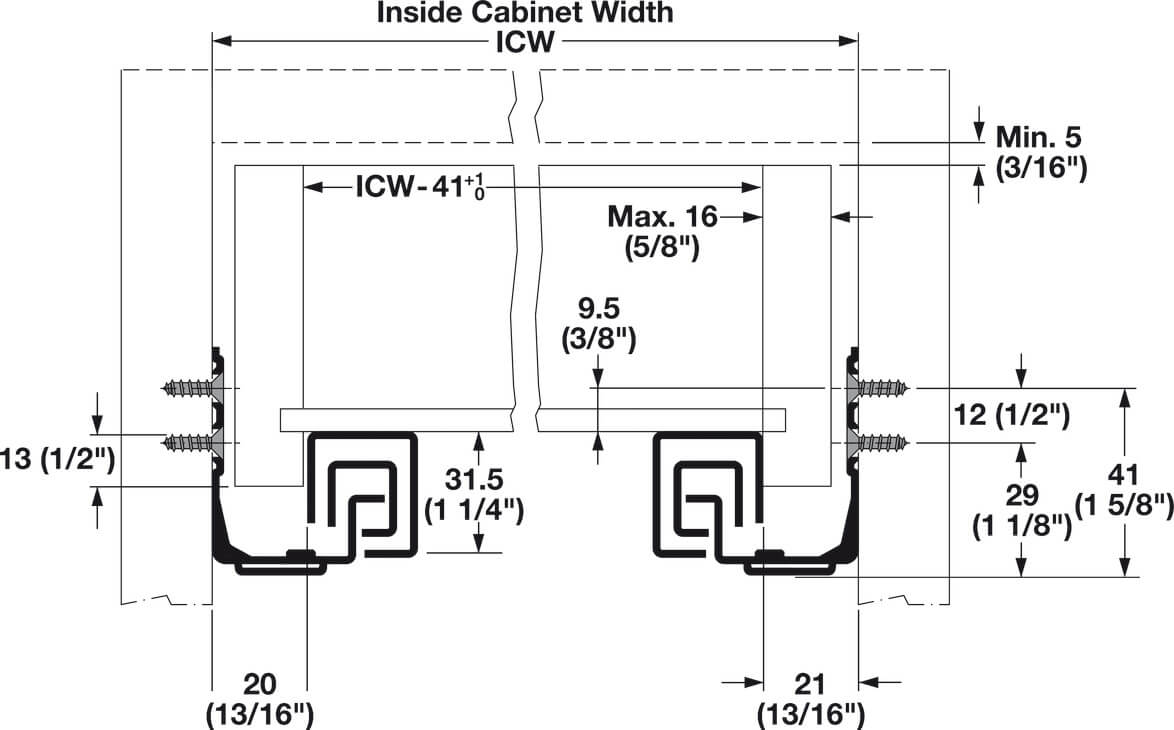

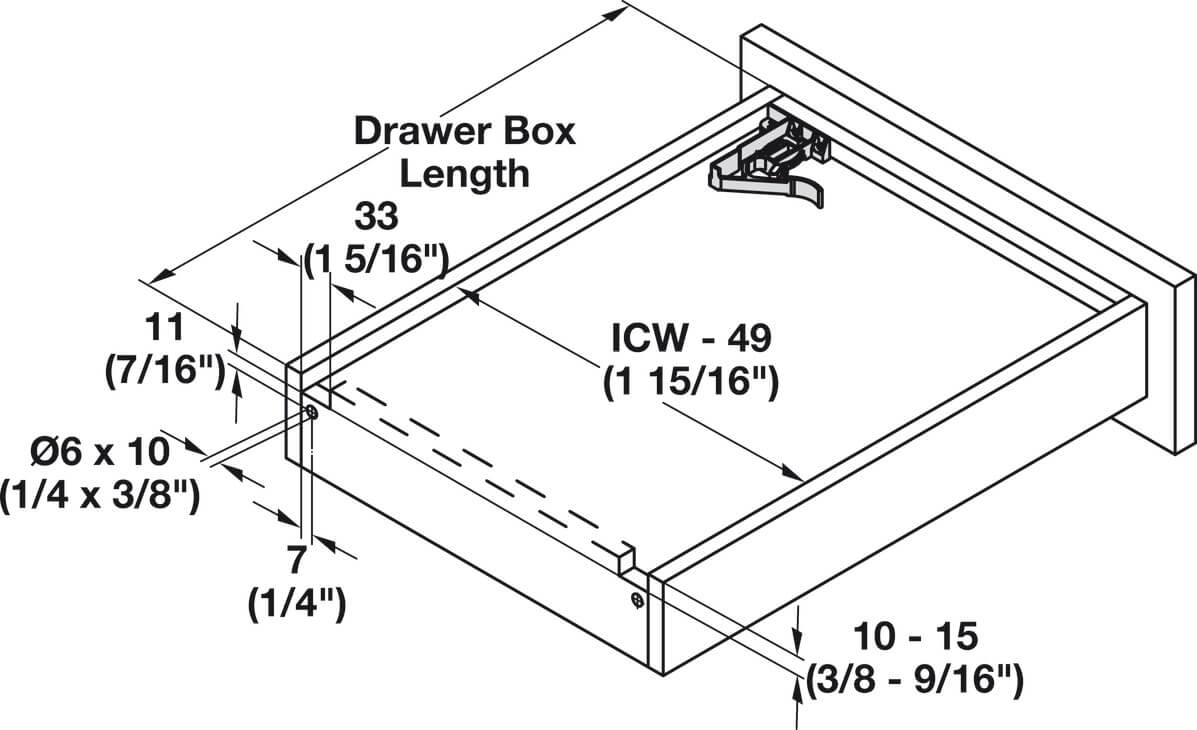

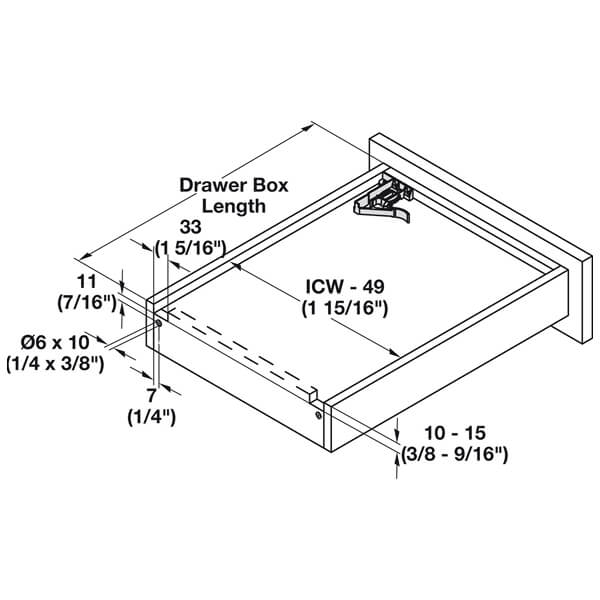

For additional dimensions, see Salice A7555 Futura 16 catalog page.
Compatible Front Clips - Required for Installation:
- Height Adjustable Front Clip for Salice A7555 Futura 16 - #421.23.000
- 6 Way Adjustable Front Clip for Salice A7555 Futura 16 - #421.23.001
Features:
- Dynamic Weight Capacity: 75 LB / Pair (35kg)
- Integrated soft close with 52 mm (2 1/16") closing range
- Box Thickness: 1/2" - 5/8" Thick
- Meets or exceeds BHMA grade 1 testing requirements
- Slotted hole for depth adjustment
- Front clips (sold separately) disconnect for easy drawer insertion and removal
- Material: Steel
- Finish: Zinc-Plated
For 3/4" Thick Box Drawer, see our Salice A9555 Futura 19 Drawer Slides.
-
Drawer TypeFrameless Contruction, Face Frame Construction
-
Pull Out TypeFull Extension
-
Load Bearing Capacity75 LB
-
MaterialSteel
-

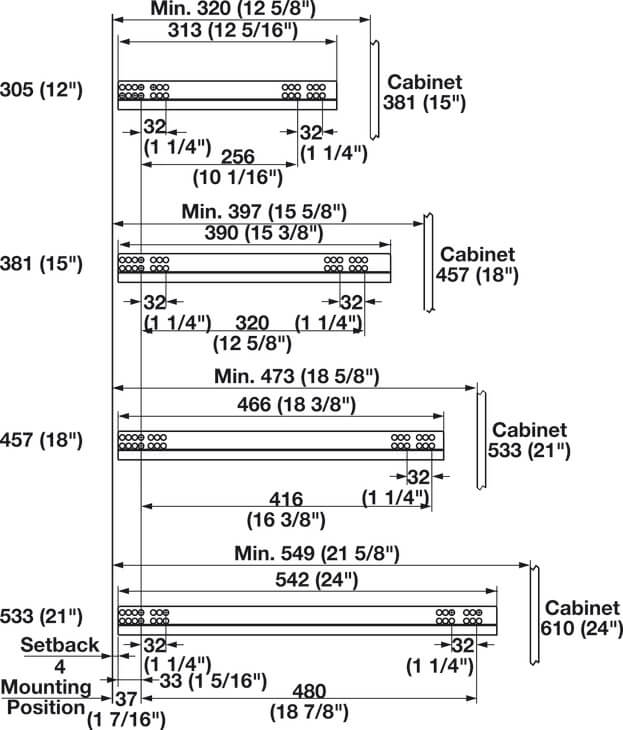

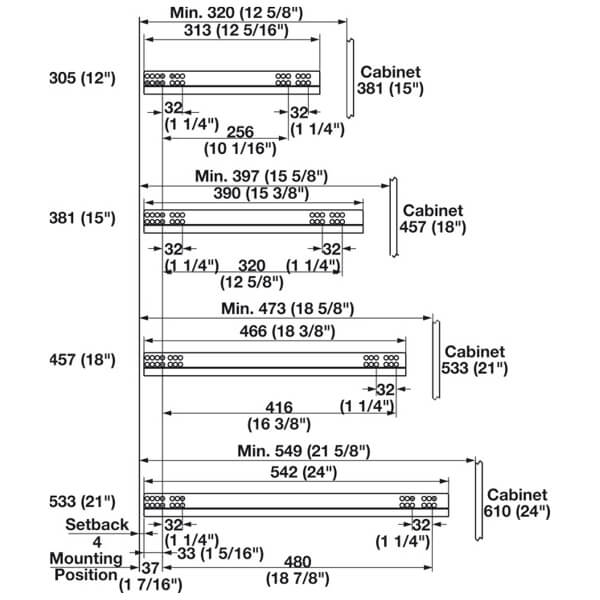

Drawer Length9" Length, 12" Length, 15" Length, 18" Length, 21" Length
-
Drawer Box Material1/2" - 5/8" Thick
-
Mount TypeUndermount
-
Soft Close MechanismYes
-
QuickShipNo
-
ManufacturerHafele
