Hafele EKU Clipo 36H Inslide Sliding Hardware, For Inset By-Pass Doors, 79 LB Doors

Hafele EKU Clipo 36H Inslide Sliding Hardware, For Inset By-Pass Doors, 79 LB Doors
Hafele

Hafele EKU Clipo 36H Inslide Hardware is designed for 2 by-pass wooden doors installed in inset position. Available with a soft close mechanism which prevents doors slamming and helps eliminate noise. As well as, a tool-less clip on hardware feature which allows for quick and easy door mounting. Can accomodate doors up to 79 LB, with a height up to 86".

Note: Additional tracks and optional hardward is needed to complete the set, see below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF405.02.404
    • Market price:$446.49
      • save 20%
    • Starting price: Price: $357.19 per set


    EKU Clipo Series is Swiss made sliding solutions, ensuring top-of-the-line, quality hardware. Click here to view the Hafele EKU Clipo 36 H Catalog.

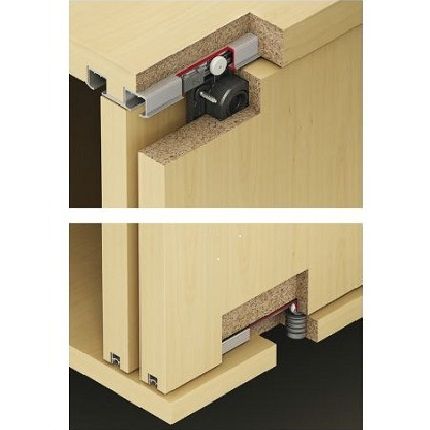

    Application: For two by-pass wooden sliding doors, inset.

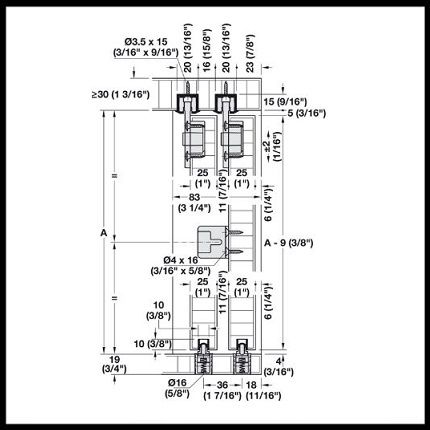

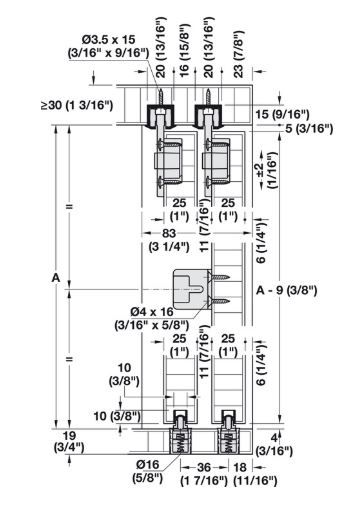

    Door Dimensions:

    • Max Door Thickness: 3/4 - 1" (19 - 25mm)
    • Max Door Width: 39 - 3/8" (1000 mm)
    • Max Door Height: 86 - 5/8" (2200 mm)
    • Max Door Weight: 79 lbs. (36 kg)
    • Height Adjusment: 1/16" (2 mm)

    Features:

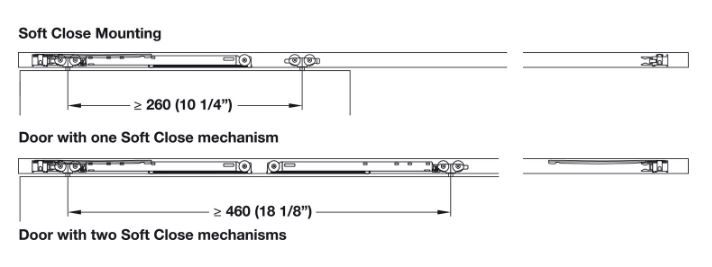

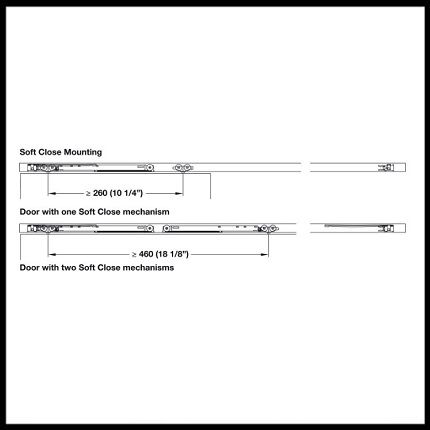

    • Soft Close Mechanism can be added to prevent doors slamming and eliminate noise
    • Rattle-free floor guide
    • No guide rails in the bottom of the cabinet
    • Tool-less clip-on hardware allows for quick and easy door mounting

    Supplied with:

    • 4 Top Running Gears
    • 4 Housing Pieces
    • 1 Soft Stop
    • 4 Track Stoppers
    • 2 Floor Guides

    Additional Required Products: The following products are required. Please order separately.

    Additional Options:

    • Hafele #405.00.62 Upper Track, Screw Mounting
    • Hafele #405.04.251 Lower Guide Channel, Glue Mounting
    • Hafele #405.10.07 Soft Close Mechanism
    • Hafele #405.00.072 upper Track, Service Port

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view Hafele EKU Clipo 26H Sliding Hardware, 57 LB Doors.
