Hafele EKU Combino 35H Forslide System, For Overlay By-Pass, 2 or 3 Doors, 77 LB Doors

Hafele EKU Combino 35H Forslide System, For Overlay By-Pass, 2 or 3 Doors, 77 LB Doors
Hafele

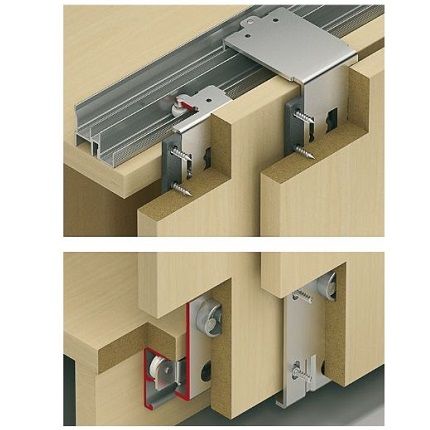

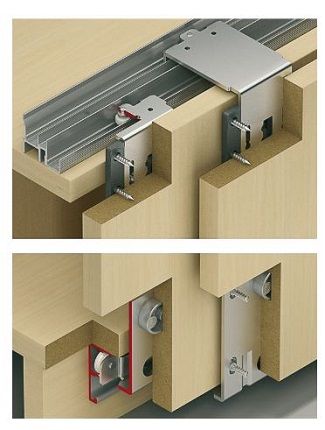

Hafele EKU Combino 35H Forslide hardware is designed for 2 or 3 by-pass doors installed in overlay position. It is a bottom running system with the upper guide channel surface mounted to the top of the cabinet. Can accommodate doors up to 77 lb, with a height up to 86- 5/8". This product is also available for a 44 lb door.

Note: Additional tracks are required to complete the set. See tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF405.91.224
    • Market price:$883.87
      • save 20%
    • Starting price: Price: $707.10 per set


    EKU Clipo Series is Swiss made. These sliding solutions ensure top-of -the-line quality hardware. Click here to view the EKU Combino 35, Forslide Catalog.

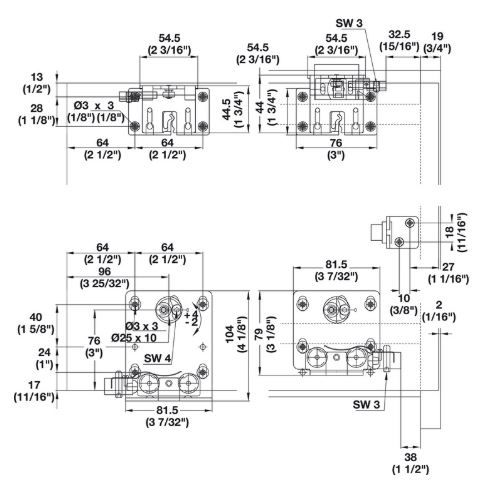

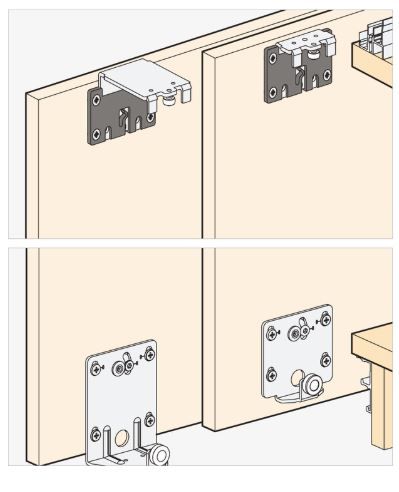

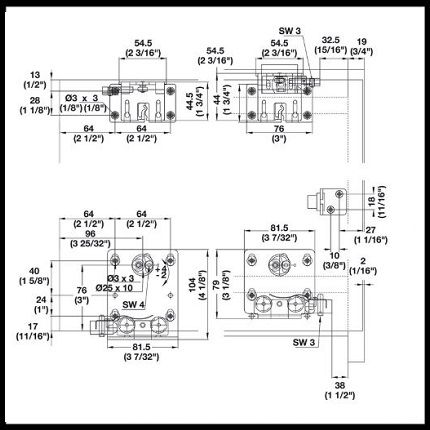

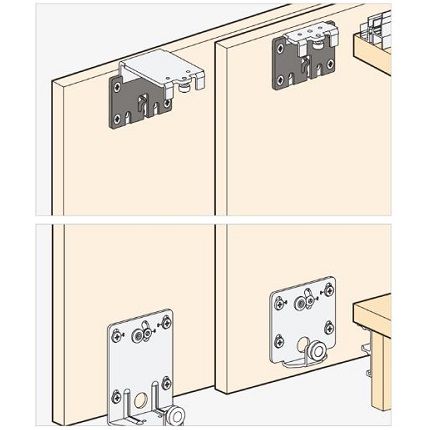

    Application: For two or three wooden by-pass sliding doors, overlay installed. It is a bottom running system with the upper guide channel surface mounted to the top of the cabinet. Equipped with a tool-less door mounting feature through a spring guide bolt.

    Door Dimensions:

    • Max Door Weight: Up to 77 lbs (35 kg)
    • Max Door Height: 86 - 3/8" (2200 mm)
    • Maximum Door Width: 47 - 1/8" (1200 mm)
    • Door Thickness: 3/4” (19 mm)

    Height Adjustment: +3/16" / -1/6" (+4 / -2 mm)

    Recommended Door Overlay: 13/16" (20 mm)

    Supplied with:

    Hafele #405.91.224 (2 Doors) Includes:

    • 4 Running Gears for Inner Door
    • 4 Running Gears for Outer Door
    • 4 Mounting Brackets
    • 4 Track Stoppers (2 with Retainers)
    • 4 Clip Retainers
    • 1 Buffer
    • 1 Set of Mounting Screws

    Hafele #405.91.232 (3 Doors) Includes:

    • 8 Running Gears for Inner Door
    • 8 Running Gears for Outer Door
    • 6 Mounting Brackets
    • 4 Track Stoppers (3 with Retainers)
    • 4 Clip Retainers
    • 5 Buffers
    • 1 Set of Mounting Screws

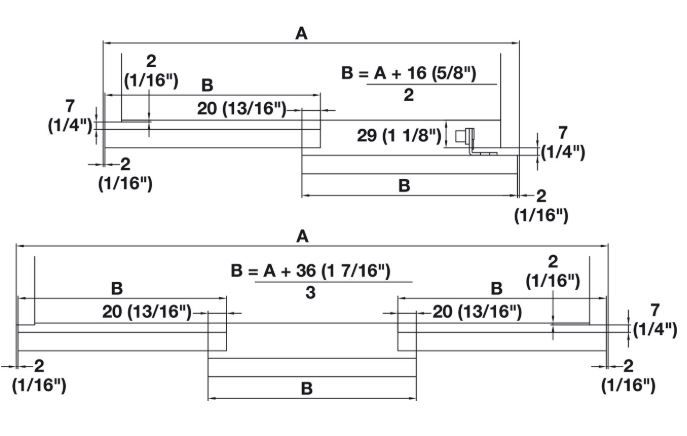

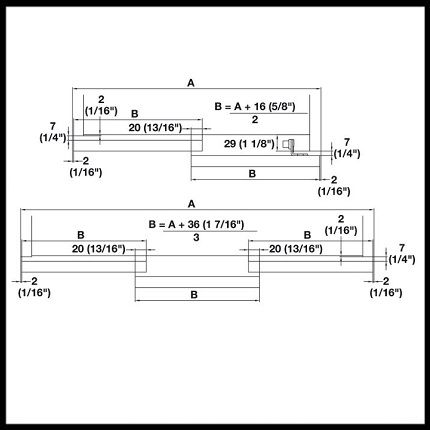

    Additional Required Products: The following products are required. Please order separately.

    • Hafele #405.52.026: Double Upper Guide Track
    • Hafele #406.31.902: Double Lower Running Track
    • Hafele #406.31.912: Cover profile
    • Hafele #405.93.020: Center door stopper (required only on 3 door application)

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view the Hafele EKU Combino 20H Forslide System, 44 LB Doors
