Hafele EKU Frontino 20 H OL Forslide Coplanar Door System, For Upper Cabinets, 44 Lb Door

HAWA Frontino 20 H for Upper Cabinets
Hafele

Hafele Frontino 20 H OL Forslide Hardware System is designed for upper by-pass cabinet doors. Coplanar doors slide smoothly, and sit flush when in a closed position. This product features a two way door adjustment and pre-mounted running system which allows for minimal installation time. Can accommodate doors up to 44 LB, with a height up to 39-3/8".

PRICED PER SET

See tabs below for additional information
    • SKU
      HF406.02.080
    • Market price:$2,352.08
      • save 20%
    • Starting price: Price: $1,881.66 per set
    Additional discounts will be applied when added to cart!


    Hafele Frontino 20 H OL Forslide Hardware System is designed for upper by-pass cabinet doors. Full set included.

    Click here to view the Hafele Frontino 20 H OL Forslide Catalog.

    Application: For upper cabinet doors.

    Door Dimensions:

    • Max Door Weight: 44 lbs. (20 kg)
    • Max Door Thickness: 3/4" - 1" (19 - 25 mm)
    • Max Door Height: 39- 3/8" (1000 mm)

    Internal Cabinet Width: Choose from the dropdown above.

    Features:

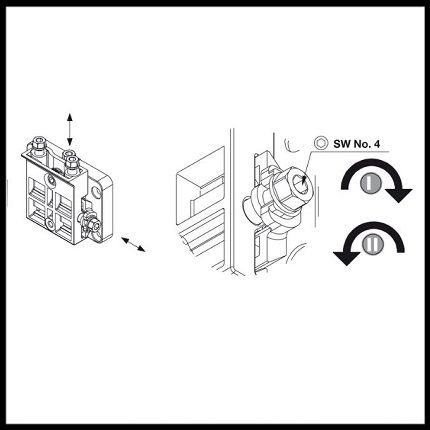

    • Two-way door adjustment
    • Pre-mounted running system allows for minimal installation time
    • Integrated soft opening and soft closing to prevent door slamming
    • Doors slide smoothly and sits flush when in a closed position

    Full set included, no additional part necessary.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view Hafele Bottom Single Running Track

      • SKU
        HF406.02.080
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      406.02.080, 406.02.081, 406.02.082, 406.02.083, 406.02.084, 406.02.085
    • Internal Cabinet Width
      47-1/4"- 55-1/16" (1200-1399 mm), 55-1/8" - 62-15/16" (1400-1599 mm), 63" - 70-13/16" (1600-1799 mm), 70-7/8" - 78-11/16" (1800-1999 mm), 78-3/4" - 86-9/16" (2000-2199 mm)
