Hafele EKU Frontino 40 Coplanar Door, 2 Doors, 88 Lb Door

Hafele EKU Frontino 40 Coplanar Door
Hafele

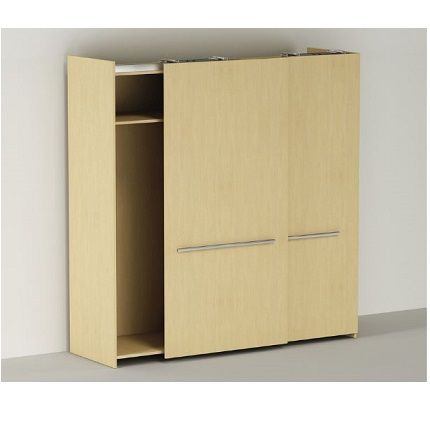

Hafele Frontino 40 Hardware System is designed for two by-pass cabinet doors with handles. Coplanar doors slide smoothly with a soft closing mechanism, and sit flush when in a closed position. Available in options of cabinet and door widths. Can accommodate doors up to 88 LB, with a height up to 92- 15/16”.

Note: Additional tracks and optional hardware is needed to complete the set. See tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF406.02.032
    • Market price:$3,110.62
      • save 20%
    • Starting price: Price: $2,488.50 per set
    Additional discounts will be applied when added to cart!


    Hafele Frontino 40 Hardware System is designed for two by-pass cabinet doors with handles. Click here to view the Hafele Frontino 40 Catalog.

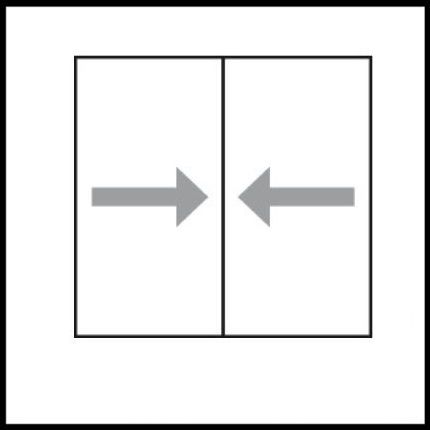

    Application: For 2 sliding doors

    Door Dimensions:

    • Max Door Weight: 88 lbs. (40 kg)
    • Max Door Thickness: 3/4" (19 mm)
    • Max Door Height: 92 - 15/16" (2360 mm)
    • Maximum Handle Height: 1 - 3/16” (30 mm)

    Cabinet Width: Choose from the dropdown above.

    SKU:        Cabinet Width:Door Width:
    406.02.03247-1/4" - 70-13/16" (1200-1799 mm)23-3/8" x 35 -3/16" (594 - 893 mm)
    406.02.03370-7/8" - 86-9/16" (1800–2199 mm)35-3/16" - 43-1/16" (894 - 1093 mm)
    406.02.03486-5/8" - 94-1/2" (2200-2400 mm)43-1/16" x 47" (1094-1194 mm)


    Features:

    • Doors slide smoothly and quietly and sit flush when closed
    • Integrated soft closing mechanism to prevent door slam
    • Both doors need to be the same size and identical dimensions for proper performance

    Additional Required Product: The following product is required. Please order separately.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view Hafele EKU Frontino 20 H Forslide Coplanar System.

      • SKU
        HF406.02.032
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      406.02.032, 406.02.033, 406.02.034
    • Length
      47-1/4" - 70-13/16" (1200-1799 mm), 70-7/8" - 86-9/16" (1800–2199 mm), 86-5/8" - 94-1/2" (2200-2400 mm)
    • About This Product
      • Door Type
        Double Door
      • Soft Close
        Included
      • System Type
        Bypass
    • Dimensions
      • Door Panel Weight
        Up to 88 lbs (40 kg)
