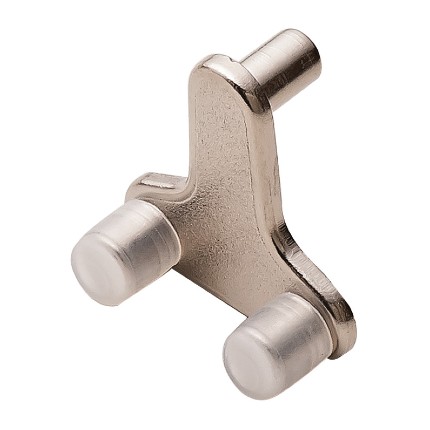

Hafele Ex-Cellent H®, Glass Shelf Support for 13/64" (5 mm) Diameter Hole, Zinc alloy

Hafele Ex-Cellent H®, Glass Shelf Support for 13/64" (5 mm) Diameter Hole, Zinc alloy, Nickel Plated
Hafele

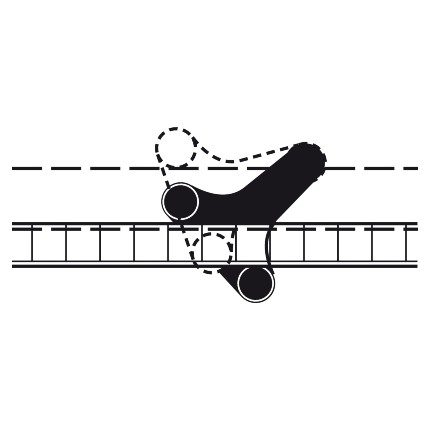

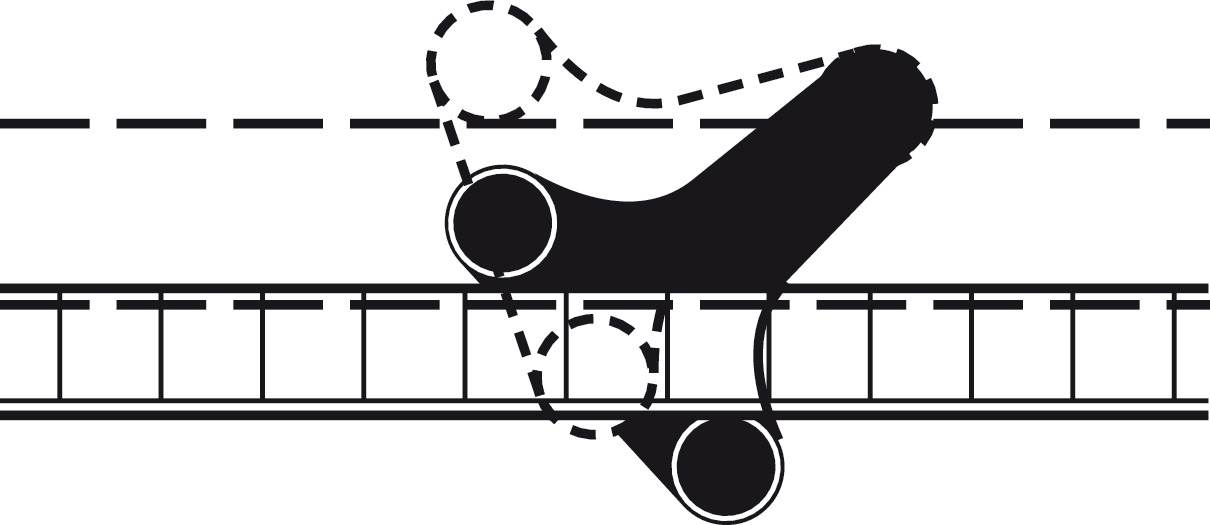

This Hafele Ex-Cellent H, Glass Shelf Support, can accommodate glass shelves with 15/64" - 25/64" (6-10 mm) thickness. It prevents the shelves from sliding and falling when being loaded and cleaned. It is suitable for use in furniture manufacture, shopfitting, and exhibitions.

SOLD PER PIECE

Minimum purchase quantity: 10 units
See tabs below for additional information
    • SKU
      HF-282.23.716
    • Market price:$2.04
      • save 20%
    • Starting price: Price: $1.63 per item


    This Hafele Ex-Cellent H, Shelf Clamp Support, can accommodate glass shelves with 15/64" - 25/64" (6-10 mm) thickness. It prevents the shelves from sliding and falling when being loaded and cleaned. It is suitable for use in furniture manufacture, shopfitting, and exhibitions.

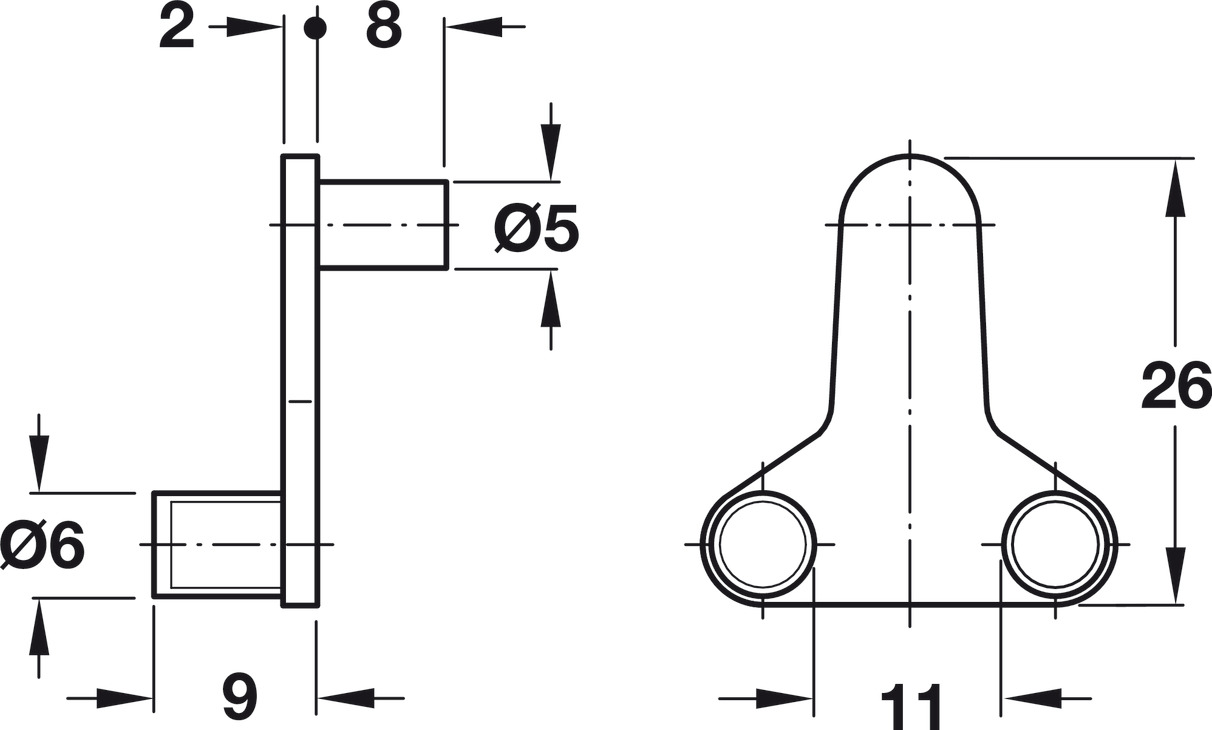

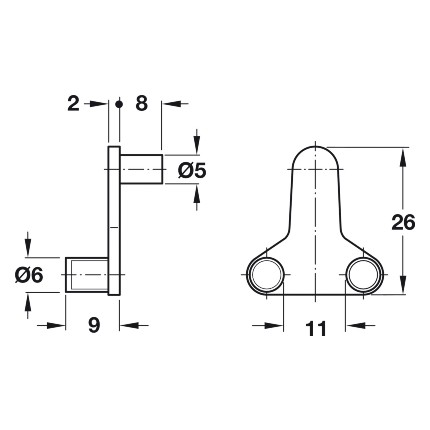

    Drill Hole Diameter : 13/64" (5 mm)

    Pin Length :  5/16" (8mm)

    Material:  Zinc Alloy

    Load bearing capacity per item :  9.4 kg (20.72 lbs.)

    Load bearing capacity with 4 shelf supports :  37.6 kg (83 lbs.)

    Note on load bearing capacity :

    • Load bearing capacity per item, i.e. load bearing capacity of 37.6 kg (83 lbs.) when using 4 shelf supports
      tested with 1.7 kg (3.75 lbs) plate for impact test in compliance with DIN EN 16337:2013-08

    SOLD PER PIECE

    Click here to view our Hafele Ex-Cellent H®, Shelf Clamp Support for 13/64" (5 mm) Diameter Hole, Zinc alloy

      • SKU
        HF-282.23.716
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      282.23.716
    • Finishes
      • Finish
        Nickel Plated






    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    It usually ships in 5 - 7 business days.
    Expediting options are available, please reach out to us for information.
    • Domestic Shipping Fees - (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product can be returned with a restocking fee. The fee is $20.00 for all orders ranging between $50.00 - $100.00, all orders  that are over $100 have a minimum of 20% restocking fee.
      • Item must be in new, resalable condition.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
