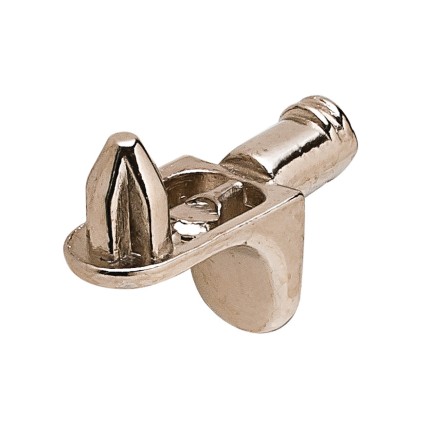

Hafele Shelf Support, with Shelf Fixing Plug, for 13/64" Diameter Hole, Nickel Plated

Hafele Shelf Support, with Shelf Fixing Plug, for 13/64" (5 mm) Diameter Hole, Nickel Plated
Hafele

Hafele Shelf Support, with Shelf Fixing Plug is used for interlocking shelves in board material. It's ribs anchor themselves in the system holes due to pressure from the shelf, which is an important feature for areas prone to earthquakes.

SOLD PER PIECE

Minimum purchase quantity: 67 units
See tabs below for additional information
    • SKU
      HF-282.24.720
    • Market price:$0.19
      • save 21%
    • Starting price: Price: $0.15 per item


    Hafele Shelf Support, with Shelf Fixing Plug is used for interlocking shelves in board material. It's ribs anchor themselves in the system holes due to pressure from the shelf, which is an important feature for areas prone to earthquakes.

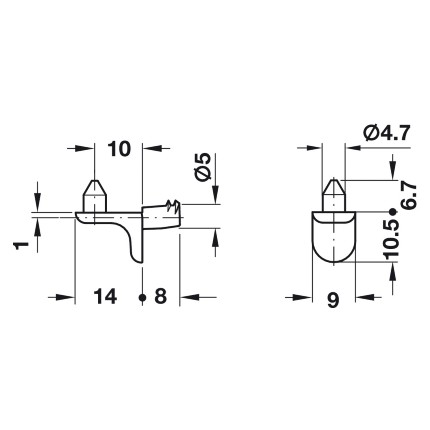

    Drill Hole Diameter : 13/64" (5 mm)

    Distance fixing lug : 25/64" (10 mm)

    Support Size : 3/64" (1 mm)

    Pin Length : 5/16" (8 mm)

    Material:  Zinc Alloy

    Load bearing capacity per item :  15.6  kg (34.39 lbs.)

    Load bearing capacity with 4 shelf supports :  62.4  kg (137.57 lbs.)

    Note on load bearing capacity:

    • Load bearing capacity per item, i.e. load bearing capacity of 12.4 kg (27.34 lbs.) when using 4 shelf supports
           tested with 1.7 kg (3.75 lbs.) plate for impact test in compliance with DIN EN 16337:2013-08


    SOLD PER PIECE

    Click here to view our Hafele Shelf Support, for 13/64" (5 mm) Diameter Hole, Plastic with Steel Pin

      • SKU
        HF-282.24.720
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      282.24.720
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • Compliance Details
        DIN EN 1727:1998-06
