Hafele Shelf Support, with Transparent Rubber Pad, Zinc, Nickel Plated

Hafele Shelf Support, with Transparent Rubber Pad, Zinc, Nickel Plated
Hafele

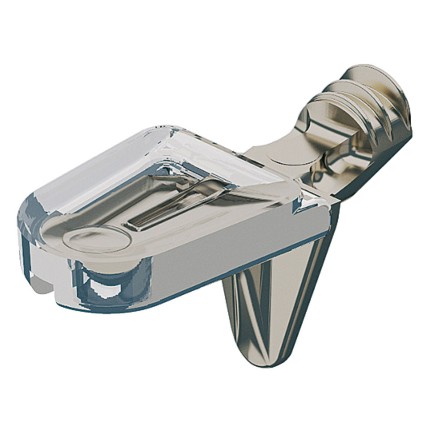

This shelf support from Hafele, with its patented design, the 3 Wedged Ribs assures minimum lowering of the shelf under heavy weight. It is installed by plugging it into a 13/64" (5 mm) diameter hole.

SOLD PER PIECE

Minimum purchase quantity: 24 units
See tabs below for additional information
    • SKU
      HF-282.24.733
    • Market price:$0.59
      • save 20%
    • Starting price: Price: $0.47 per item


    This shelf support from Hafele, with its patented design, the 3 Wedged Ribs assures minimum lowering of the shelf under heavy weight. It is installed by plugging it into a 13/64" (5 mm) diameter hole.

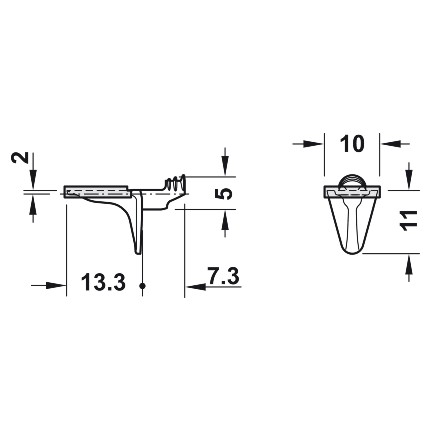

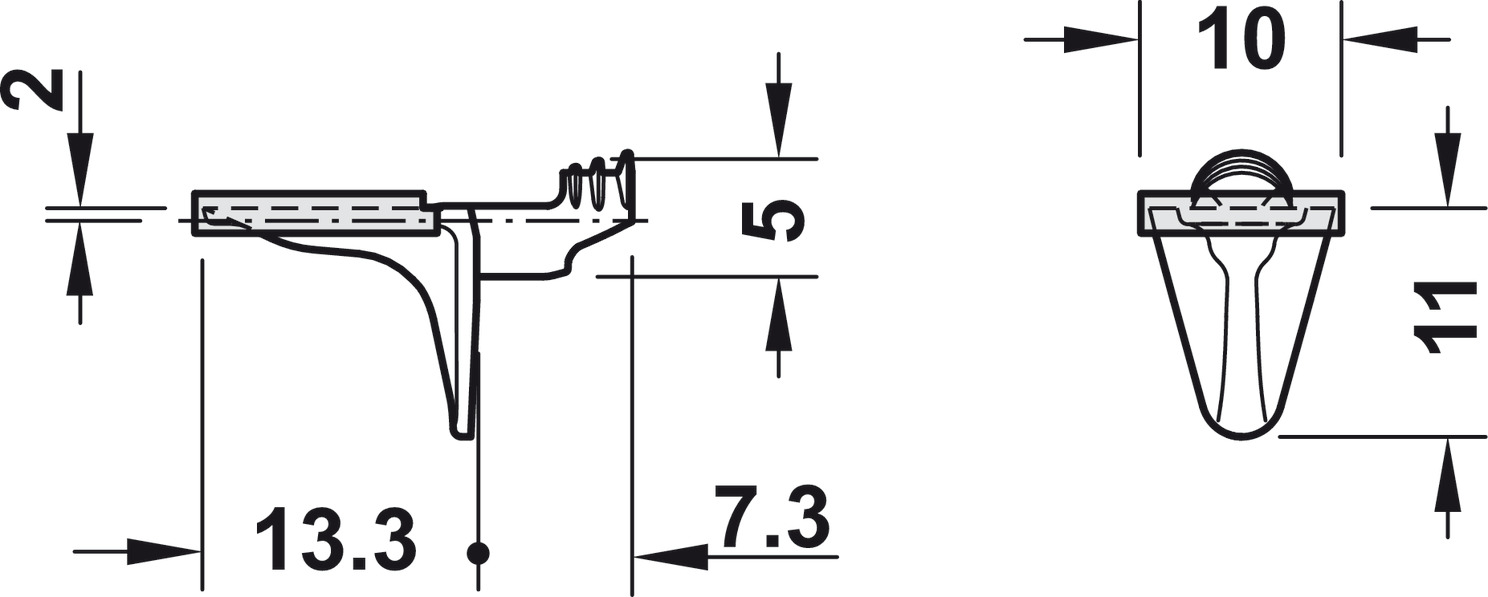

    Drill hole :          13/64" (5 mm)

    Support Size :   5/64" (2 mm)

    Pin Length :      9/32" (7.3 mm)

    Material :           Zinc alloy

    Area of Application : For wooden shelves

    Load bearing capacity per item : 6.25 kg (13 lbs)

    Load bearing capacity with 4 shelf supports : 25 kg (55 lbs)

    Note on load bearing capacity :

    • Load bearing capacity per item tested in accordance with DIN EN 16337:2013-08 with 1.7 (3.75 lbs) kg plate for impact test, i.e. 25 (55 lbs) kg load bearing capacity when using 4 shelf supports.

    SOLD PER PIECE

    Click here to view our Hafele Swedish-Type Shelf Support, 13/64" (5 mm) Diameter Hole, Steel, Nickel Plated

      • SKU
        HF-282.24.733
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      282.24.733
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • Compliance Details
        DIN EN 16337:2013-08





    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    It usually ships in 5 - 7 business days.
    Expediting options are available, please reach out to us for information.
    • Domestic Shipping Fees - (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product can be returned with a restocking fee. The fee is $20.00 for all orders ranging between $50.00 - $100.00, all orders  that are over $100 have a minimum of 20% restocking fee.
      • Item must be in new, resalable condition.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
