Hafele EKU Clipo 36 GPK/GPPK Inslide, Sliding Door Hardware Set, 79 LB Door

Hafele EKU Clipo 36 GPK/GPPK Inslide
Hafele

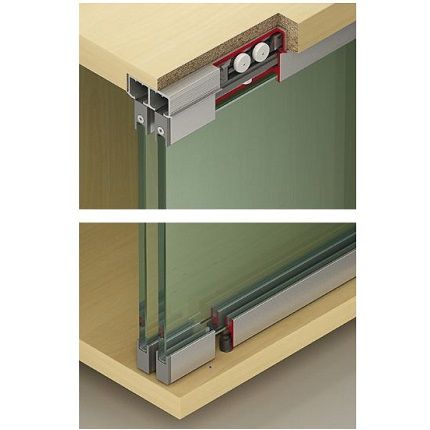

Hafele EKU Clipo 36 GPK/GPPK Inslide set is designed for a single by-pass glass door. Optional soft close mechanism can be inconspicuously integrated into the track so it is not visible and protected from damage. Available with optional bottom glass fixing profile. Can accommodate doors up to 79 LB, with a height up to 78-3/4".

Note: Additional tracks and optional hardware is needed to complete the set. See tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF405.02.410
    • Market price:$246.38
      • save 20%
    • Starting price: Price: $197.10 per set


    Click to view the Hafele EKU Clipo 36 GPK/GPPK Inslide Catalog.

    Application: For one glass cabinet door.

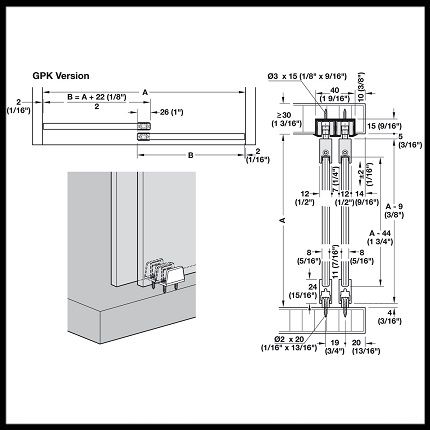

    GPK Version: Glass fixing profile is on the top of the door, floor guide located at the bottom.

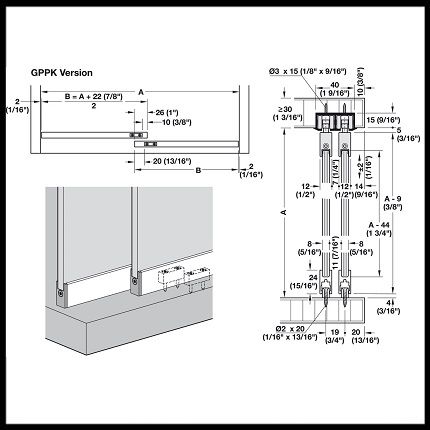

    GPPK Version: Glass fixing profile is on the top and bottom of the door, floor guide is concealed within the profile.

    Features:

    • Running gear includes four plastic rollers.
    • Optional soft close mechanism can be inconspicuously integrated into the track so its not visible and is protected from damage.
    • No guide rails in the bottom of the cabinet.

    Additional Required Products:

    • Hafele #405.03.20- Glass fixing profile
    • Hafele #405.00.62- Upper track, pre-drilled
    • Hafele #405.02.62- Double upper track, pre-drilled

    Additional Optional Products:

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view or Full Warranty Policy.

    Click here to view this Hafele Flush Pull, For Sliding Glass Doors

      • SKU
        HF405.02.410
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      405.02.410, 405.02.411
    • About This Product
      • Door Type
        Single Door
      • Door Material
        Glass Doors
      • Soft Close
        Optional
      • Door Mount
        Surface Mount
      • System Type
        Single Sliding

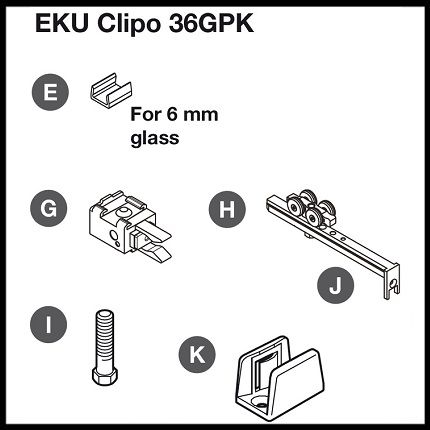

      • Included Parts
        GPK Version: (Top)
        Running Gears (2 ea.)
        Track Stoppers (2 ea.)
        Glass Centering Piece (2 ea.)
        Guide Spacer (1 ea.)
        GPPK Version: (Top and Bottom)
        Running Gears (2 ea.)
        Track Stoppers (2 ea.)
        Glass Centering Piece (8 ea.)
        Cover Caps for Bottom Glass Fixing Profile (3 ea.)
        Guide (1 ea.)
      • Frame Profile
        Top (GPK), Top and Bottom (GPPK)
    • Dimensions
      • Height Adjustment
        1/16" (2 mm)
      • Door Panel Weight
        Up to 79 lbs (36 kg)
      • Door Width
        39-3/8" (1000 mm)
      • Door Thickness
        1/4" - 5/16" (6-8 mm)
      • Door Height
        78-3/4" (2000 mm)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
