Hafele Slido D-Line11 50C/80C/120C, Sliding Door Hardware, with Axle Bearing

Hafele Slido D-Line11 50C/80C/120C, Sliding Door Hardware, Without Running Track
Hafele

A coordinated modular system for glass or wooden doors, Slido D-Line11 with Axle Bearing from Hafele supports a range of weight classes and applications. This hardware provides versatility in design with a uniform rail and accessory system, allowing for synchronized opening, stacking, and wall or pocket mounting as well as ceiling mounting. Even with repeated usage, the latest generation of draw-in damping with fluid technology and the optional push-to-open feature guarantees simple, comfortable, and gentle operation.

Please note this item requires additional products see links below:

SOLD PER SET

See tabs below for additional information
    • SKU
      HF940.42.076
    • Market price:$118.96
      • save 20%
    • Starting price: Price: $95.17 per set


    A coordinated modular system for glass or wooden doors, Slido D-Line11 with Axle Bearing from Hafele supports a range of weight classes and applications. This hardware provides versatility in design with a uniform rail and accessory system, allowing for synchronized opening, stacking, and wall or pocket mounting as well as ceiling mounting. Even with repeated usage, the latest generation of draw-in damping with fluid technology and the optional push-to-open feature guarantees simple, comfortable, and gentle operation.

    Features:

    • For 1 and 2 sliding wood doors
    • Door weight: <50/80/120 kg (<110/176/264 lbs.)
    • Height adjustment: ±4 mm (±5/32")
    • Suspension with recessed flange clip (without tools), wall mounting and ceiling installation
    • Soft and self-closing mechanism:
      • Low opening force – easy and convenient operation
      • Tested with increased speed up to 0.5 m/s
      • Can be retrofitted or replaced at any time
    • Shock absorber:
      • Closing speed with shock absorber tested up to 0.4 m/s

    Components:

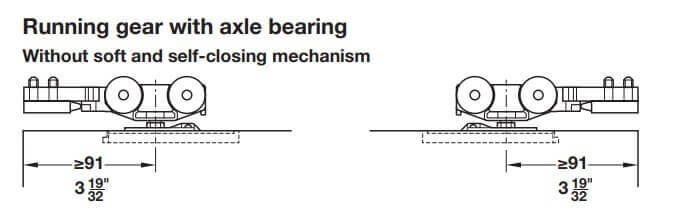

    • 2 running gears
    • 1 rattle-free floor guide
    • 2 track stoppers with retaining spring

    Required Products:

    SOLD PER SET

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.


      • SKU
        HF940.42.076
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      940.42.076; 940.83.014; 941.02.046
    • About This Product
      • Series
        Hafele SLIDO
      • Door Material
        Wood Doors
      • Soft Close
        Included
      • Mounting Type
        Overhead Mount
      • System Type
        Single Sliding
    • Dimensions
      • Door Panel Weight
        110 lbs (49.9 kg), 176 lbs (79.83 kg), 264 lbs (119.75 kg)
      • Door Width
        ≥19-11/16" (500 mm)
      • Door Thickness
        1-7/64" - 1-49/64" (28 – 45 mm)
