Hafele SLIDO D-Line41 80X Sliding Door Hardware Set

Hafele SLIDO D-Line41 80X Set, Sliding Door Fitting
Hafele

One of the smoothest architectural sliding door systems on the market, the Slido D-Line41 from Hafele is a superb choice in terms of both functionality and beauty. Featuring invisible running technology built into the door, this hardware is straightforward to use and requires very little opening force. The Slido D-Line41 system, which can support up to 176 lbs (79.83 kg), is perfect for both commercial and domestic applications, even in busy places.

Please note this item requires additional products see links below:


SOLD PER SET

See tabs below for additional information
    • SKU
      HF940.42.069
    • Market price:$338.23
      • save 20%
    • Starting price: Price: $270.58 per set


    One of the smoothest architectural sliding door systems on the market, the Slido D-Line41 from Hafele is a superb choice in terms of both functionality and beauty. Featuring invisible running technology built into the door, this hardware is straightforward to use and requires very little opening force. The Slido D-Line41 system, which can support up to 176 lbs (79.83 kg), is perfect for both commercial and domestic applications, even in busy places.

    Features:

    • For single or bi-parting sliding doors

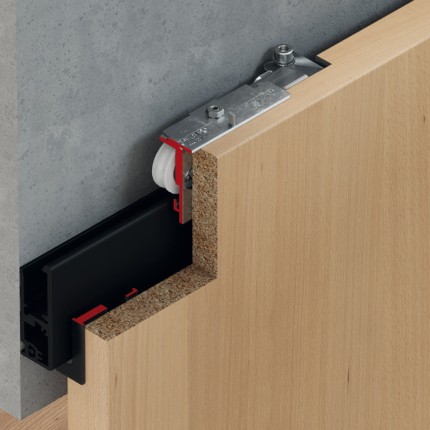

    • Invisible running technology integrated into the door

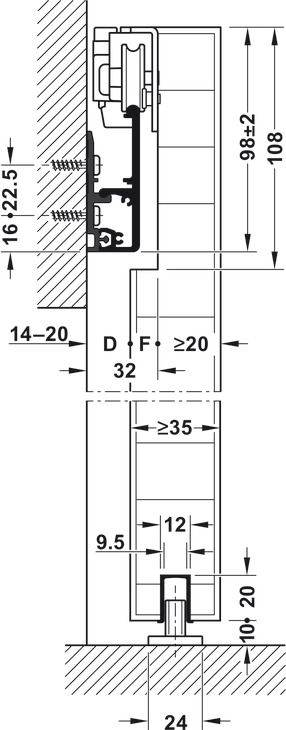

    • Wall mounted with a wall clearance between 9/16"–23/32" (14–20mm)
    • Door weight: max. 176 lbs. (80 kg)
    • Height adjustable: ±3/32" (±2 mm)
    • Soft close mechanism:
      • Low opening force; easy and comfortable operation
      • Tested up to a closing speed of 0.6 m/sec (≈2 feet/sec)
      • Exchangeable at any time

    Supplied With:

    • 2 running gears
    • 2 soft close mechanisms with integrated door stop
    • 2 cover caps for door, sliver colored
    • 2 cover caps for door, black
    • 2 cover caps for running track, sliver colored
    • 2 cover caps for running track, black

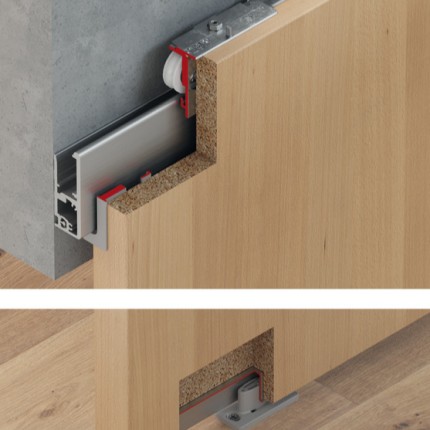

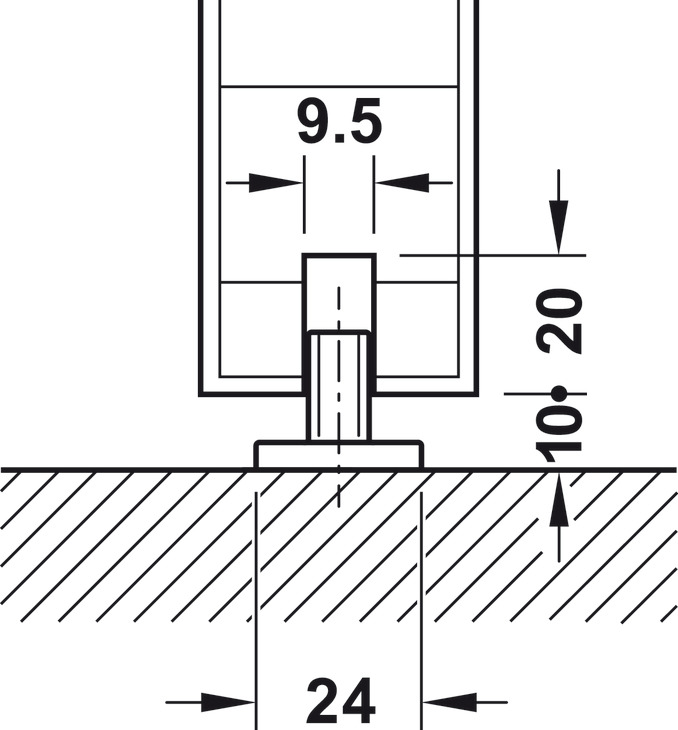

    • 1 rattle-free floor guide
    • 12 mounting clips for running track and fascia

    Required Products:

    SOLD PER SET

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

      • SKU
        HF940.42.069
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      940.42.069
    • About This Product
      • Series
        Hafele SLIDO
      • Mounting Type
        Sidewall Mount
    • Dimensions
      • Door Panel Weight
        176.00 lb (79.8323 kg)
      • Door Width
        ≥23-5/8" (600mm)
      • Height Clearance
        Height ± 5/64" (2 mm)
