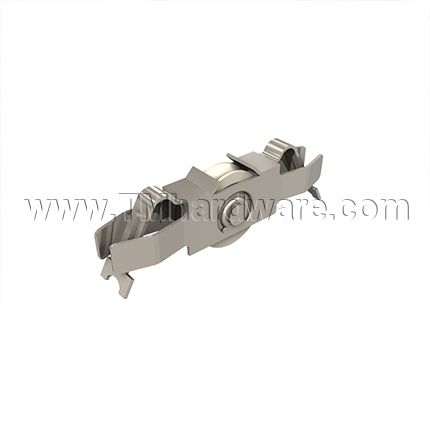

Hafele Bottom Running Gear, Slido Design 25 IF G, Infront, 55 LB door

Name: Hafele Bottom Running Gear, Slido Design 25 IF G, Infront, 55 LB door
Brand: Hafele
SKU: HF415.13.104
Price: 7.94 USD
Availability: InStock

This item has been discontinued - for similar item see our Hafele Slido F-Line14 25A, Running Gear, Infront, for Sliding In and Tightening

See tabs below for additional information

Hafele Bottom Running Gear is a required component for various Slido Classic Sliding Glass Door Sets. Click here to view the Slido Design 25 IF Set Catalog.

Application: Bottom running doors

Dimensions:

Max Door Weight: 55 lb (25 kg)
Door Height: 55 - 1/8" (1400 mm)
Door Width: 23 - 1/4" (600 mm)
Glass Thickness: 1/4" (6 mm)

Running Gear:

Bottom running, 1 roller
Guided by: Plastic ball bearing mounted roller

Material: Steel

Finish/Color: Galvanized and white

Required Set Components:

Hafele #415.13.060- Installation tool for running gear
Hafele #415.12.925- Glass profile, bottom
Hafele #415.13.612- U-shaped glazing gasket for glass door
Hafele #415.10.925- Double upper guide track
Hafele #415.11.925- Double bottom running track
Hafele #415.13.050- Gasket
End Cap- choice of:
- Hafele #415.13.02- End cap
- Hafele #415.13.17- End cap with handle

Optional Components:

Hafele #415.08.972 (for use with Dialock EFL 41)
Hafele #416.13.932
Hafele #233.02.420

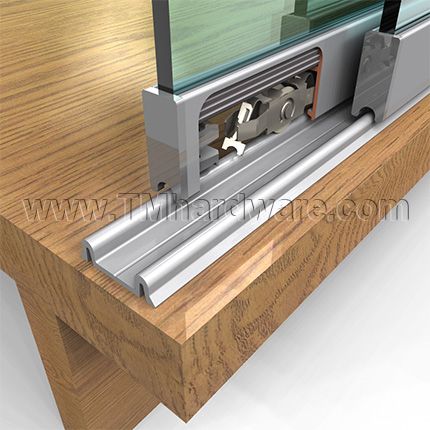

Installation: Running gears are inserted into runner housing profile using a slide-in system, without glass preparation.

How to Order: 4 pieces required for a 2 door application.

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to view the Hafele EKU Frontino 40 Additional Tracks

- SKU
  HF415.13.104
QuickShip
No
Manufacturer
Hafele
MPN
415.13.104

Click to View or Print Hafele Bottom Running Gear Installation Instructions.
