Hafele Slido Design 80-M Hardware and Track, For Glass Doors up to 176 Lbs

Hafele Slido Design 80-M Hardware and Track, For Glass Doors up to 176 Lbs
Hafele

Hafele Slido Design 80-M sliding hardware and track for wall mounting on glass doors up to 176 lbs. Track is fully concealed and can be face fixed or recessed into door to create a “floating door leaf" effect. This set includes a soft and self-closing mechanism to ensure a smooth open and smooth close without slamming. Choice of track lengths and door thickness available, see dropdown below.

See full product details and specs in the tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF940.59.015
    • Market price:$559.00
      • save 15%
    • Starting price: Price: $475.15 per set


    Hafele Slido Design 80-M Wall Mounted Sliding Door Hardware and Track for doors up to 176 lbs. Hardware is integrated into the door to create a "floating door leaf" effect.

    Components:

    • Set includes all hardware for one door
    • (1 ea.) Running Track
    • (1 ea.) Running Gear
    • (9 ea.) Spacer Plates (3 x 1 mm, 3 x 2 mm and 3 x 3 mm)
    • (2 ea.) Soft and Self-Closing Mechanisms
    • (2 ea.) Guide Rollers, bottom
    • (1 ea.) Set of End Caps
    • (2 ea.) Spacers
    • (1 ea.) Panel for Running Track

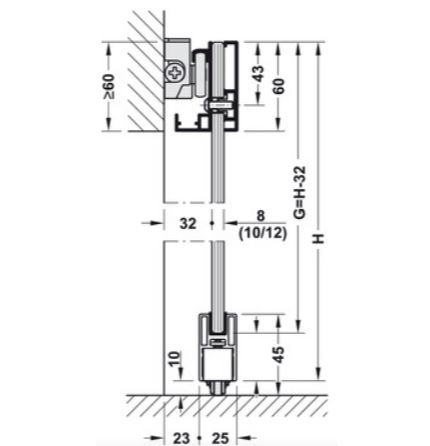

    Design: Slido Design set features a concealed running system with track integrated into door. Door opens fully to provide full passage width access.

    Door Weight: For doors up to 176 lbs (80 kg)

    Door Height: Adjustable 3/32" (+/-2 mm)

    Door Width: For doors 31-1/2" - 70-7/8" wide (800 - 1800 mm)

    Door Thickness: For doors .39” (10 mm) or .47” thick (12 mm)

    Track Length: Choice of 43-5/16" (1100 mm) and 70-7/8" (1800 mm) track lengths

    Applications: For tempered safety glass doors. Can be used in applications with hard flooring (laminate, PVC, tiles) or soft flooring (carpet, cork - bottom guide required and sold separately.) For wood door applications, see our Hafele Slido Design 80-M Hardware Set for Wood Doors.

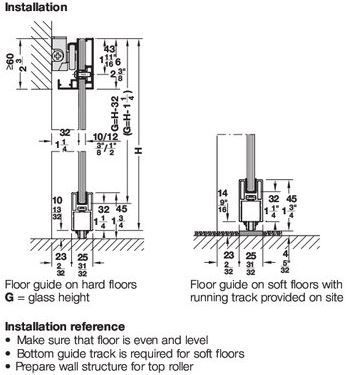

    Floor Guide: Provided with fully concealed floor guide. A 25/64" (10 mm) gap between the bottom of the door leaf and floor covering is visible.

    Soft Close: Soft and self-closing mechanism included in standard set.

    Mounting: Wall mounted. Floor must be even and leveled. Distance of door to wall 5/32" (+4 mm) adjustment on both sides to compensate for uneven walls.

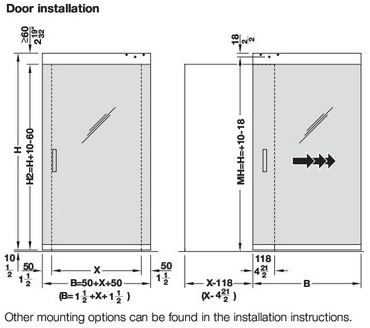

    Installation: See our Hafele Slido Design Installation Instructions.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See our Hafele Slido Classic 240-O Hardware Set.

      • SKU
        HF940.59.015
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      940.59.005; 940.59.007; 940.59.015
    • Length
      43-5/16" (1100 mm) Length, 70-7/8" (1800 mm) Length
    • Door Thickness
      .39" (10 mm) Thickness, .47" (12 mm) Thickness

    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    It usually ships in 5 - 7 business days.
    Expediting options are available, please reach out to us for information.
    • Domestic Shipping Fees - (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product can be returned with a restocking fee. The fee is $20.00 for all orders ranging between $50.00 - $100.00, all orders  that are over $100 have a minimum of 20% restocking fee.
      • Item must be in new, resalable condition.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
