Hafele SLIDO D-Line 43 80-M Concealed Barn Door Hardware, Wood Doors up to 176 Lbs.

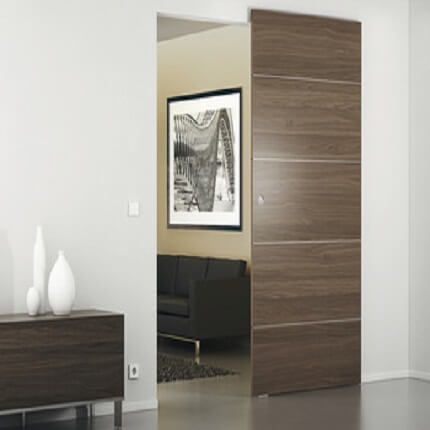

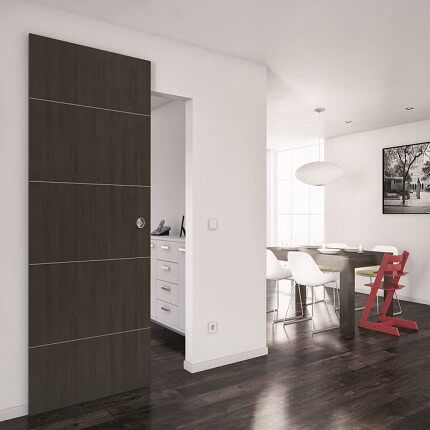

Concealed Barn Door installed on doorway
Hafele

Hafele Slido Design 80-M for wall mounting on wood doors up to 176 lbs (80 kg). Track is fully concealed and can be face fixed or recessed into door to create a “floating door leaf effect.” This set includes soft and self-closing mechanism to ensure a smooth open and smooth close without slamming. Includes sliding hardware and track; track is available in two lengths, see dropdown below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF940.59.008
    • Market price:$854.71
      • save 20%
    • Starting price: Price: $683.77 per set


    Hafele Slido Design 80-M Wall Mounted Sliding Door Hardware and Track for doors up to 176 lbs. Hardware is integrated into the door to create a 'floating door' effect.

    Components: Set includes all hardware for one sliding door.

    Design: Slido Design set features a concealed running system with track integrated into door. Door opens fully to provide full passage width access.

    Door Height: Adjustable 3/32" (+/-2 mm)

    Door Width: For doors 31-1/2" - 70-7/8" wide (800 - 1800 mm)

    Applications: For wood doors. Can be used in applications with hard flooring (laminate, PVC, tiles) or soft flooring (carpet, cork - bottom guide required and sold separately.) For glass door applications, see our Hafele Slido Design 80-M Hardware Set for Glass Doors.

    Floor Guide: Provided with fully concealed floor guide. A 25/64" (10 mm) gap between the bottom of the door leaf and floor covering is visible.

    Mounting: Wall mounted. Floor must be even and leveled. Distance of door to wall 5/32" (+4 mm) adjustment on both sides to compensate for uneven walls.

    Installation: See our Hafele Slido Design Installation Instructions.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See our Hafele Slido Classic 240-O, Sliding Doors Hardware Set.

      • SKU
        HF940.59.008
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      940.59.008; 940.59.009
    • About This Product
      • Series
        Hafele D Line 43 (Concealed Barn)
      • Door Material
        Wood Doors
      • Soft Close
        Single Soft Close
      • Mounting Type
        Sidewall Mount
      • Door Mount
        Surface Mount, Recessed
      • Track Type
        Profile Type Track
      • System Type
        Single Sliding
      • Sliding Series
        Slido Design
      • Included Parts
        Running track (1ea.)
        Running gear (1 ea.)
        Soft and self closing mechanisms (2 ea.)
        Guide track (1 ea.)
        Floor guide (1 ea.)
        Set of guide rollers (1 ea.)
        Set of end caps (1 ea.)
        Spacers (2 ea.)
        Hex keys (2 ea.)
        Open-ended spanner (1 ea.)
        Floor mounted door stop - optional (1 ea.)
    • Dimensions
      • Door Panel Weight
        175 Lb Doors
      • Length
        43 5/16" (1100 mm) Length, 70 7/8" (1800 mm) Length
    • Special Features
      • Special Features
        Self Closing
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
