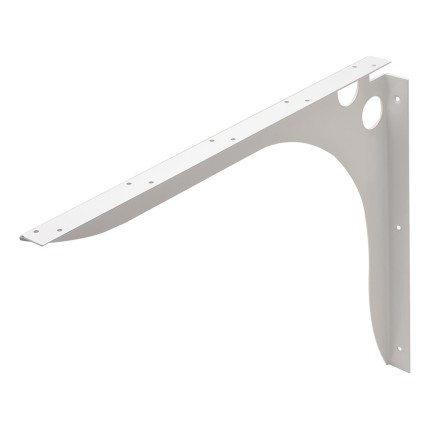

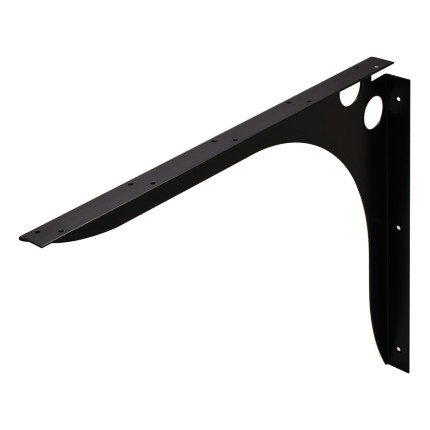

Hafele SpeedBrace Work Surface Bracket, Rigid, Centers, 18" x 1-1/2" x 15" (LxWxH)

Hafele SpeedBrace Work Surface Blacket, Rigid, Centers, 457 mm x 38 mm x 381 mm (LxWxH), Black
Hafele

SpeedBrace Work Surface Bracket from Hafele is designed for heavy duty jobs. This bracket is made from steel. It can carry for up to 1000 lbs. (453.59 kg) load capacity per pair when mounted on 16" (406.4mm) centers. It also feature 2 cut outs for wire management.

SOLD PER PIECE

See tabs below for additional information
    • SKU
      HF287.74.304
    • Market price:$62.86
      • save 20%
    • Starting price: Price: $50.29 per item


    SpeedBrace Work Surface Bracket from Hafele is designed for heavy duty jobs. This bracket is made from steel. It can carry for up to 1000 lbs. (453.59 kg) load capacity per pair when mounted on 16" (406.4mm) centers. It also feature 2 cut outs for wire management.

    Features:

    • Load capacity: 1,000 lbs. (453.59 kg) per pair when mounted on 16" (406mm)centers
    • A 3/4" (19mm) x 1-1/2" (13mm) notching system for fast and easy alignment after installing a level wall cleat
    • Two different sized arm lengths, which allow for one brace to be used for two different sized countertops
    • Heavy-duty folded steel design for strength
    • Two conduit holes, which are designed for running power and communication cables independently
    • Countersunk screw holes allow screws to be mounted flush, recommended screw size is a #8 with a countersunk head

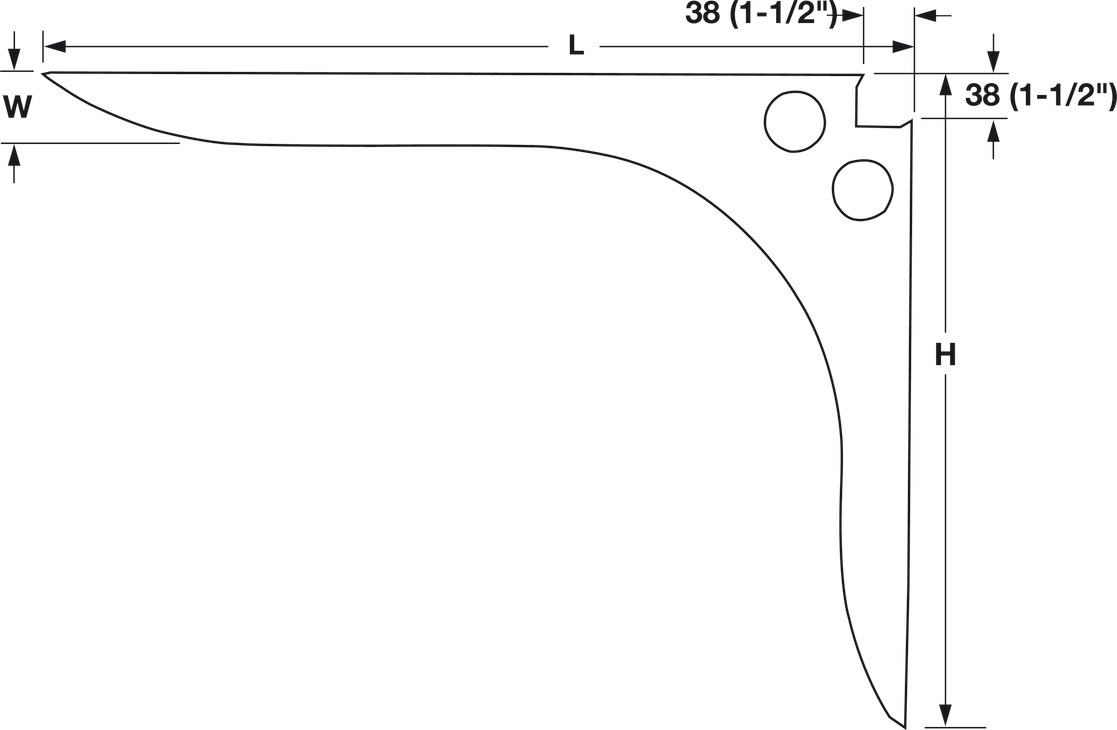

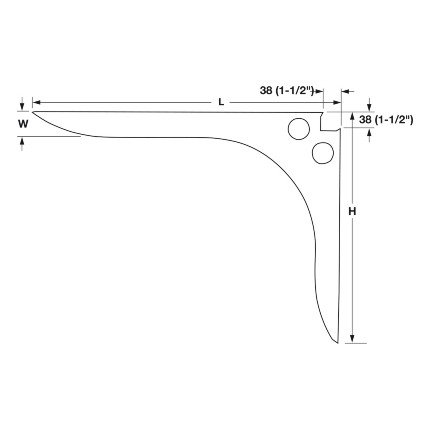

    Dimension:

    • Length : 18" (457mm)
    • Width : 1-1/2" (38mm)
    • Height : 15" (381mm)

    Material:

    • Steel

    NOTE: The specified load bearing capacity applies:

    • Only when used in pairs
    • With even load distribution (surface loads)
    • With proper and reliable mounting on the wall
    • The mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).

    Recommended Countertop Sizes:

    • 21" (533mm) x 28" (711mm) brace: 30"(762mm)-32"(813mm) tops
    • 28" (711mm) x 21" (533mm) brace: 22"(559mm)-24"(610mm) tops
    • 15" (381mm) x 18" (457mm) brace: 20"(508mm)-24"(610mm) tops
    • 18" (457mm) x 15" (381mm) brace: 16"(406mm)-20"(508mm) tops
    • 8" (203mm) x 12" (305mm) brace: 10"(254mm)-16"(406mm) tops

    SOLD PER PIECE

    Click here to view our Hafele SpeedBrace Work Surface Bracket, Rigid, Centers, 457 mm x 38 mm x 381 mm (LxWxH), Stainless Steel

      • SKU
        HF287.74.304
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      287.74.304, 287.74.704
    • Finishes
      • Finish
        Black, White
