Hager 2300 Series Tubular Lever

Hager 2300 Series Tubular Lever
Hager Companies

Hager 2300 Series Tubular Lever is designed for light duty residential interior applications such as multi-family housing. This product is non-handed (besides for 2317 function for JHN and WRN Levers), with no exposed mounting screws. Many functions, finishes and options available.

PRICED PER SET - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      HG2340_Joshua_U26D
    • Market price:$138.36
      • save 40%
    • Starting price: Price: $83.02 per item


    Hager 2300 Series Tubular Lever Key Features:

    Light Duty, Residential

    No Exposed Mounting Screws

    Handing: Non- Handed (besided for 2317 Function for JHN and WRN is Handed)

    Lever Styles:  Click on an image to view its product specs.

    CharlesJoshuaJohnstonLouisWarren
    Charles LeverJoshua LeverJohnston LeverLouis LeverWarren Lever


    Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside, select from options above.

    Available Finishes: Bright Brass; Satin Brass;  Antique Bronze Oiled; Bright Chromium Plated; Satin Chromium Plated (Finishes comply with BHMA codes. See Product Data Tab.)

    Exposed Trim:

    • Levers: Cast zinc
    • Rose: Wrought brass or stainless steel

    Rose Diameter: 2-1/2" diameter

    Door Thickness: Levers: 1-3/8"-1-3/4" Thick.

    Backset:

    • Standard: 2-3/4"
    • Optional: 2-3/8" (Can be ordered through our office at 845-388-1300)

    Latchbolt:

    • 7/16" throw-stainless steel
    • 1" x 2-1/4" faceplate.
    • Square and round corner faceplates come standard.

    Strikes: Square and round corner full lip strikes come standard.

    Options available through our office only:

    • Additional latchbolts and strikes

    Functions:

    • Non-Keyed Functions: 10-Passage, 17- Single Dummy, 27-Double Dummy, 40-Privacy
    • See Hager Knob and Lever Functions for more information

    Compliance Details:

    • BHMA Certified ANSI A156.2
    • ADA Compliant ANSI A117.1 Accessibility Code

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs tab for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    This product has a 5 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click here to view all our Hager 3200 Grade 2 Lock Series.

      • SKU
        HG2340_Joshua_U26D
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      3400
    • Lever
      Charles Lever, Louis Lever, Johnston Lever, Joshua Lever, Warren Lever
    • Function
      Passage, Single Dummy, Double Dummy, Privacy
    • Exterior Finish
      Antique Bronze Oiled (US10B), Satin Nickel (US15), Bright Chromium Plated (US26), Satin Chromium Plated (US26D)

    Click to Print Product Data Sheet

    Click to Print Charles Lever Product Dimensions

    Click to Print Johnston Lever Product Dimensions

    Click to Print Joshua Lever Product Dimensions

    Click to Print Louis Lever Product Dimensions

    Click to Print Warren Lever Product Dimensions

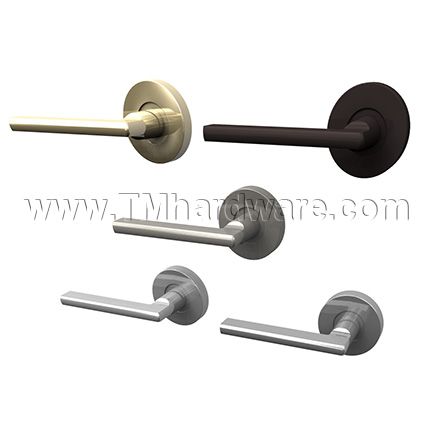

    Charles Lever:

    Charles Lever

    Johnston Lever:

    Johnston Lever

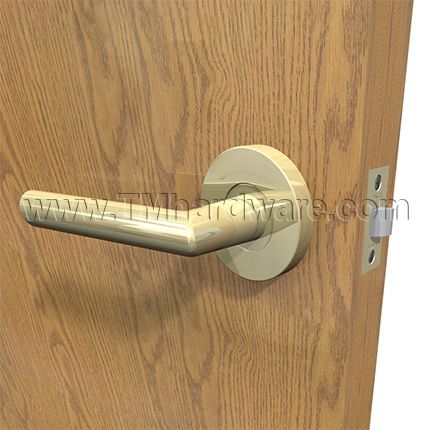

    Joshua Lever:

    Joshua Lever

    Louis Lever:

    Louis Lever

    Warren Lever:

    Warren Lever

    *All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Bright Brass-US3/605
    • Antique Bronze Oiled-US10B/613
    • Bright Chromium Plated-US26/625
    • Satin Chromium Plated-US26D/626

    *Locket complies with ANSI A156.2

    *UL/cUL listed for all functions up to 3 hours for "A" label single doors.

    *UL10C/UBC7-2 (1997) Positive Pressure Rated

    *UL10B Neutral Pressure Rated

    *ADA Compliant ANSI A117.1 Accessibility Code
