Hager 2500 Series Grade 2 Cylindrical Lever - Keyed, Privacy, Passage or Dummy Function

Hager 2500 Series Grade 2 Cylindrical Lever Key Features:

Standard Duty, Commercial, Grade 2

No Exposed Mounting Screws

Handing: Non- Handed

Lever Styles:  Click on an image to view its product specs.

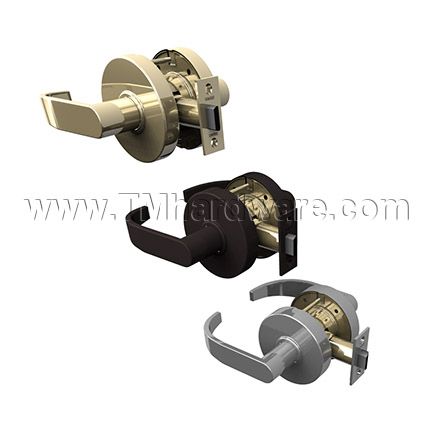

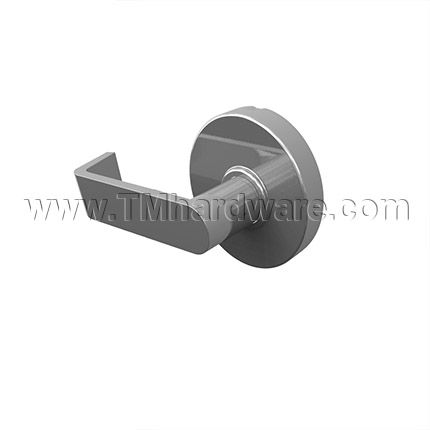

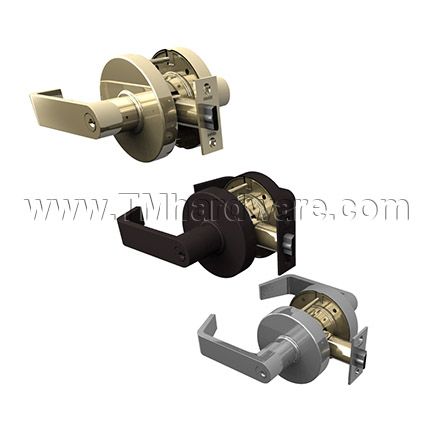

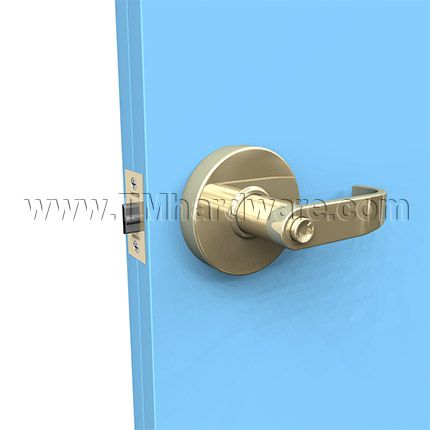

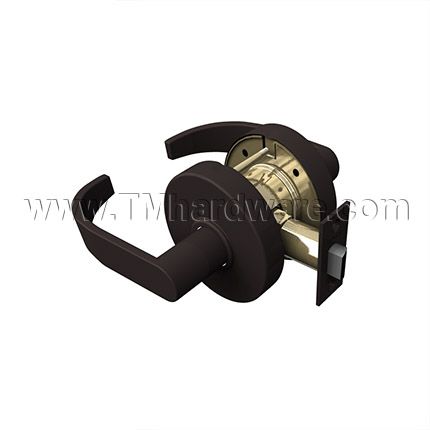

	Archer Lever			Withnell Lever

Available Finishes: Bright Brass; Antique Bronze Oiled;  Satin Chromium Plated (Finishes comply with BHMA codes. See Product Data Tab.)

Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside, select from options above

Exposed Trim:

• Levers: zinc based
• Rose: Wrought brass, bronze, or stainless steel

Rose Diameter: 3-11/32" diameter

Lock Chasis:

• Heavy gauge steel, zinc dichromated for corrosion resistance
• “Non-clutching” exterior lever on keyed functions
• Removable thru-bolts
•  Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty

Keys: Two operating keys supplied

Cylinders / Cores: Brass 6-pin, keyed different - C Keyway

Additional Cylinder Options:

• Drilled 6-Pin Keyed 5 pin
• Small Format Interchangeable Core (SFIC), Uncombinated or Combinated, brass 6 or 7 pin cores (sold separately)
• Small Format Interchangeable Core (SFIC)

Additional Keying Options:

• Keyed Alike
• MK-Master key - Master Keying Form must be filled out
• CMK-Construction master key
• SK-Customer specified keying
• "0" bitted cylinder
• "1" bitted cylinder

Additional Keyways: Available through our office (see figure below)

Door Thickness: 1-3/8" - 2" Thick.

Backset:

• Standard: 2-3/4"
• Optional: 2-3/8" (Can be purchased through our office at 845-388-1300)

Latchbolt:

• 1/2" throw-stainless steel
• 1-1/8” x 2-1/4” (29 mm x 57 mm) faceplate for 2-3/4” (70 mm) backset
• 1” x 2-1/4” (25 mm x 57 mm) faceplate for 2-3/8” (60 mm) backset
• Deadlocking latchbolt-prevents manipulation when door is closed; keyed functions and 25 functions only.

Strikes: 3935 ASA 1-1/4" x 4-7/8" strike.

Options available through our office only:

• Leadlined levers
• Tactile warning
• Additional latchbolts and strikes

Functions:

• Non-Keyed Functions: 10-Passage, 17-Single Dummy, 25-Exit, 27- Double Dummy, 40-Privacy
• Keyed Functions: 50-Office, 53-Entry, 70-Classroom, 80-Storeroom
   All Keyed Functions Include a clutching feature that allows the lever to freely rotate up or down while remaining locked.
• See Hager Knob and Lever Functions for more information

Standard Door Prep:

• Cylinder hole: 2-1/8" diameter (cross bore)
• Latch hole: 1" diameter (edge bore)

Compliance Details:

• BHMA Certified ANSI A156.2, Series 4000, Grade 2
• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors (for double door application, UL/cUL Listed when used with 3/4" latchbolt)
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs tab for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

This product has a one year guarantee against defects in workmanship and materials.
