Home > Hinges > Architectural Butt Hinges > Shop Hager Hinges > Slip-in Hinge > Hager BB1278, Ball Bearing Steel Slip-in Hinge for Aluminum Entrance, One Leaf Tapped

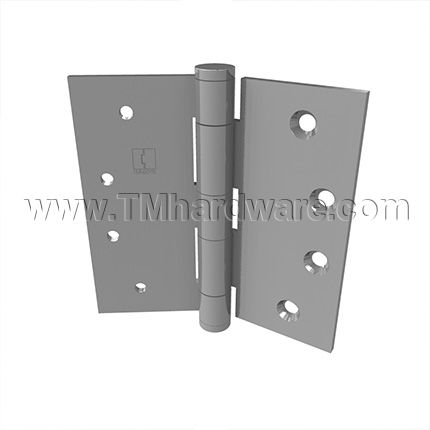

Hager BB1278, Ball Bearing Steel Slip-in Hinge for Aluminum Entrance, One Leaf Tapped

Hager BB1278, Ball Bearing Steel Slip-in Hinge for Aluminum Entrance, One Leaf Tapped
Hager BB1278, Ball Bearing, One Leaf Tapped, Steel, Aluminum Entrance Hinge in US10B Finish Hager BB1278, Ball Bearing, One Leaf Tapped, Steel, Aluminum Entrance Hinge in US10 Finish applied to door
0.0

Hager BB1278 Full Mortised Aluminum Entrance, ball bearing hinge with five knuckles and one leaf tapped. It is made of steel and comes with a non-rising removable steel pin with button tip and plug. Hager BB1278 is a handed hinge. Available in many sizes and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below.

Market price: $129.85
save 50%
Price: $64.93
Finish
Size
Handing
Qty
Save to wishlist
Made in USA
SKU HBB1278_LS_4
Shipping See Shipping Tab Below
Description

Hager BB1278 Key Features:

Application: Aluminum Entrance hinges are for use on aluminum doors with aluminum frames. They are applied by inserting the hinge leaves through a slot in the door or frame.

Tapped Leaves: One tapped leaf

Swaging: 3/16" swage

5 Knuckles

2 Ball Bearings - Recommended for use together with a door closer. Without door closing device use plain bearing hinge.

Pin: Non-rising removable pin with button tip and plug.

Handing: Left handed and right handed. Click on the link of How to Determine the Handing of a Door

Standard Weight for use with medium weight doors and doors requiring low frequency usage.

Base Material: Steel hinge with steel pin.

Available sizes: (chart)

Hinge Size

Gauge of

Metal

Hole Count

Screw Size

Inches mm Machine Wood

  4-1/2" x 4"

  114 x 102

  0.134

  8

  1/2 x 12-24

  1-1/4 x 12

  4-1/2" x 4-1/2"

  114 x 114

  0.134

  8

  1/2 x 12-24

  1-1/4 x 12



Available Finshes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

Compliance Details: May be used on listed and fire rated door openings. See Compliance Details tab for more information.

Installation Screws Provided Accordingly:

  • 4-1/2" x 4-1/2": All wood and all machine screws provided
  • 4-1/2" x 4": All wood and all machine screws provided
  • Additional screw packs can be provided if listed in order comments before completing purchase.

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs Tab for exact measurements.

This product has a lifetime guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.

For Plain Bearing Aluminum Entrance Hinges, see our Hager 1278, Ball Bearing Steel Slip-in Hinge for Aluminum Entrance, One Leaf Tapped.

Product Specs

Click to Print 4" Hinge Template

Click to Print 4-1/2" Hinge Template

4" Hinge Template. Select links above for additional templates.

Hager BB1278 Aluminum Entrance Hinge

Compliance Details

Hinge complies with ANSI A8512.

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard A156.18:

  • Luma Sheen Aluminum Paint-LS
  • Prime Coat-USP
  • Satin Brass-US4
  • Antique Bronze Oiled-US10B
  • Satin Chromium Plated-US26D.
Shipping / Returns
  • Ship Time:
    • This item is made to order and requires a lead time of 2-4 weeks.
    • If in stock, expedite options are available and will ship within 2-5 days. Please call to confirm stock and expediting options.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • These items are non-returnable.
    • We are commited to your satisfaction. As a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
