Hager BB1577, Ball Bearing, Brass or Stainless Steel, Slip-In Hinge for Aluminum Entrance, Both Leaves Tapped
Hager BB1577 Full Mortised Aluminum Entrance, ball bearing hinge with five knuckles and both leaves tapped. It comes in choice of Stainless Steel or Brass with a non-rising removable stainless steel pin with button tip and plug. Hager BB1577 is a handed hinge. Available in two sizes.
PRICED PER PIECE - See full product details and specs in the tabs below.
Hager BB1577 Full Mortised Aluminum Entrance, ball bearing hinge with five knuckles and both leaves tapped. It comes in choice of Stainless Steel or Brass with a non-rising removable stainless steel pin with button tip and plug.
Available sizes:
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
---|---|---|---|---|---|
Inches | mm | Machine | Wood | ||
4-1/2" x 4" | 114 x 102 | 0.134 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
4-1/2" x 4-1/2" | 114 x 114 | 0.134 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
Handing: Left handed and right handed. Click on the link of How to Determine the Handing of a Door
Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.
Custom finishes: Available through our office, for details and pricing please contact us or call us at 845-388-1300.
Priced per piece.

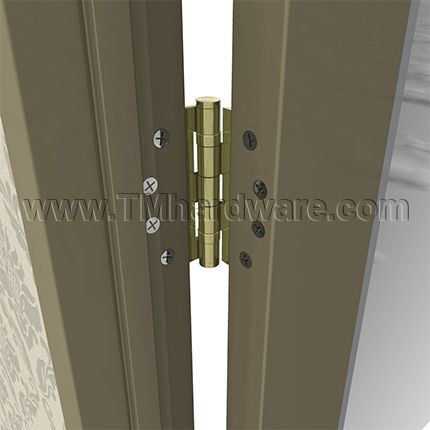

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs Tab for exact measurements.
This product has a lifetime guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
For Plain Bearing Aluminum Entrance Hinges, see our Hager 1577, Plain Bearing Brass or Stainless Steel Slip-in Hinge for Aluminum Entrance, Both Leaves Tapped.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNHBB1577
- Product Design
-
Hinge CategorySlip In Hinge, Full Mortised Hinge
-
Base MaterialBrass, Stainless Steel
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
Swaging5/16" Swage
-
- Dimensions
-
Hinge Size4-1/2" x 4", 4-1/2" x 4-1/2"
-
Hinge Thickness.134" Thick
-
- Installation
-
Door TypeAluminum Doors
-
Installation ScrewsInstallation Screws Provided Accordingly:
4-1/2" x 4-1/2": All wood and all machine screws provided
4-1/2" x 4": All wood and all machine screws provided
Additional screw packs can be provided if listed in order comments before completing purchase.
-
- Finishes
-
FinishOil Rubbed Bronze (US10B), Satin Chrome (US26D), Satin Stainless Steel (US32D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA2142, A5142, A156.18
-
WarrantyLifetime Limited Warranty
-
Click to Print 4" Hinge Template
Click to Print 4-1/2" Hinge Template
4" Hinge Template. Select links above for additional templates.
