Hawa Junior 160/B Sliding Door Hardware, up to 352 Lbs., Mortised, Top Hung System, Set
- Smooth, quiet operation
- Outstanding durability
- Rattle-Free bottom guide
- Minimal installation height

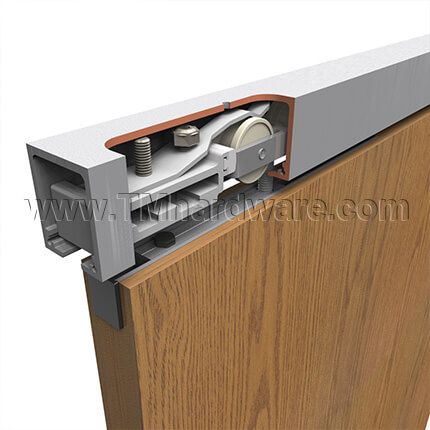

- Suspension with carrier profile
- Height adjustable
- Door stop with adjustable retention spring
- Use in conjuction with Pre-Drilled Upper Track (not included in set)
Note: For two bi-parting sliding doors, order 2 sets.
See full products details and specs in tabs below
PRICED PER SET
Track: Upper Track not included. Pre-drilled Upper Track sold separately.
Application: For 1 and 2 sliding wood doors. For 2 Sliding wood doors order 2 sets.
Mounting: Hardware mortised to door
Adjustable Options:
- Height adjustable
- Track stopper with adjustable retention spring
Features:
- Door Stop with adjustable retention spring
- Minimal installation height
- Quiet running action
Accessories: Additional Accessories can be purchased through our office.
- Guide rail
- Mortise locks for sliding doors
- Door Seals for sliding doors
Priced Per Set
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Click to view our Hawa Junior 160/A Sliding Door Hardware, up to 352 Lbs., Surface Mounted, Top Hung System
-
QuickShipNo
-
ManufacturerHafele
-
MPN941.60.002
- About This Product
-
Door TypeSingle Door
-
Door MaterialWood Doors
-
Door MountRecessed
-
System TypeBi-parting
-
Sliding SeriesHawa Junior 160/B
-

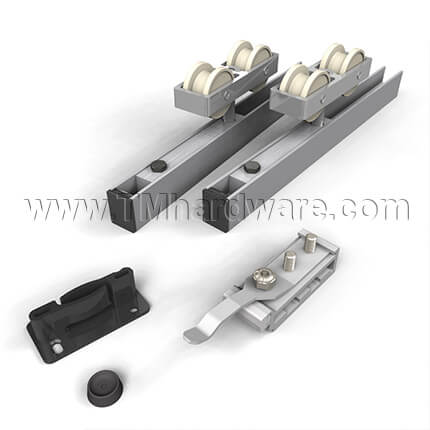

Included PartsDouble roller running gear with M14 bolt (2 ea.)
Carrier profile with suspension plates and set screw (2 ea.)
End caps for corner profile (2 ea.)

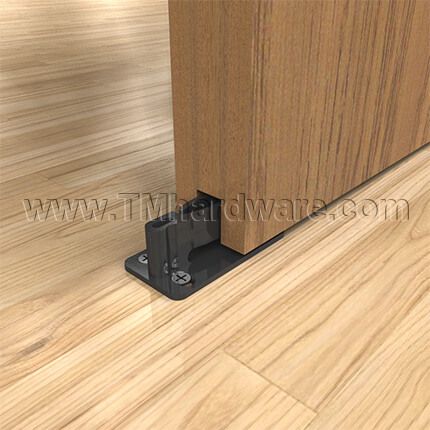

Floor mounted guide (1 ea.)
Track stopper with adjustable retention spring ( 1 ea.)
Wall buffer (1 ea.)
-

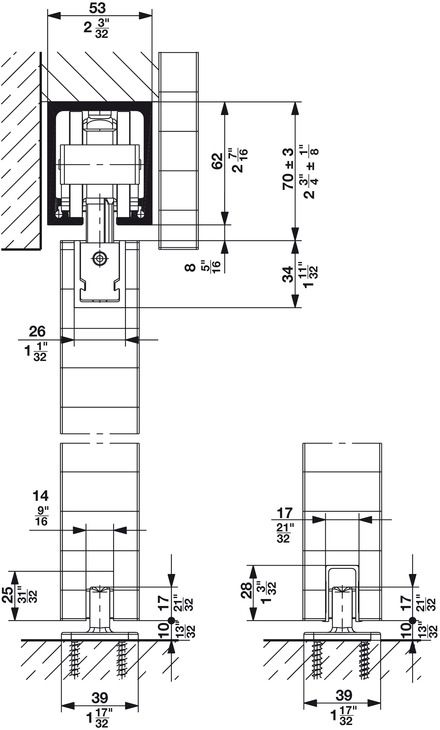

- Dimensions
-
Door Panel Weight350 LB Doors
-
Door Thickness1 3/8" Thick Minimum (35mm)
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
