HES 1006CDB Complete Pac Electric Strike, Faceplates Included, For Cylindrical and Mortise Deadbolt Locks

HES 1006CDB Complete Pac Electric Strike, Faceplates Included, For Cylindrical and Mortise Deadbolt Locks
HES

The HES 1006CDB Complete Pac is the strongest, most versatile electric strike available that works with all brands of cylindrical and mortise deadbolt locks. It features a dual interlocking plunger design, which enables it to exceed every standard developed for electric strikes. The Pac includes a HES 1006 electric strike body, brackets, and two faceplates. Available in a choice of options; select from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS1006CDB-630
    • Market price:$822.00
      • save 40%
    • Starting price: Price: $493.20 per item


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 1006CDB Complete Pac is the strongest, most versatile strike that works with all brands of cylindrical and mortise deadbolt locks.

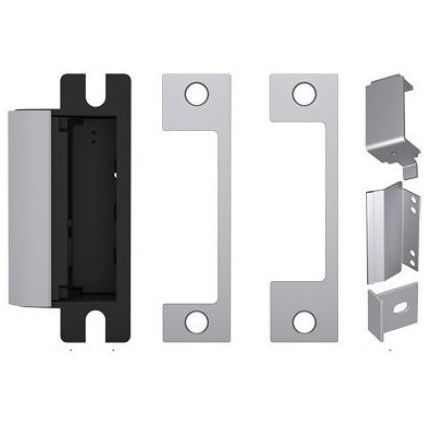

    Parts Included:

    • Electric strike body
    • Trim enhancer (with screws)
    • Pigtails (12 VDC and 24 VDC)
    • 2 Keeper Shims (with screws), additional shims available separately
    • 2 Faceplates - ND & NM faceplates (for details and measurements, view the faceplates tab below).
    • Brackets

    To purchase this strike body without faceplates, view the HES 1006 Electric Strike.

    Available Finish: Satin stainless steel (630)

    Material: Heavy duty stainless steel

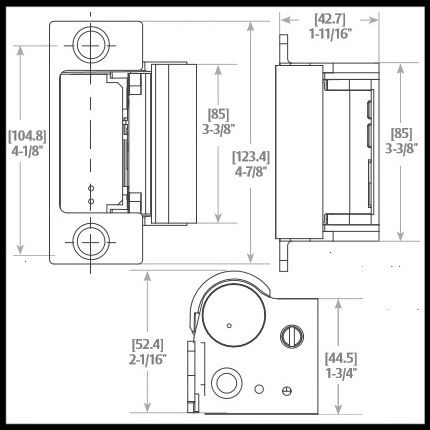

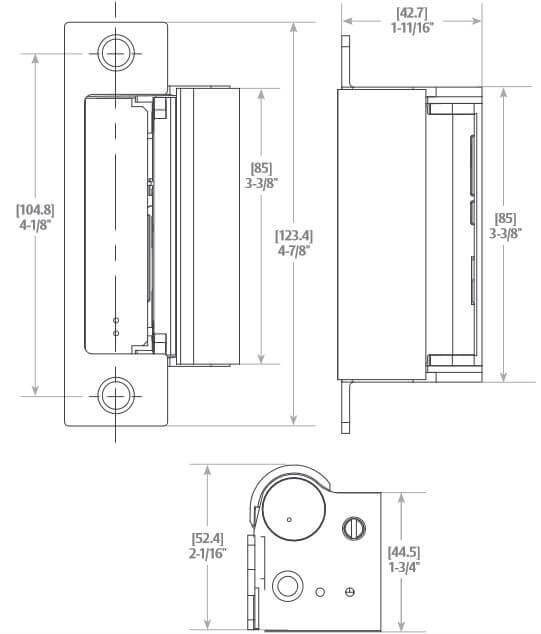

    Depth: 1-11/16" (42.7 mm)

    Width: 1-1/4" (31.8 mm)

    Height: 4-7/8" (123.4 mm)

    Shim Height: 3-3/8" (85.7 mm)

    Distance between Mounting Holes: 4-1/8" (104.8 mm)

    Strength:

    • Static - 2,500 lbs.
    • Dynamic - 350 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode: Select from the dropdown above.

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • 450 mA at 12 VDC / 250 mA at 24 VDC

    Features:

    • Tamper-resistant
    • Full keeper shims for horizontal adjustment
    • Endurance - 1 million cycles

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES 1006CDB electric strike, see our Installation Instructions.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 1000-102 Rain guard
    • 1006-103 Full keeper shims
    • 1000-104 Lip extension trim adapter
    • 1006-105 Trim enhancer BLK (goof plate)
    • 1006-109 Trim adapter
    • 1000-110 Replacement strike plate
    • 1000-130 KD filler plate
    • 150 Strike latch guard
    • HESCUT-MTK Metal template kit
    • 2005M3 SMART Pac® III

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 1006CLB Complete Pac Electric Strike, Faceplates Included,  For Cylindrical and Mortise Latchbolt Locks.

      • SKU
        HS1006CDB-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      1006CDB
    • Operating Mode
      Fail Secure (Standard), Fail Safe

    ANSI/BHMA A156.31, Grade 1

    UL 1034 burglary-resistant listed and suitable for outdoor use

    UL 294 (6th Edition) listed

    RoHS compliant

    UL 10C fire-rated, 3 hour single door (fail secure only)

    UL 10C fire-rated, 1-1/2 hour double door (fail secure only)

    CAN/ULC-S104 fire door conformant

    NFPA-252 fire door compliant

    ASTM-E152 fire door compliant

    ANSI/SDI A250.13 windstorm resistant

    Florida Building Code approved TAS 201, 202, 203

    ANSI-ASTM E330

    Sustainability documentation

    I1500 Certification Symbols

    Click to Print

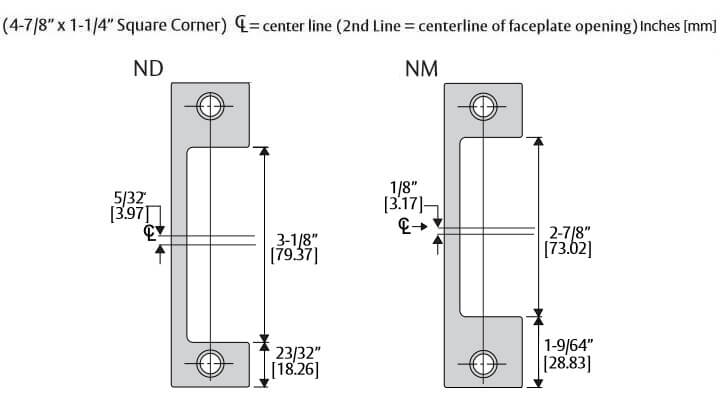

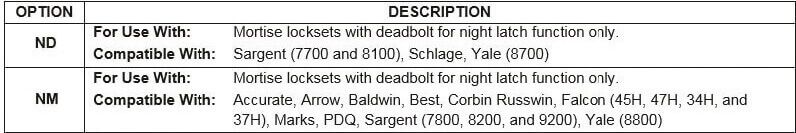

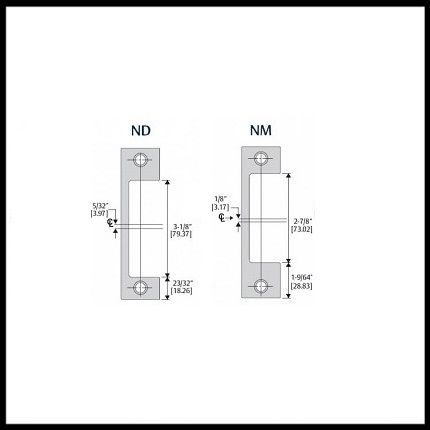

    HES 1006CDB Product SpecsHES 1006CDB Faceplates Chart

    ND (4-7/8" x 1-1/4")

    • For use with Mortise locksets where the deadbolt is used for night-latch function only.
    • Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700).
    • ANSI/BHMA Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333

    NM (4-7/8" x 1-1/4")

    • For use with Mortise locksets with a deadlatch positioned below the latchbolt and where the deadbolt is used for night-latch function only.
    • Compatible Locksets: Best (45H & 47H, and 34H-37H), Corbin/Russwin, Falcon, Sargent (7800, 8200 & 9200 series).
    • ANSI/BHMA Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
