HES 1DB-2 Option Faceplate Kit, for HES 1600 Electric Strike Series

HES 1DB-2 Option Faceplate Kit, for HES 1600 Electric Strike Series
HES

This HES 1DB-2 Option Faceplate Kit is compatible for use with the HES 1600CDB, and the HES 1600CS electric strike, of the 1600 series. The kit includes the 1N-2 Option faceplate, designed for wood applications, and works with mortise locks, and tubular deadbolts up to a 1" latchbolt. The mounting holes on the faceplates, enable the electric strike to be fastened to the door frame. Available in a choice of finish options; select from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS1DB-2-630
    Call for price!
    845-388-1300

    Faceplates fasten, embellish, and protect doors and electric strikes. It is the part that gets mounted onto the side of the door, surrounding the latchbolt. This HES 1DB-2 Option Faceplate Kit works with the HES 1600CDB, and the HES 1600CS electric strike, of the HES 1600 series.

    Parts Included:

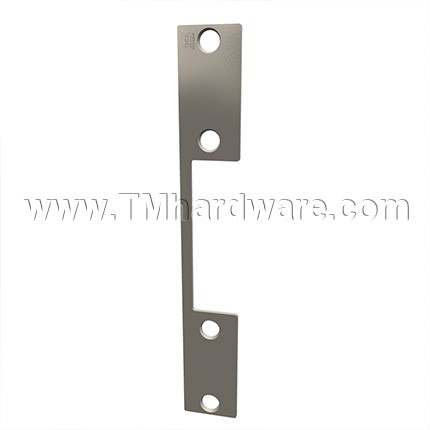

    • 1 HES 1N-2 Option faceplate
    • Mounting screws

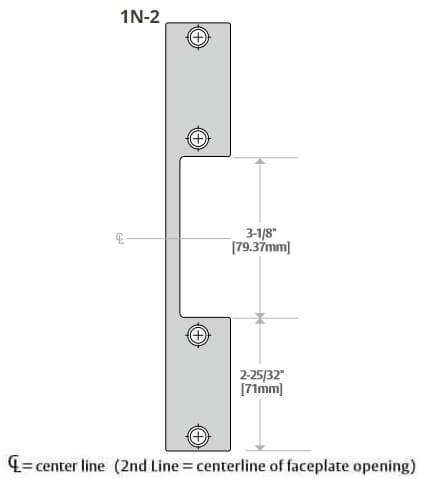

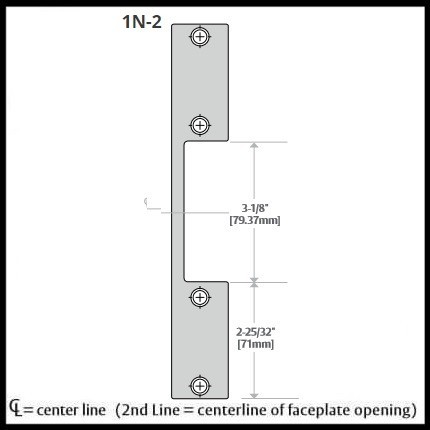

    For faceplate details and measurements, view the Product Specs tab below.

    Available Finish: Available in a choice of finish options; select from the dropdown above.

    Material: Heavy duty stainless steel

    Width: 1-3/8" (34.9 mm)

    Height: 9" (228.6 mm)

    Frame Application: For wood appplications.

    For Use With: Mortise locks, and tubular deadbolts up to a 1" latchbolt.

    Operation:

    • Mode 1: Night latch function - the deadbolt is retracted during traffic hours. The latchbolt is released by the keeper and keeper returns to the locked position.
    • Mode 2: Lockout function - the electric strike will not release if the deadbolt is extended.

    Installation: For details on how to install the HES 1N-2 Option Faceplate with the 1600CDB, or 1600CS electric strike, see our Installation Instructions.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 1DB Option Faceplate Kit, for HES 1600 Electric Strike Series.

      • SKU
        HS1DB-2-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      1DB-2
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin, Black Suede Powder Coat
