HES 4500C Complete Pac Electric Strike, Faceplates Included, For all Locksets up to a 3/4" Latchbolt Throw

HES 4500C Complete Pac Electric Strike, Faceplates Included, For all Locksets up to a 3/4" Latchbolt Throw
HES

The HES 4500C Complete Pac electric strike works with all brands of cylindrical and mortise locksets up to a 3/4" latchbolt throw. It is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. The Pac includes an electric strike body with two faceplates and features a unique keeper pin locking design, enabling it to exceed the product ratings. Available in a choice of options; select from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS4500C-630
    • Market price:$792.00
      • save 40%
    • Starting price: Price: $475.20 per item


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 4500C Complete Pac electric strike works with all brands of cylindrical and mortise locksets up to a 3/4" latchbolt throw.

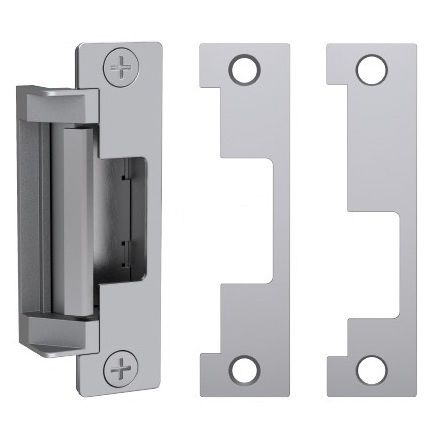

    Parts Included:

    • Electric strike body
    • Keeper shims & screws (#4-40 x 1/8" and #4-40 x 3/16")
    • Centerlined and non-handed faceplate for cylindrical locksets (J Faceplate)
    • Offset and non-handed faceplate for mortise locksets (KM Faceplate)
    • #12-24 x 1/2” Mounting screws
    • 12 & 24 Volt plug in connectors
    • Trim enhancer & screws

    Available Finishes: Various finishes available; choose from the options above.

    Material: Heavy duty stainless steel

    Depth: 1-3/8" (34.9 mm)

    Width: 1-1/4" (31.8 mm)

    Height: 4-7/8" (123.4 mm)

    Shim Height: 3-5/8" (92 mm)

    Distance between Mounting Holes: 4-1/8" (104.8 mm)

    Strength:

    • Static - 1,500 lbs.
    • Dynamic - 100 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode:

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    The 4500C Electric Strikes Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • 240 mA at 12 VDC/120 mA at 24 VDC
    • PoE friendly

    Features:

    • Tamper-resistant
    • Internally mounted solenoid
    • Full keeper shims for horizontal adjustment
    • Endurance - 1 million cycles
    • Unique keeper pin locking design - enables the product to exceed the ratings of the frame, door and locking hardware

    Optional Features: Select from the dropdown above.

    • LBM - Latchbolt monitor - An internally mounted signal switch that monitors the position of the latchbolt.
    • LBSM - Latchbolt strike monitor - An internally mounted signal switch that monitors the position of the latchbolt and if the strike itself is properly locked.

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES 4500C electric strike, see our Installation Instructions.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 4500-105 Trim enhancer - black
    • 4500-110 Replacement strike plate
    • 4500-131 Filler block - 7/16"
    • 150 Strike latch guard
    • HESCUT-MTK Metal template kit
    • 2001M Plug-in bridge rectifier
    • 2004M ElectroLynx® adapter
    • 2005M3 SMART Pac® III
    • 2006M Plug-in buzzer
    • 4501-1/2: 1/2" stackable lip extension
    • 4501-1: 1" stackable lip extension

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our HES 1600CDB Complete Pac Electric Strike, Faceplates Included, For Cylindrical and Mortise Deadbolt Locks.

      • SKU
        HS4500C-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      4500C
    • Optional Features
      Not Required, Latchbolt Monitor, Latchbolt Strike Monitor
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin

    Click to Print

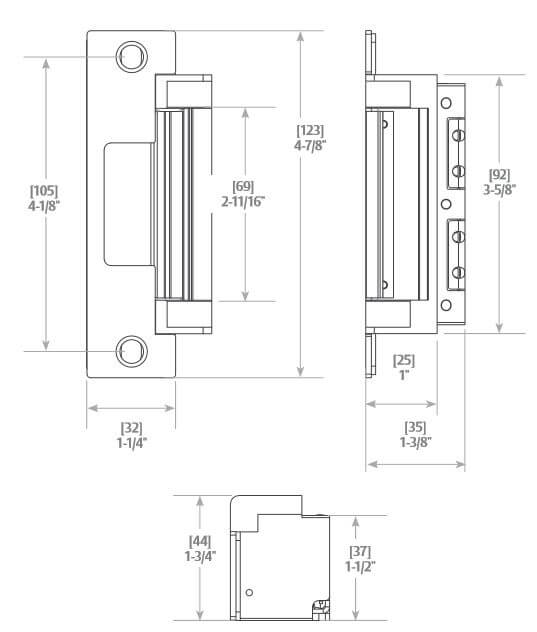

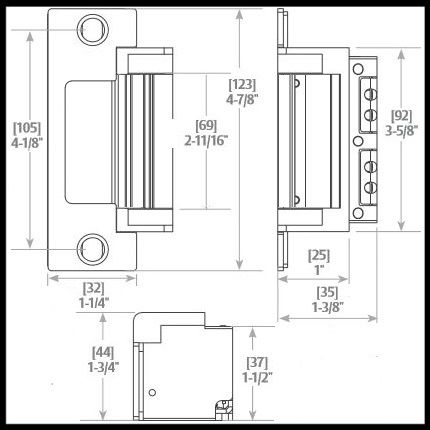

    HES 4500C Product Specs

    (For faceplate details and measurements, view the faceplates tab below.)

     ANSI/BHMA A156.31, Grade 1

    UL 1034 burglary-resistant listed

    UL 294 (6th Edition) listed

    UL 10C fire-rated, 3 hour (fail secure only)

    CAN/ULC-S104 fire door conformant

    NFPA-252 fire door compliant

    ASTM-E152 fire door compliant

    California Fire Marshal listed

    HES 4500C Certification Symbol

    Click to Print

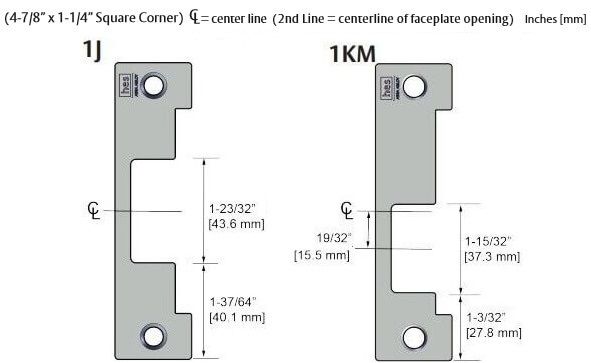

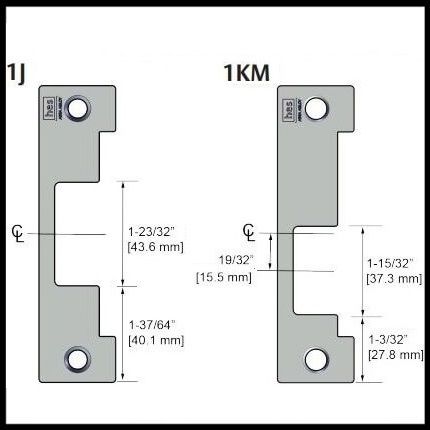

    HES 4500C Faceplate Specs

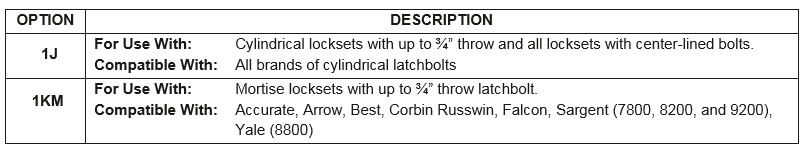

    HES 4500C Faceplates Chart

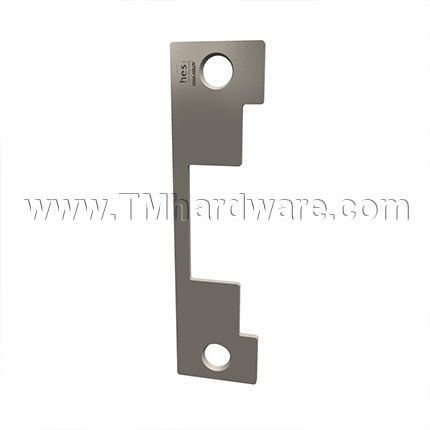

    1J (4-7/8" x 1-1/4"):

    • For use with cylindrical locksets up to 3/4" throw and all locksets with center-lined bolts.
    • ANSI/BHMA Numbers: #E09321, #E09322, #E09323

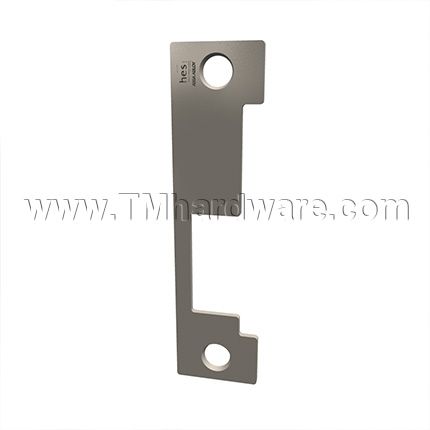

    1KM (4-7/8" x 1-1/4"):

    • For use with Mortise locksets with a deadlatch positioned below the latchbolt.
    • Compatible Locksets: Accurate, Arrow, Best*, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800) *For Best 45H & 47H deadlatch below, and Best 34H - 37H deadlatch above.
    • ANSI/BHMA Numbers: #E09321, #E09322, #E09323
