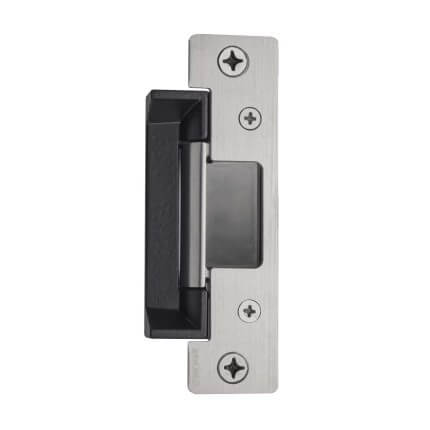

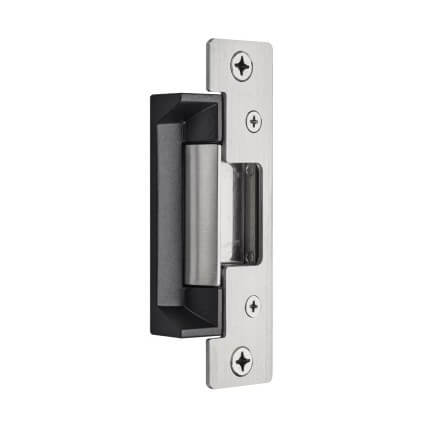

HES 5300 Electric Strike, For Cylindrical Locksets up to a 5/8 Latchbolt Throw

Standard, 630 finish
HES

The HES 5300 electric strike works with all brands of cylindrical locksets up to a 5/8" latchbolt throw. The in-frame horizontal design allows for a simple installation process, as well as easy adjustment to accommodate the position of the latchbolt. The strike includes the body only; for a complete package of an electric strike with faceplates, view the 5300C Complete Pac. Available in a choice of options; select from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HSHS5300-630
    • Market price:$435.00
      • save 40%
    • Starting price: Price: $261.00 per item


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 5200 electric strike works with all brands of cylindrical locksets up to a 5/8" latchbolt throw.

    Parts Included:

    • Electric strike body
    • Trim enhancer & screws
    • 12 & 24 volt pigtails

    Faceplates are not included with this product and is available separately. For a complete package of an electric strike with faceplates, view the 5300C Complete Pac.

    Available Finish: Satin stainless steel (630)

    Material: Heavy duty stainless steel

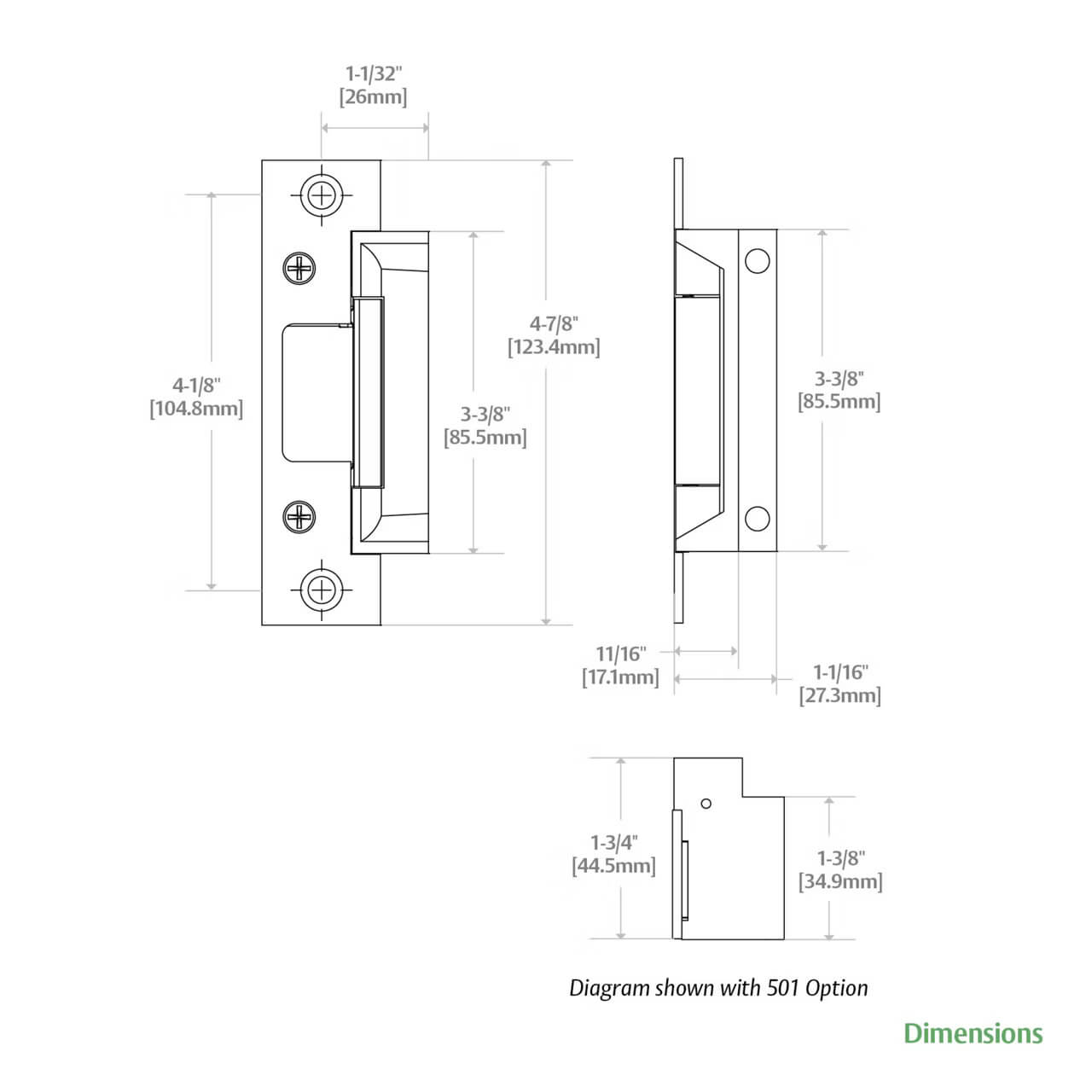

    Depth: 1-1/16"

    Height: 4-7/8"

    Strength:

    • Static - 1,500 lbs.
    • Dynamic - 70 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode:

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    The 5300 Electric Strikes Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • PoE friendly

    Features:

    • Tamper-resistant
    • Internally mounted solenoid
    •  Internally mounted solenoid
    • Non-handed
    • Plug-in connector
    • Endurance - 1 million cycles

    Optional Features: Select from the dropdown above.

    • LBM - Latchbolt monitor - An internally mounted signal switch that monitors the position of the latchbolt.

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES 5300 electric strike, see our Installation Instructions.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 5200-500 Filler block for retro-fit applications
    • 150 Strike latch guard
    • HESCUT-MTK Metal template kit
    • 2001M Plug-in bridge rectifier
    • 2004M ElectroLynx® adapter
    • 2005M3 SMART Pac® III
    • 2006M Plug-in buzzer
    • 5204-1/2: 1/2" stackable lip extension
    • 5204-1: 1" stackable lip extension
    • 5204-1-1/4: 1-1/4" stackable lip extension

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 5200 Electric Strike, For Cylindrical Locksets up to a 3/4" Latchbolt Throw

      • SKU
        HSHS5300-630
    • Series
      5300 Series
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      5300
    • Optional Features
      Not Required, Latchbolt Monitor
    • Finishes
      • Finish
        Satin Stainless Steel (630)
    • Compliance Details
      • Compliance Details
        CAL FIRE, 3776-1654:0502, CAN/ULC-S104 Listed, NFPA-252 fire door compliant, RoHS Compliant, UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use, UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies, UL294 Listed
      • ANSI Designation
        ANSI/BHMA A156.31, Grade 1
      • Warranty
        5 Year Limited Warranty
