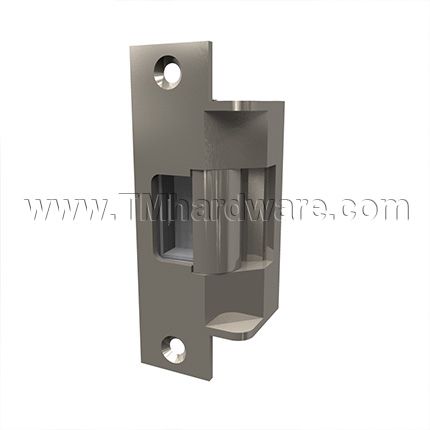

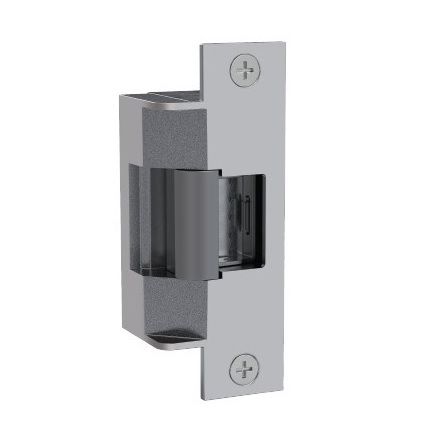

HES 7501 Electric Strike, Fire Rated, Preload Solution For Cylindrical Locksets up to a 3/4" Latchbolt Throw

Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 7501 electric strike works with all brands of cylindrical locksets up to a 3/4" latchbolt throw.

Parts Included:

• Electric strike body
• Keeper shims
• Trim enhancer
• #4-40 x 1/2" Keeper shim screws
• #12-24 x 1/2" Mounting screws
• #4-40 x 1/4” Trim enhancer screws
• 12-Volt and 24-Volt pigtail connectors

The strike includes the body only; faceplates are available separately.

Available Finishes: Various finishes available; choose from the options above.

Material: Heavy duty stainless steel

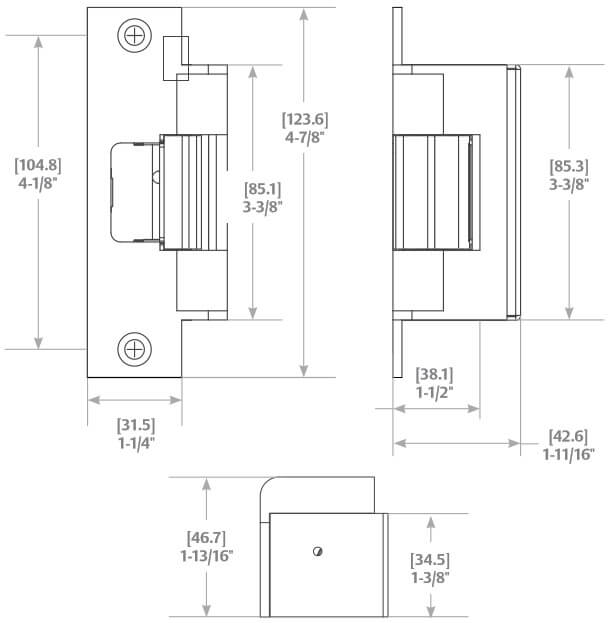

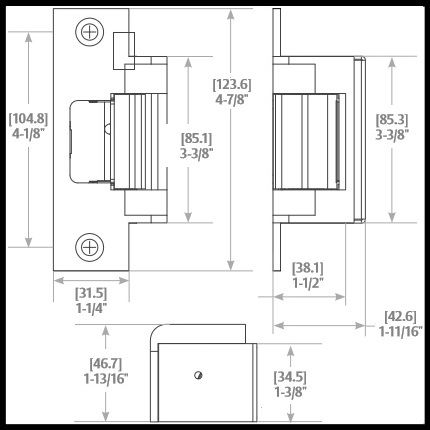

Depth: 1-11/16" (43 mm)

Height: 4-7/8" (123.4 mm)

Shim Height: 3-3/8" (85.7 mm)

Distance between Mounting Holes: 4-1/8" (104.8 mm)

Strength:

• Static - 1,500 lbs.
• Dynamic - 70 ft-lbs.

Handing: Non-handed

Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

Operating Mode:

• Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
• Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

The 7501 Electric Strike Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

Please note: Operation in fail safe mode removes the fire-rating of the electric strike.

Electrical (DC Continuous Duty):

• Dual voltage 12/24 VDC
• 450 mA at 12 VDC/250 mA at 24 VDC

Features:

• Tamper-resistant
• Internally mounted solenoid
• Plug-in connector
• Endurance - 1 million cycles
• Fire rated - Rated by numerous safety, quality and fire safety standards; falls within the guidelines for retrofit into fire-rated frames.
• Preload Release - Door preload occurs when pressure is exerted onto a door and gets transferred to the keeper of the electric strike by the latch. The additional loads can hinder the smooth unlocking of the strike or even disable it - preventing the door from opening. In fail secure mode, the 7501 electric strike's preload release function enables it to work properly under preload conditions with pressure up to 15 lbs.

Optional Feature: Select from the dropdown above.

LBM - Latchbolt monitor - An internally mounted signal switch that monitors the position of the latchbolt.

Certification: This strike meets ANSI/BHMA Grade 1 requirements for a high level of quality and security.

Installation: For details on how to install the HES 7501 electric strike, see our Installation Instructions.

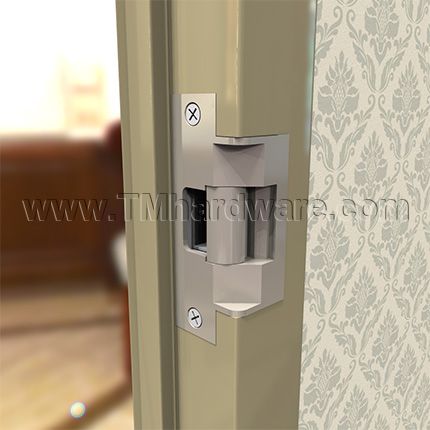

Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer
• 150 Strike latch guard
• HESCUT-MTK Metal template kit

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 5 year warranty against defects in materials and workmanship.
