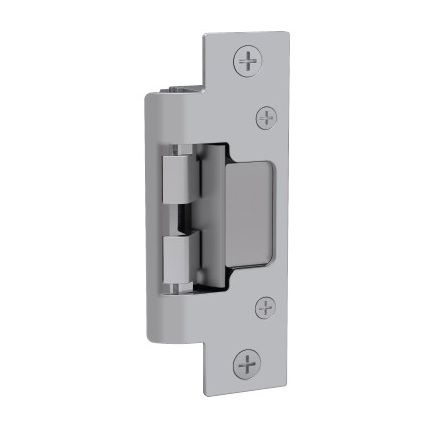

HES 8300 Electric Strike, Fire Rated, Concealed Design, For Cylindrical Locksets up to a 5/8" Latchbolt Throw

Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 8300 electric strike works with all brands of cylindrical locksets up to a 5/8" latchbolt throw.

Parts Included:

• Electric strike body
• Sticky shims (optional use)
• 12 & 24 volt pigtails

Faceplates are not included with this product and are available separately. For a complete package of an electric strike with faceplates, view the 8300C Complete Pac.

Available Finish: Satin stainless steel (630)

Material: Heavy duty stainless steel

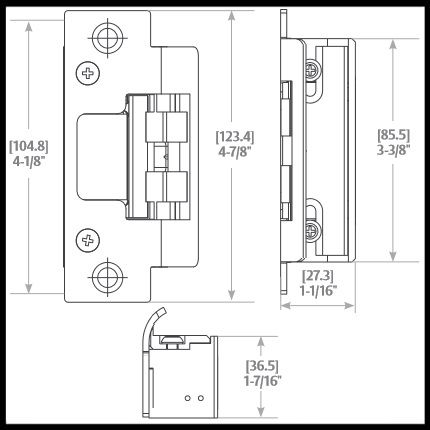

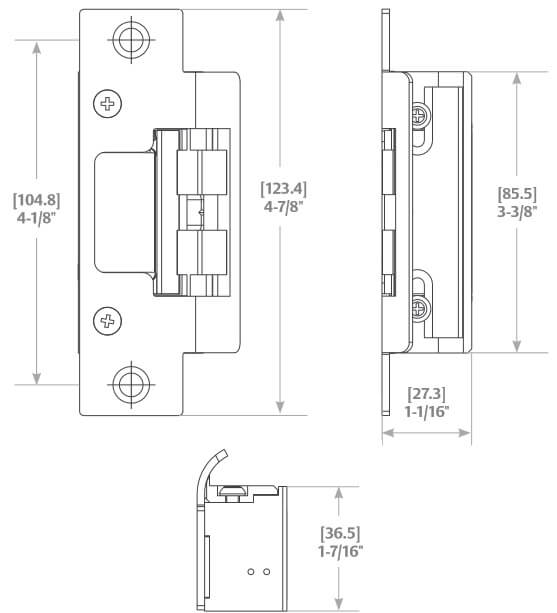

Depth: 1-1/16" (27 mm)

Width: 1-7/16" (36.5 mm)

Height: 4-7/8" (123.4 mm)

Shim Height: 3-3/8" (85.7 mm)

Distance between Mounting Holes: 4-1/8" (104.8 mm)

Strength:

• Static - 1,500 lbs.
• Dynamic - 70 ft-lbs.

Handing: Non-handed

Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

Operating Mode:

• Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
• Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

The 8300 Electric Strike Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

Please note: Operation in fail safe mode removes the fire-rating of the electric strike.

Electrical (DC Continuous Duty):

• Dual voltage 12/24 VDC/VAC (Included)
• 240 mA at 12 VDC/120 mA at 24 VDC
• PoE friendly

Features:

• Tamper-resistant
• Endurance - 1 million cycles
• Plug-in connector
• Fire rated - Rated by numerous safety, quality and fire safety standards; falls within the guidelines for retrofit into fire-rated frames.
• Concealed design -  No cutting on the frame is required. Remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install.
• Vertical adjustability - accommodates door sag and misalignment
• Unique keeper pin locking design - enables the product to exceed the ratings of the frame, door and locking hardware

For a concealed electric strike with no fire rated solution, see our HES 8000 Electric Strike.

Optional Feature: Select from the dropdown above.

LBM - Latchbolt monitor - An internally mounted signal switch that monitors the position of the latchbolt.

Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

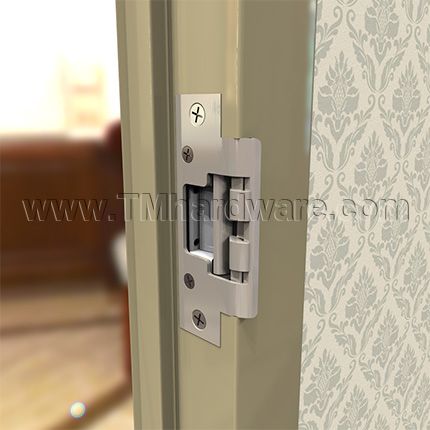

Installation: Remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. For more details on how to install the HES 8300 electric strike, see our Installation Instructions.

Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 5 year warranty against defects in materials and workmanship.
