HES 9100 Series Surface Mounted Electric Strike, Handed

HES 9100 Series Surface Mounted Electric Strike, Handed
HES

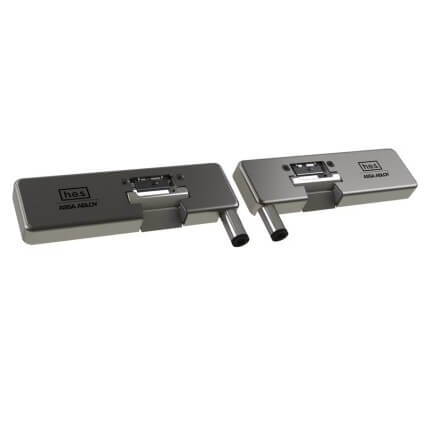

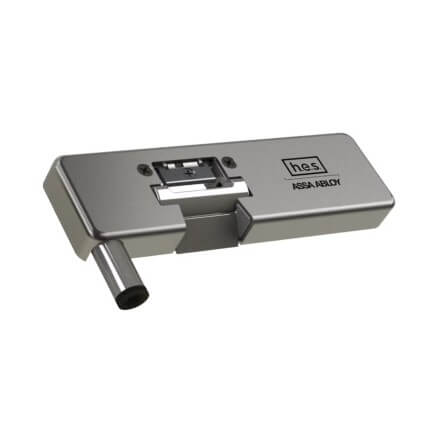

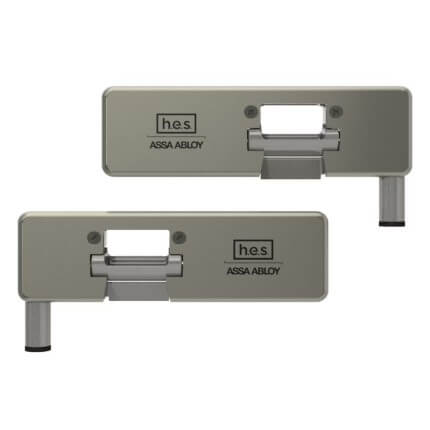

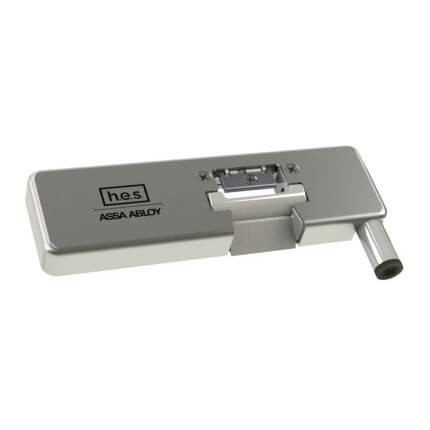

HES 9100 Series Surface Mounted Electric Strike, a low-profile, retro-mounted solution for single-door glass openings. Works with tubular, vertical rod exit devices on single doors. This product exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements. Available in Left or Right handed, and in different finishes

SOLD PER PIECE

See tabs below for additional information
    • SKU
      HS9100R-630
    • Market price:$815.00
      • save 40%
    • Starting price: Price: $489.00 per item


    HES 9100 Series Surface Mounted Electric Strike, a low-profile, retro-mounted solution for single-door glass openings. Works with tubular, vertical rod exit devices on single doors. This product exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements. Available in Left or Right handed, and in different finishes

    Features:

    • Retro-mount using existing header prep
    • No cutting required
    • Integrated adjustability
    • Adaptable voltage sensing technology (12-24 VDC)
    • Factory configured or field installable monitoring
    • Static strength 1,500 lbs
    • Dynamic strength to 70 ft-lbs
    • Endurance: 1 million cycles
    • Field selectable fail secure/fail safe
    • Quiet operation
    • Stainless steel construction

    Electrical:

    • DC Continuous Duty
    • Operating Voltage (12-24 VDC/VAC)
    • 240 mA at 12 VDC, 120 mA at 24 VDC

    Ratings:

    • ANSI/BHMA A156.31, Grade 1
    • RoHS Compliant
    • UL 294
    • UL 305
    • UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use

    SOLD PER PIECE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5-year Limited warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 8500 Electric Strike, Fire Rated, Concealed Design, For Mortise Locksets up to a 3/4" Latchbolt Throw

      • SKU
        HS9100R-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      9100
    • Optional Features
      Not Required, Latchbolt Monitor, Latchbolt Strike Monitor
    • Product Details
      • Voltage
        12-24 VDC
      • ANSI / BHMA Grade
        Grade 1
    • Installation
      • Door Material
        Aluminum, Hollow Metal, Wood

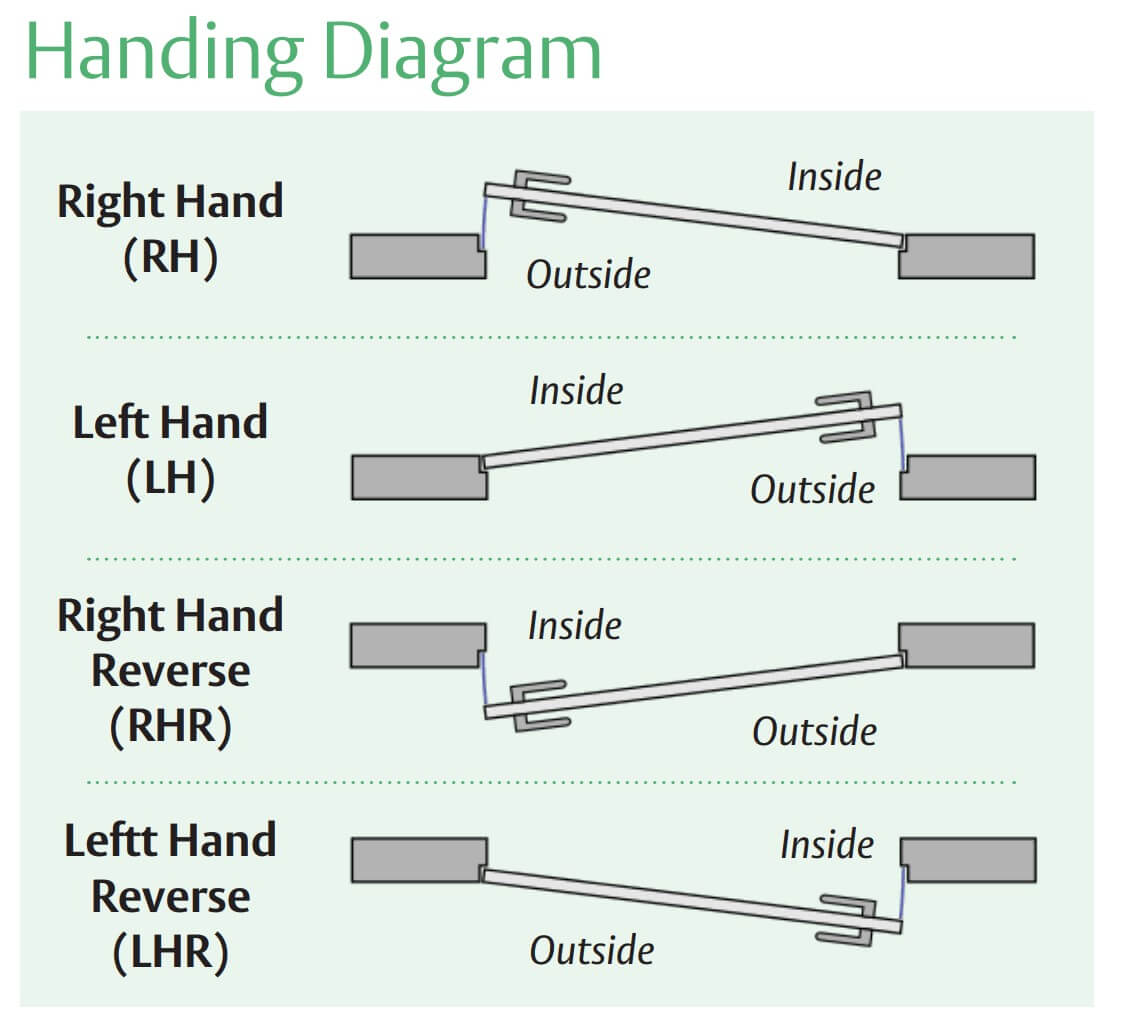

      • Handing
        Right, Left
    • Special Features
      • Surface Mounted
        Yes
      • Static Strength
        1500 Lbs.
      • Dynamic Strength
        70 ft lbs
      • Cycle Testing
        1,000,000 cycles
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Satin Bronze (612), Dark Satin Bronze, Equiv (613e), Bright Stainless Steel (629), Satin Stainless Steel (630), Black Suede Powder Coat (BSP)
    • Compliance Details
      • Compliance Details
        RoHS Compliant, UL 294 Listed, UL 305 Listed, UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use
      • ANSI Designation
        ANSI/BHMA A156.31, Grade 1
      • Warranty
        5 Year Limited Warranty
