HES 9200W Wide Surface Mounted Electric Strike

HES 9200N Narrow Surface Mounted Electric Strike
HES

HES 9200W Wide Surface Mounted Electric Strike, a Retro-mounted electric strike with integrated adjustability and field installable options for maximized versatility on double glass doors. Available in multiple finishes.

SOLD PER PIECE

See tabs below for additional information
    • SKU
      HS9200W-630
    • Market price:$1,530.00
      • save 40%
    • Starting price: Price: $918.00 per item


    HES 9200W Wide Surface Mounted Electric Strike, a Retro-mounted electric strike with integrated adjustability and field installable options for maximized versatility on double glass doors. Available in multiple finishes.

    Features:

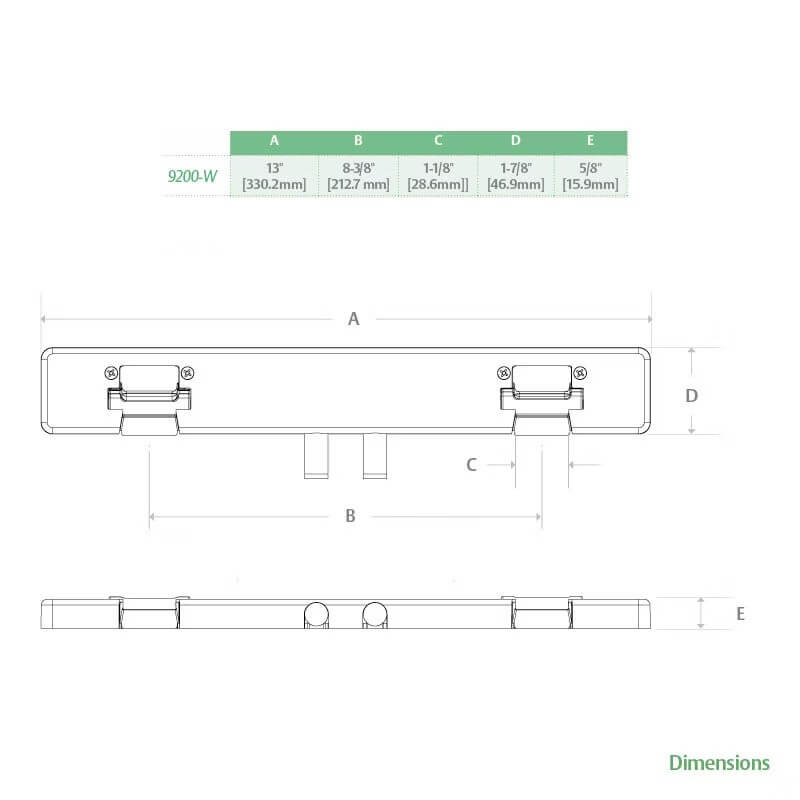

    • Keeper Spacing ( Keeper distance centerline to centerline ) : 8-3/8"
    • Retro-mount using existing header prep
    • No cutting required
    • Integrated adjustability
    • Adaptable voltage sensing technology (12-24 VDC)
    • Factory configured or field installable monitoring
    • Static strength 1,500 lbs
    • Dynamic strength to 70 ft-lbs
    • Endurance: 1 million cycles
    • Field selectable fail secure/fail safe
    • Quiet operation
    • Stainless steel construction

    Electrical:

    • Adaptable voltage (12-24 VDC)
    • 480 mA at 12 VDC, 240 mA at 24 VDC

    Ratings:

    • ANSI/BHMA A156.31, Grade 1
    • UL 1034 Burglary-Resistant
    • UL 294
    • UL 305

    SOLD PER PIECE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5-year Limited warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 9200N Narrow Surface Mounted Electric Strike

      • SKU
        HS9200W-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      9200W
    • Optional Features
      Not Required, Latchbolt Monitor, Latchbolt Strike Monitor
    • Product Details
      • Voltage
        12-24 VDC
      • ANSI / BHMA Grade
        Grade 1
    • Installation
      • Door Material
        Aluminum, Hollow Metal, Wood
    • Special Features
      • Surface Mounted
        Yes
      • Static Strength
        1500 Lbs.
      • Dynamic Strength
        70 ft lbs
      • Cycle Testing
        1,000,000 cycles
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Satin Bronze (612), Dark Satin Bronze, Equiv (613e), Bright Stainless Steel (629), Satin Stainless Steel (630), Black Suede Powder Coat (BSP)
    • Compliance Details
      • Compliance Details
        UL 294 Listed, UL 305 Listed, UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use
      • ANSI Designation
        ANSI/BHMA A156.31, Grade 1
      • Warranty
        5 Year Limited Warranty
