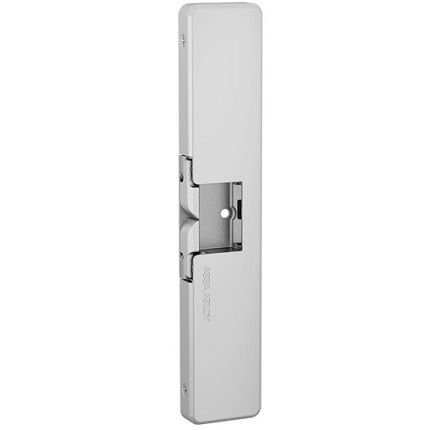

HES 9400 Electric Strike, Surface Mounted, For Rim Exit Devices up to a 1/2" Pullman Latchbolt - QUICKSHIP

HES 9400 Electric Strike, Surface Mounted, For Rim Exit Devices up to a 1/2" Pullman Latchbolt - QUICKSHIP
HES

The HES 9400 electric strike works with all rim exit devices up to a 1/2" Pullman latchbolt throw. This strike features a slim-line, surface mounted design, and no cutting on the frame for installation is required. It has a smooth cover that conceals the mounting screws and provides a sleek surface for superior looks. Available in a choice of options; select from the dropdowns below.

See full product details and specs in tabs below.

For more finishes and options. See Our HES 9400 Electric Strike, Surface Mounted, For Rim Exit Devices up to a 1/2" Pullman Latchbolt

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS9400.
    • Market price:$731.00
      • save 40%
    • Starting price: Price: $438.60 per item
    In stock (2 items available)


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 9400 electric strike works with all rim exit devices up to a 1/2" Pullman latchbolt throw.

    For more finishes and options. See Our HES 9400 Electric Strike, Surface Mounted, For Rim Exit Devices up to a 1/2" Pullman Latchbolt

    Parts Included:

    • Electric strike body
    • Electric strike cover
    • 1/4"-20 x 1" Mounting screws
    • #10-32 & 10-24 Lockdown screws (optional)
    • #6-32 x 1/4" Cover screws
    • 5/64" Hex key
    • 12-volt and 24-volt pigtails
    • 1/8" Spacer plate - accommodates varying door gaps

    Body Finish: Satin stainless steel finish (630)

    Cover Finish: Satin stainless steel finish (630)

    Material: Heavy duty stainless steel

    Depth: 1/2" (12.7 mm)

    Width: 1-3/4" (44.5 mm)

    Height: 9" (228.6 mm)

    Strength:

    • Static - 1,500 lbs.
    • Dynamic - 70 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode:

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    The 9400 Electric Strike Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • 240 mA at 12 VDC/120 mA at 24 VDC

    Features:

    • Tamper-resistant
    • Internally mounted solenoid
    • Endurance - 1 million cycles
    • Separate base and decorative cover for easy adjustments
    • Smooth cover - conceals the mounting screws and provides a sleek surface for superior looks
    • No cutting - All components are completely encased within the strike's 1/2" thick stainless steel housing, so cutting on the frame is not required for installation.
    • Horizontal adjustability

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation:  Place the electric strike on the surface of the frame, align it with the exit latchbolt, and install. For more details on how to install the HES 9400 electric strike, see our Installation Instructions, or view the video clips above.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 9000-MTK Metal template kit
    • Surface mounting box
    • 2001M Plug-in bridge rectifier
    • 2004M ElectroLynx® adapter
    • 2005M3 SMART Pac® III
    • 2006M Plug-in buzzer

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 8500 Electric Strike, Fire Rated, Concealed Design, For Mortise Locksets up to a 3/4" Latchbolt Throw.

      • SKU
        HS9400.
    • QuickShip
      Yes
    • Manufacturer
      HES
    • MPN
      9400
    • Finishes
      • Finish
        Satin Stainless Steel (630)

     ANSI/BHMA A156.31, Grade 1

    UL 1034 burglary-resistant listed and suitable for outdoor use

    UL 294 (6th Edition) listed

    RoHS compliant

    HES 7000 Certification Symbol
