HES 9700 Electric Strike, Surface Mounted, Fire-Rated and Windstorm Resistant, For Corbin Russwin SecureBolt® and Yale SquareBolt® Exit Devices

HES 9700 Electric Strike, Surface Mounted, Fire-Rated and Windstorm Resistant, For Corbin Russwin SecureBolt® and Yale SquareBolt® Exit Devices
HES

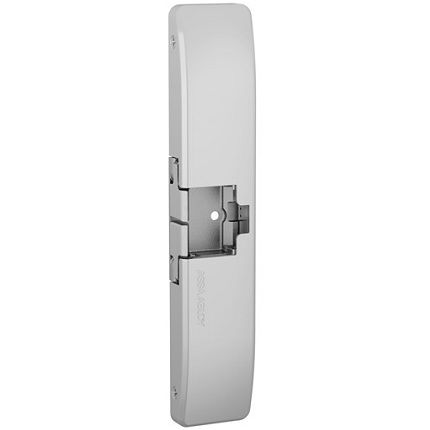

The HES 9700 fire-rated and windstorm resistant electric strike works with Corbin Russwin SecureBolt® and Yale SquareBolt® Exit Devices. This strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames and has the strength and durability needed to exceed the severe forces of ANSI Windstorm testing. It features a surface-mounted design, and no cutting on the frame for installation is required. Available in a choice of options, select from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS9700-630
    • Market price:$708.00
      • save 40%
    • Starting price: Price: $424.80 per item


    Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES 9700 fire-rated and windstorm resistant electric strike works with Corbin Russwin SecureBolt® and Yale SquareBolt® Exit Devices.

    Parts Included:

    • Electric strike body
    • Electric strike cover
    • 1/4"-20 x 1" Mounting screws
    • #10-32 & 10-24 Lockdown screws (optional)
    • #6-32 x 1/4" Cover screws
    • 5/64" Hex key
    • 12-volt and 24-volt pigtails

    Body Finish: Satin stainless steel finish (630)

    Cover Finish: Available in a choice of finishes, choose from the dropdown above.

    Material: Heavy duty stainless steel

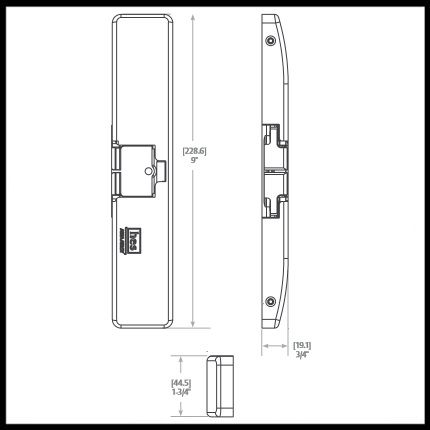

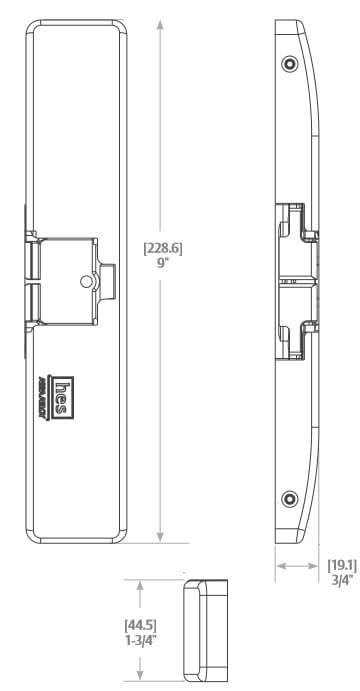

    Depth: 3/4" (19.1 mm)

    Width: 1-3/4" (44.5 mm)

    Height: 9" (228.6 mm)

    Strength:

    • Static - 2,000 lbs.
    • Dynamic - 120 ft-lbs.

    Handing: Non-handed

    Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.

    Operating Mode:

    • Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
    • Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

    The 9700 Electric Strike Series ship configured for fail secure operation. See our Installation Instructions with steps provided on how to convert to fail safe operation, if desired.

    Please note: Operation in fail safe mode removes the fire-rated and windstorm resistant feature of the electric strike.

    Electrical (DC Continuous Duty):

    • Dual voltage 12/24 VDC/VAC (Included)
    • 450 mA at 12 VDC/250 mA at 24 VDC

    Features:

    • Tamper-resistant
    • Internally mounted solenoid
    • Endurance - 1 million cycles
    • Fire rated - Rated by numerous safety, quality and fire safety standards; falls within the guidelines for retrofit into fire-rated frames.
    • Windstorm resistant - designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
    • Separate base and decorative cover for easy adjustments
    • Smooth cover - conceals the mounting screws and provides a sleek surface for superior looks
    • No cutting - All components are completely encased within the strike's 3/4" thick stainless steel housing, so cutting on the frame is not required for installation.
    • Horizontal adjustability

    Optional Features: Select from the dropdown above.

    • LBM - Latchbolt monitor - An internally mounted signal switch that monitors the position of the latchbolt.
    • LBSM - Latchbolt strike monitor - An internally mounted signal switch that monitors the position of the latchbolt and if the strike itself is properly locked.

    Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

    Installation: For details on how to install the HES 9700 electric strike, see our Installation Instructions.

    Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

    Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    • 9000-108 Spacer plate (black or 630 finish)
    • 9000-MTK Metal template kit
    • Surface mounting box
    • 2001M Plug-in bridge rectifier
    • 2004M ElectroLynx® adapter
    • 2005M3 SMART Pac® III
    • 2006M Plug-in buzzer

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 9600 Electric Strike, Surface Mounted, Windstorm-Resistant, For Rim Exit Devices up to a 3/4" Pullman Latchbolt.

      • SKU
        HS9700-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      9700
    • Cover Finish
      Bright Brass (605), Satin Brass (606), Satin Bronze (612), Bronze Toned (613), Dark Oxidized Satin Bronze (613E), Bright Stainless Steel (629), Satin Stainless Steel (630), Black Suede Powder Coat (BSP)
    • Optional Features
      Not Required, Latchbolt Monitor, Latchbolt Strike Monitor

    ANSI/BHMA A156.31, Grade 1

    UL 1034 burglary-resistant listed and suitable for outdoor use

    UL 294 (6th Edition) listed

    RoHS compliant

    UL 10C fire-rated, 3 hour single door (fail secure only)

    CAN/ULC-S104 fire door conformant

    NFPA-252 fire door compliant

    ASTM-E152 fire door compliant

    California Fire Marshal listed

    NFPA 80-07 compliant

    ANSI/SDI A250.13 windstorm resistant

    Florida Building Code approved TAS 201, 202, 203

    ANSI-ASTM E330

    HES 7000 Certification Symbol
