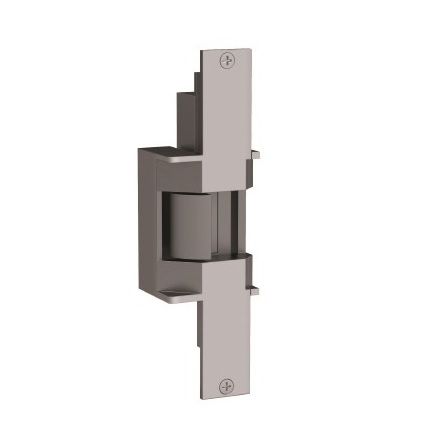

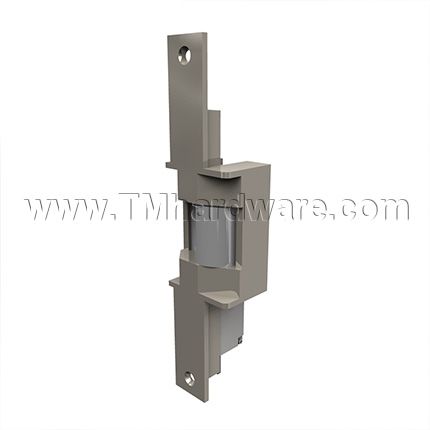

HES-Folger Adam 310-2-3/4OB Electric Strike, Fire-Rated, For Locksets with a 3/4" Latchbolt Throw, without a Door Coordinator

Electric strikes are electromechanical door keepers that act as a powerful security by holding the lockbolt in place. This HES-Folger Adam 310-2-3/4OB electric strike works for all brands of cylindrical and mortise locksets with a 3/4" latchbolt throw, without a door coordinator.

Parts Included:

• Electric strike body & faceplate
• #12-24 x 1/2" Faceplate mounting screws
• #12-24 x 5/8" Body mounting screws
• Plug-in connector

Available Finish: Available in a choice of finishes, choose from the dropdown above.

Material: Constructed entirely of stainless steel for strength and corrosion resistance.

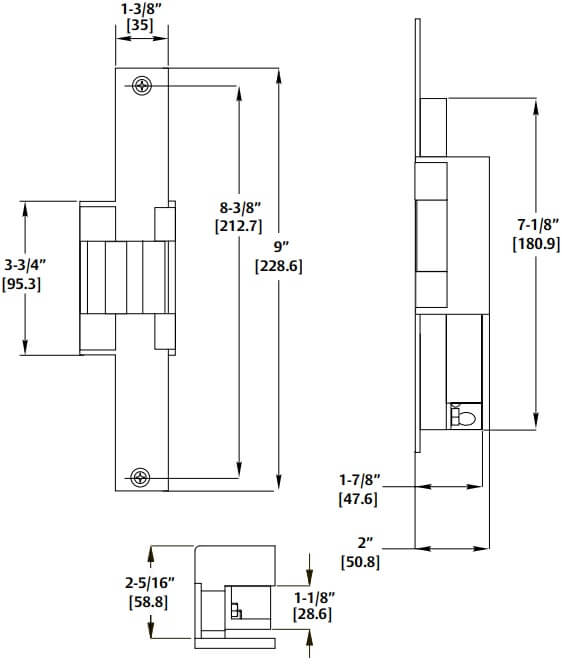

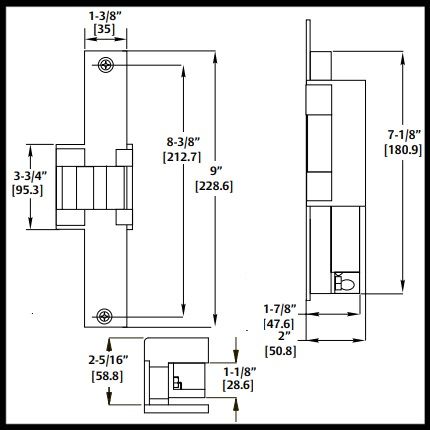

Strike Body Depth: 2" (50.8 mm)

Keeper Depth: 3/4" (19.1 mm)

Height: 9" (228.6 mm)

Distance between Mounting Holes: 8-3/8" (212.7 mm)

Strength:

• Static - 1,500 lbs.
• Dynamic - 70 ft-lbs.

Handing: Non-handed

Frame Application: For single and double hollow metal, aluminum, and wood doors.

Operating Mode: Select from the dropdown above.

• Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.)
• Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)

Please note: Operation in fail safe mode removes the fire-rating of the electric strike.

Electrical (DC Continuous Duty):

• 510 mA at 12 VDC/250 mA at 24 VDC

Features:

• Tamper-resistant
• Endurance - 1 million cycles
• Fire rated - Rated by numerous safety, quality and fire safety standards; falls within the guidelines for retrofit into fire-rated frames.
• Horizontally adjustable keeper - allows for door and frame misalignment
• Unique latchbolt design - negates the need for a door coordinator

Certification: This strike surpasses BHMA/ANSI Grade 1 requirements for a high level of quality and security.

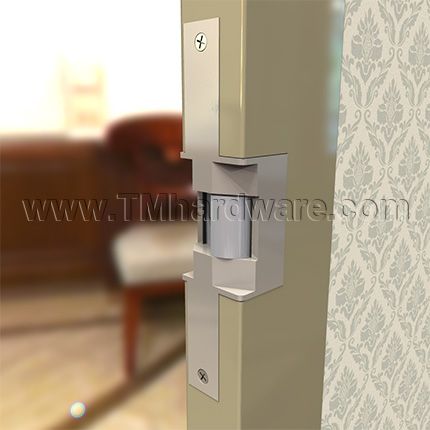

Installation: The HES-Folger Adam 310-2 3/4OB electric strike is designed to be installed on the inactive leaf of a pair of doors. This application is typical when a mortise lockset is on one door, and a vertical rod is on the other door. If a standard strike plate is being used, a door coordinator will need to be installed, to insure that the door with the mortise strike plate closes first. For more details on how to install the HES-Folger Adam 310-2-3/4OB electric strike, see our Installation Instructions.

Please note: Regarding use with the Best 40 series, please contact us or call our office at 845-388-1300.

Operation: Upon receiving an electrical signal, the electric strike releases its hold on the latch which enables the door to be opened from the outside without the need to operate the doorknob. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide additional security, traffic control and convenience of remote operation.

Additional Accessories: The optional accessories below may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

• 152 Universal mounting tabs
• 310-2-3 Strike latch guard (astragal)
• 2001-1 Wire-in bridge rectifier
• 2001M Plug-in bridge rectifier
• 2004M ElectroLynx® adapter
• 2005M3 SMART Pac® III
• 2006M Plug-in buzzer

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 5 year warranty against defects in materials and workmanship.
