HES KM-2 Option Faceplate, for HES 1006 Electric Strike

HES KM-2 Option Faceplate, for HES 1006 Electric Strike
HES

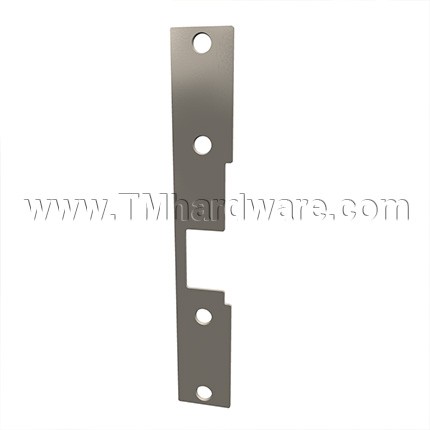

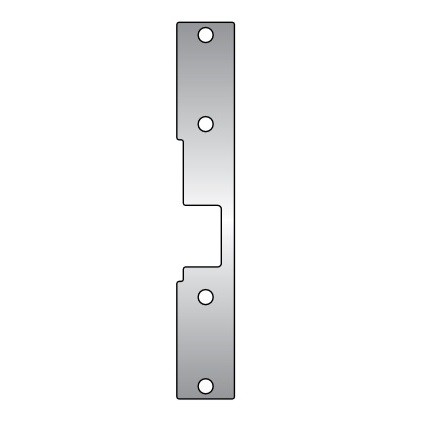

This HES KM-2 Option faceplate is compatible for use with the HES 1006 electric strike. It is designed for wood applications and works with mortise locksets up to 3/4" throw. The mounting holes on the faceplate, enable the electric strike to be fastened to the door frame. Available in a choice of finish options; select from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HSKM-2-630
    Call for price!
    845-388-1300

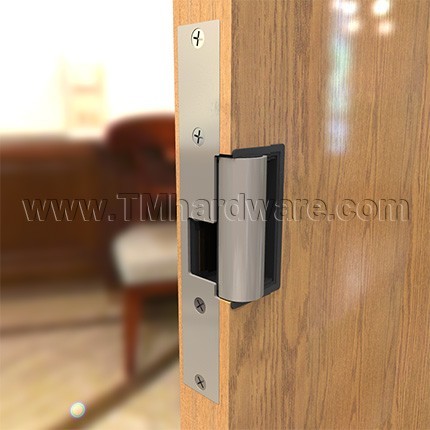

    Faceplates fasten, embellish, and protect doors and electric strikes. It is the part that gets mounted onto the side of the door, surrounding the latchbolt. This HES KM-2 Option faceplate is compatible for use with the HES 1006 electric strike.

    Parts Included:

    • 1 HES KM-2 Option faceplate
    • 2 Mounting screws

    Available Finish: Available in a choice of finish options; select from the dropdown above.

    Material: Heavy duty stainless steel

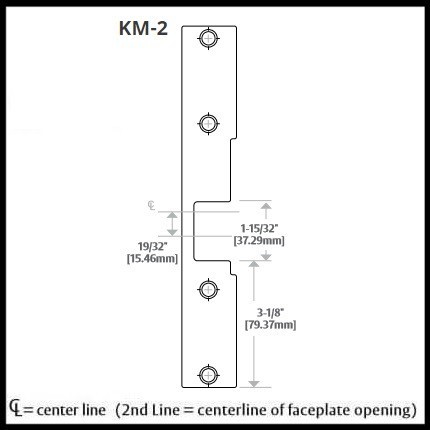

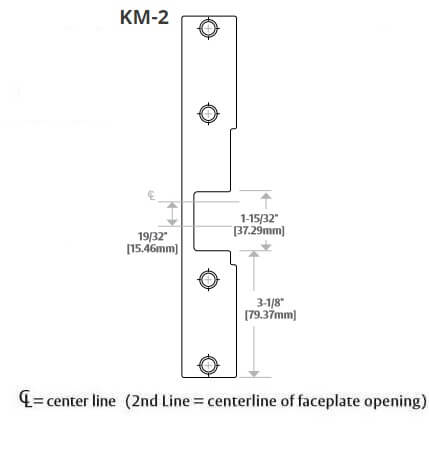

    Width: 1-3/8" (34.9 mm)

    Height: 9" (228.6 mm)

    Keeper Opening: 1-15/32" (37.3 mm)

    Frame Application: For wood appplications.

    For Use With: Mortise locks up to a 3/4" latchbolt.

    Operation: After releasing the latchbolt, the keeper returns to the locked position.

    Certification: ANSI/BHMA Numbers: #E09321, #E09322, #E09323

    Installation: For details on how to install the HES KM-2 Option Faceplate with the 1006 electric strike, see our Installation Instructions.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES J-2 Option Faceplate, for HES 1006 Electric Strike.

      • SKU
        HSKM-2-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      KM-2
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin, Black Powder Coat
