HES NM Option Faceplate, for HES 1006 Electric Strike Series

HES NM Option Faceplate, for HES 1006 Electric Strike Series
HES

This HES NM faceplate is compatible for use with the HES 1006CDB and the HES 1006CAS electric strike, of the HES 1006 series. It works with mortise locksets with a deadbolt used for night latch function only. The mounting holes on the faceplate, enable the electric strike to be fastened to the door frame. Available in a choice of finish options; select from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HSNM-630
    Call for price!
    845-388-1300

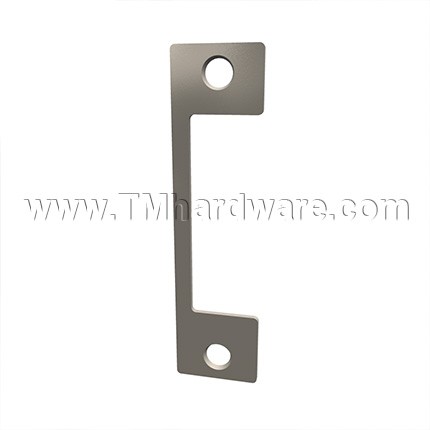

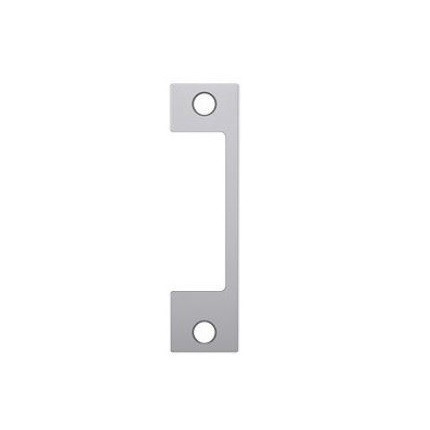

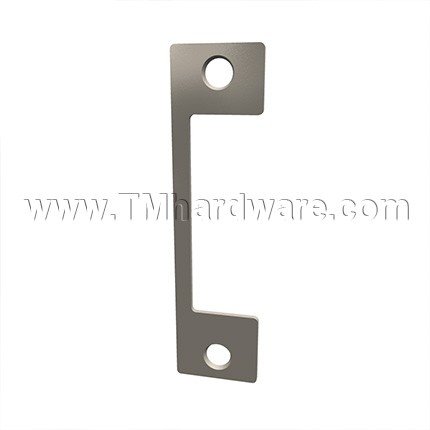

    Faceplates fasten, embellish, and protect doors, and electric strikes. It is the part that gets mounted onto the side of the door, surrounding the latchbolt. This HES NM Option faceplate works with the HES 1006CDB and the HES 1006CAS electric strike, of the HES 1006 series.

    Parts Included:

    • 1 HES NM Option faceplate
    • 2 Mounting screws

    Available Finish: Available in a choice of finish options; select from the dropdown above.

    Material: Heavy duty stainless steel

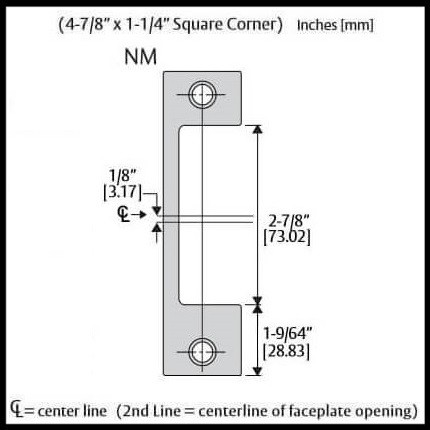

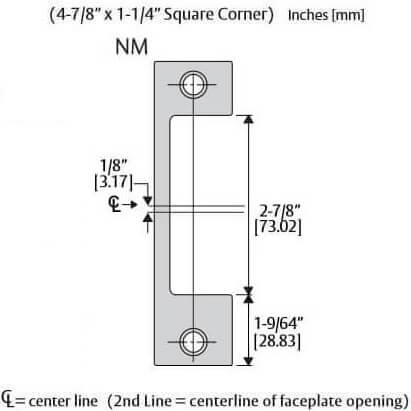

    Width: 1-1/4" (31.8 mm)

    Height: 4-7/8" (123.4 mm)

    Keeper Opening: 2-7/8" (73.02 mm)

    Frame Application: For hollow metal, concrete-filled metal, and aluminum doors.

    For Use With: Mortise locksets with a deadbolt used for night latch function only - a lock that is fitted on the surface of a door, it is operated from the exterior side of the door by a key and from the interior side of the door by a knob.

    Compatible Locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

    Operation: After releasing the latchbolt, the keeper returns to the locked position.

    Certification: ANSI/BHMA Numbers: #E09321, #E09322, #E09323

    Installation: For details on how to install the HES NM Option Faceplate with the 1006CDB or 1006CAS electric strike, see our Installation Instructions.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES ND Option Faceplate, for HES 1006 Electric Strike Series.

      • SKU
        HSNM-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      NM
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin, Black Powder Coat
