Hettich Grant 75E Sliding Door Hardware and Track, Doors up to 75 Lbs.
This product is discontinued. For available product, please see our PC Henderson H200 Single Sliding System.
Hettich Grant Sliding Door Hardware and Track for single doors, minimum 3/4" thick and bypass doors 1 3/8" and 1 3/4" thick. Top mounted with adjustable headroom option. Used in medium duty commercial and residential grade sliding door applications for room doors, closet doors and partitions.
PRICED PER SET

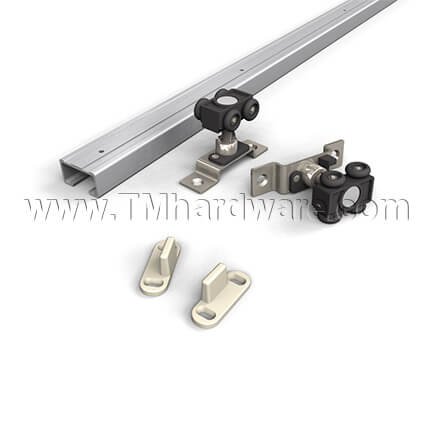

Single Set Includes:
- (1 ea.) Aluminum Box Track
- (2 ea.) Carriers 50E
- (2 ea.) Quick Release Top Plates

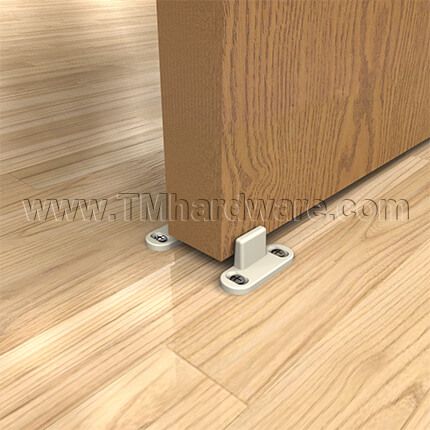

- (1 ea.)Â Floor Guide 110
- Installation Screws
Bypass Set Includes:
- (2 ea.) Aluminum Box Track
- (4 ea.) Carriers 150E
- (4 ea.) Quick Release Top Plates
- (1 ea.) Adjustable Floor Guide 114
- Installation Screws
Applications: Medium duty commercial and residential sliding door hardware for single, bi-part and bypass installations. Used on doors between rooms, closet doors, cabinets, storage walls and partitions.
Door Weight: For doors up to 75 Lbs.

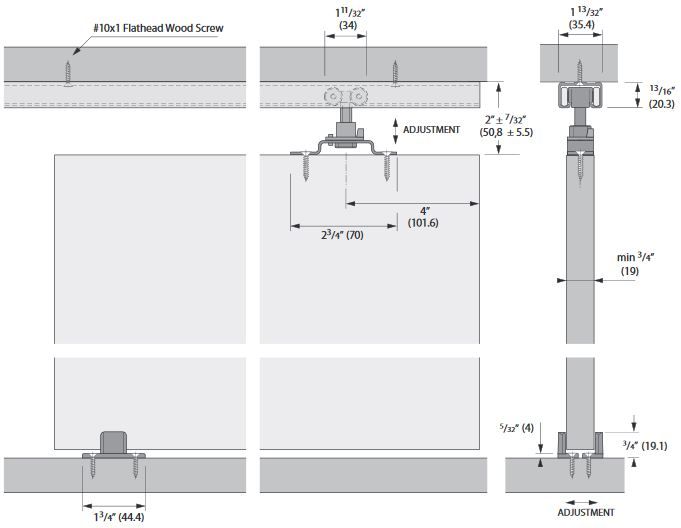

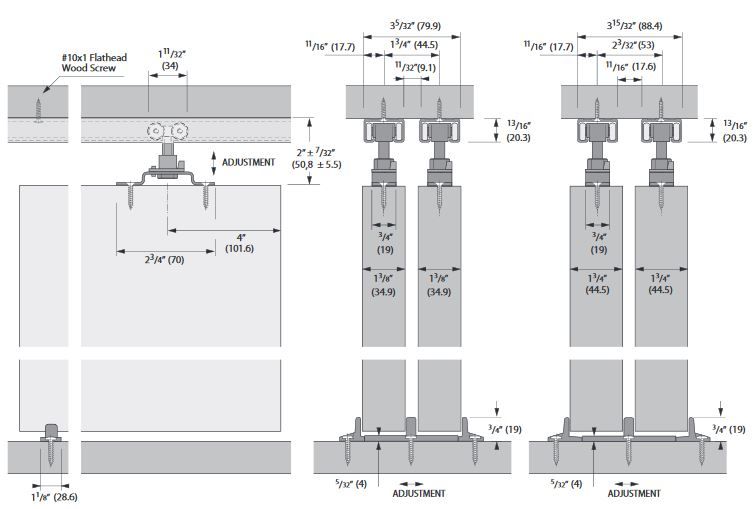

Door Thickness: Single door sets for doors 3/4" (19 mm) min. thick. Bypass door sets for doors 1 3/8" (34.9 mm) and 1 3/4" (44.4 mm) thick.

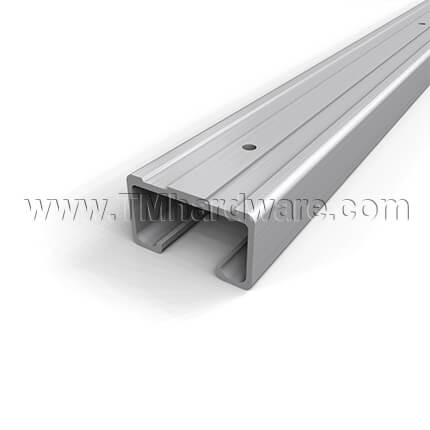

Track: Provided with single track 50E. Available in stock sizes up to 96" track lengths. For larger track lengths, order hardware and track separately.
Carrier: Carrier with precision ball bearing wheels and quick release top plate. Spring loaded carrier with quick release.
Track Mounting: Track is mounted to header.

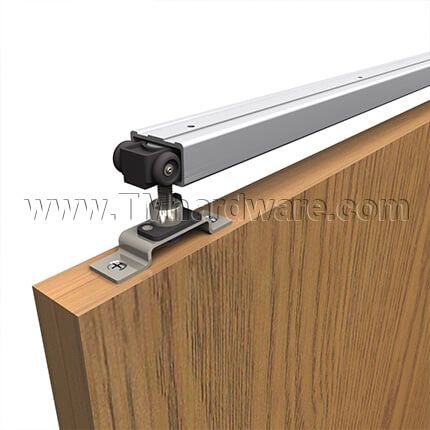

Carrier Mounting: Carriers are mounted to the top of the door.
Headroom: 1 25/32"(45.2 mm) min. - 2 7/32" (56.4 mm) max.
Certifications:Â Meets and/or exceeds ANSI/BHMA standards.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For bi-fold door applications, see our Hettich Grant 25 Bi-fold Door Hardware and Track.
-
QuickShipNo
-
ManufacturerHettich
-
MPN1135337; 1135338; 1135339; 1135340; 1135341; 1135342; 1135343; 1135344
-
Length48" Track, 60" Track, 72" Track, 96" Track
-
Product OptionsSingle Door Hardware, Bypass Door Hardware
