Hettich TopLine Grant XHD 9191126 Hardware Set, Doors up to 500 Lbs.

Grant, TopLine Extra Heavy Duty Hardware Set for sliding doors weighing up to 500 Lbs. and 1" thick minimum. Set contains all hardware aside from track for installing doors in a top mount application.

TopLine XHD Track sold separately.

PRICED PER ITEM

See tabs below for additional information
    • Weight
      1.8 lbs
    • SKU
      HT9191126
    • Starting price: Price: $355.96 per item


    Click to view Hettich Top Line Grant XHD full line catalogue.

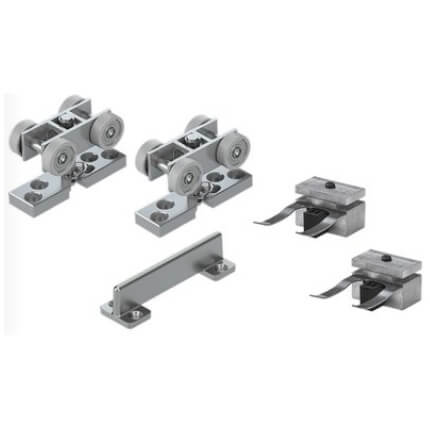

    Set contains all components for a single door or pocket door application:

    • (2 ea.) Carriers
    • (2 ea.) Top Plates
    • (2 ea.) Endstops
    • (1 ea.) Floor Guide
    • For Bi-Part Sets, order additional Hardware Set.

    Track

    Door Thickness: 1" minimum (25 mm)

    Door Height: 118" Maximum (3000mm)

    Load Bearing: 500 Lbs. (227 Kg. maximum)

    Adjustable: 3/8" vertical adjustment; minimal headroom required.

    Materials: Precision ball bearing wheels ensure smooth, quiet and long lasting performance even under full load capacity.

    Applications: Heavy duty line recommended for applications which require the movement of heavy panels, space dividers or large doors. For residential and commercial applications.

    Design: Smooth gentle operation, minimal opening force required. Self-leveling design allows for even distribution of load.

    Floor Guide: Small floor guide keeps door in line. No floor profile needed, no trip hazard.

    Fascia: Optional Aluminum TopLine Fascia available to conceal gap between track and header as well as hardware for a clean, sleek look.

    Certifications: Meets and/or exceeds ANSI/BHMA standards

    Mounting: Top Mount carriers.

    Additional Customization Options: These products can be ordered as Full Sliding Door Sets or as individual components. Additional options including wall mount brackets, fascia and end caps are available. To order please contact us or call our office at 845-388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See our Hettich TopLine Grant XHD Low Profile Hardware Set.
