Ives 210XY Adjustable, Full Surface - Swing Clear Continuous Hinge

Ives 210XY Adjustable, Full Surface - Swing Clear Continuous Hinge
Ives

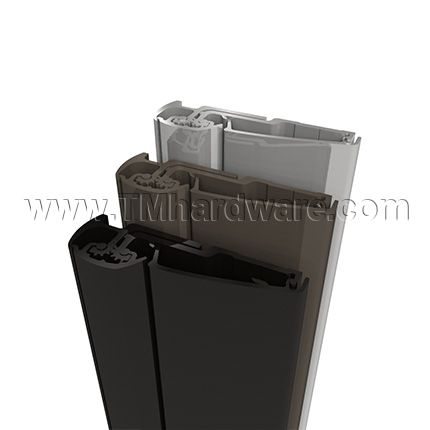

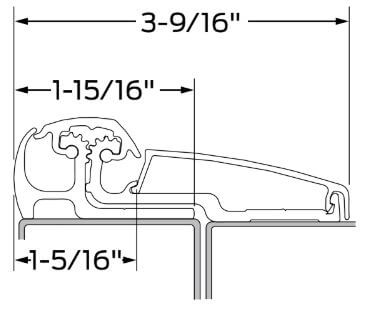

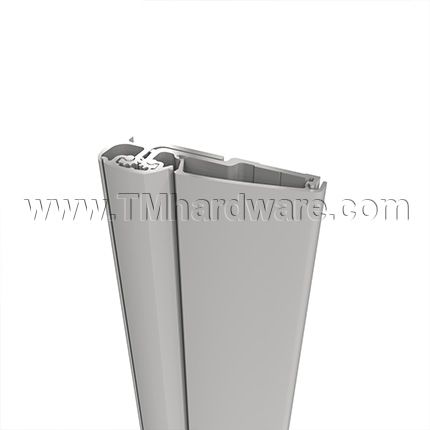

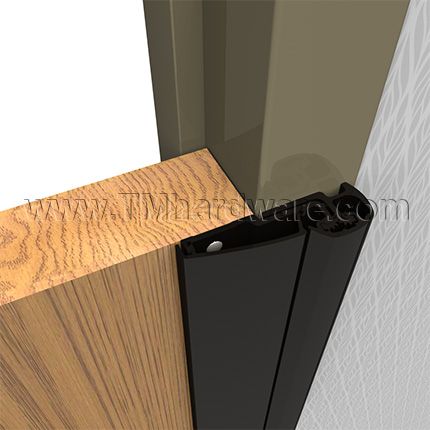

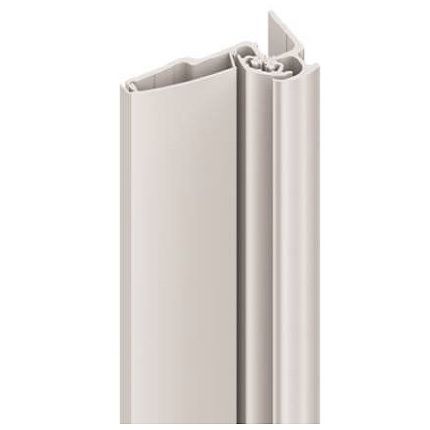

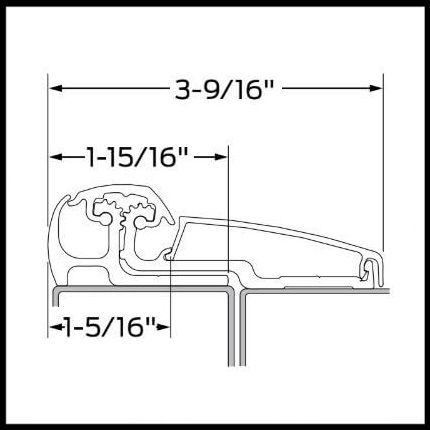

Ives 210XY is an Adjustable, Full Surface, Swing Clear Continuous Hinge with a 1/16" door inset. It can be adjusted laterally and vertically while hanging the door and is patented center loaded, with an interlocking bearign design. This hinge is constructed for doors that are maximum 48" wide and up to 550 pounds. Available in various sized and finishes; choose from the dropdowns below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS210XY-628-83
    • Market price:$522.90
      • save 30%
    • Starting price: Price: $366.03 per item


    Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame. This Aluminum Geared continuous hinge utilizes a single gear section for the leaf and a separate gear section for the frame side of the door.

    Material: 6063-T6 Aluminum

    Available lengths: Choose from options above.

    Handing: Non handed

    Finishes: Choose from options above.

    Design:

    • 1/32" door inset
    • Patented center loaded with an interlocking bearing design.

    Hardware Included:

    • 12-24 x 3/4" Steel self drilling / self tapping Phillips head screw.
    • 12-24 x 3/4" Steel self drilling / self tapping hex head screw

    Door Type:

    • Swing clear for beveled or square edge doors
    • Installs easily on doors with a 90° opening.
    • For doors with a maximum width of 48".
    • For doors weighing up to 550 pounds.

    Electrical Options: Additional options including optional mounting hardware may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    Compliance Details:

    • Meets ANSI 156.26 for 150lbs and 300lbs
    • UL10C certified

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Ives 157XY Adjustable, Full Surface - Narrow Frame Continuous Hinge.

      • SKU
        VS210XY-628-83
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      210XY
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315)
