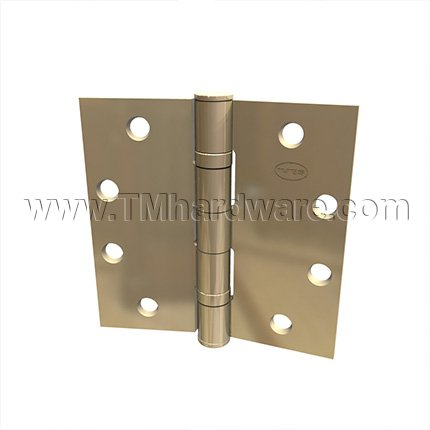

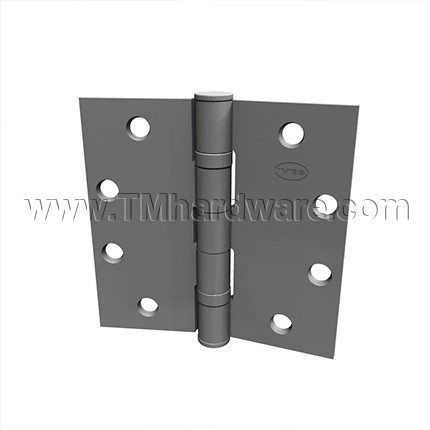

Ives 5BB1, 5 Knuckle, Ball Bearing, Full Mortise, Brass Hinge

Name: Ives 5BB1, 5 Knuckle, Ball Bearing, Full Mortise, Brass Hinge
Brand: Ives
SKU: VS5BB1-5x5-630
Price: 75.78 USD
Availability: InStock

This Ives 5 Knuckle, Ball Bearing, Full Mortise Hinge is a brass hinge suitable for medium weight doors (

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information

Finish
Hinge Size
Hinge Corner
Pin Type

Quantity

Add to compare

The Ives 5 Knuckle, Ball Bearing, Full Mortise Hinge is recommended for medium weight doors (

Recommended for use with a door closer.

Size Options:

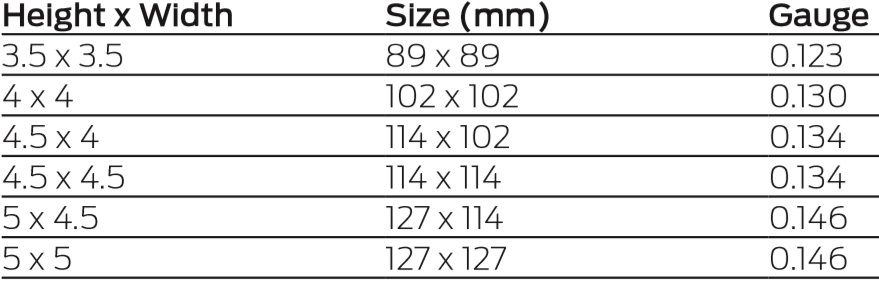

dimensions

Hinge Options:

Rounded Corners
Non-Removable Pin (NRP): Pins have a set screw to prevent tampering with the pin while the door is closed. Select from options above.

Additional Hinge Options: To order, please contact us or call our office at (845) 388-1300.

Hospital Tip: Used primarily for security areas in Hospitals, Prisons, Mental Health Facilities and Clean Rooms. Hospital tip hinges serves to assist in preventing hanging any objects on the tip of the hinge.
Security Stud: comes standard with Non-Removable Pin. This feature is intended to keep the door secure even if the hinge pin is removed.
Security Fasteners: Pin-in-Socket. Protects the door from being removed by locking the leaves of the hinges together.
Four Wire: Provides electric power transfer from the frame to the door in order to supply power to an electrified mortise or cylindrical locks, exit devices with electric latch retraction, and/or electric strikes (pairs of doors). Comes standard with NRP.
Four Wire with Monitor: Comes standard with NRP.
Eight Wire: Provides electric power transfer from the frame to the door in order to supply power to an electrified mortise or cylindrical locRouks, exit devices with electric latch retraction, and/or electric strikes (pairs of doors). Comes standard with NRP.
Eight Wire with Monitor: Comes standard with NRP.
Monitor: Comes standard with NRP.

Please note, detailed images are for illustrative purposes only. Images on screen may appear slightly different in real application. Actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click to view our Ives 5PB1 5 Knuckle, Plain Bearing, Full Mortise, Steel Hinge.

- SKU
  VS5BB1-3.5x3.5-605
QuickShip
No
Manufacturer
Ives
MPN
5BB1
Product Design
- Hinge Category
  Full Mortised Hinge
- Base Material
  Brass, Stainless Steel
- Usage Level
  Heavy Duty
- Throw
  Standard Throw
- Bearing Type
  Ball Bearing
- Knuckles
  5 Knuckle Hinge
- Pin Type
  Standard Hinge Pin, Non-Removeable Pin (NRP)
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner, 5/8" Radius Corner, 1/4" Radius Corner
- Hole Pattern
  Commercial "C" Pattern
- Number of Holes
  8 Holes
Dimensions
- Hinge Size
  3-1/2" x 3-1/2", 4" x 4", 4-1/2" x 4", 4-1/2" x 4-1/2", 5" x 4-1/2", 5" x 5"
- Hinge Thickness
  .180" Thick
Installation
- Door Type
  Wooden Door, Metal Door
- Installation Screws
  Supplied With Fasteners for hollow metal and wood doors:
  12-24 x 1/2 UFPHMS
  12 x 1 1/4 FPHWS
  10-24 x 1/2 UFPHMS
  10 x 1 FPHWS (3.5x3.5 hinge size only)
Additional Options - Purchase Through Our Office
- Reverse Safety Stud Feature
  Yes
- Hospital Tip
  Yes
- Security Fasteners
  Yes
- Electric Modifications
  Yes

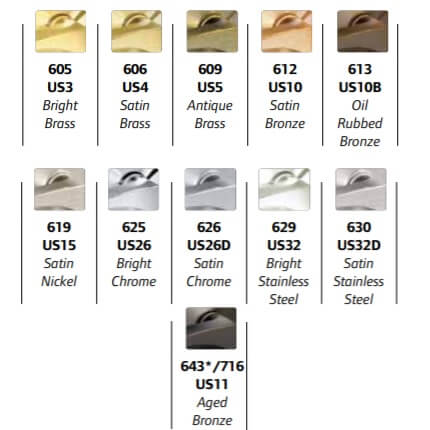

Finishes
- Finish
  Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Antique Bronze (US10A), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Dark Bronze (SP313), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
Compliance Details
- Compliance Details
  BHMA Certified, UL Listed, UL Classified
- ANSI Designation
  A156.1, A156.7
- Warranty
  1 Year Limited Warranty

Click to Print

specs 5bb1

Certified to ANSI/BHMA A156.1 for performance standards.
Meets ANSI/BHMA 156.7 for template hinge dimensions.
UL Classified for windstorm rated assemblies - R37965.
UL Listed, 3 hour fire doors.
