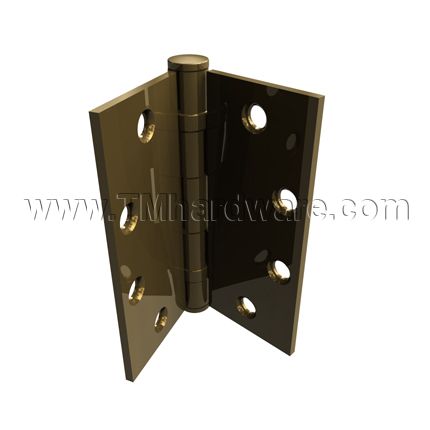

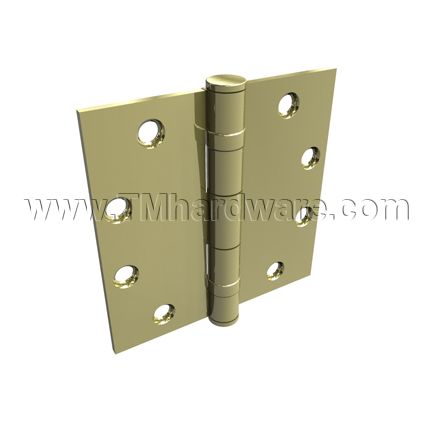

Hager BB1279, 2 Ball Bearing, Steel, Heavy Weight, 5 Knuckle, Full Mortised Door Hinge, All Sizes

Hager BB1279 Door Honge is a Full Mortised, Five Knuckle, Architectural Hinge with Ball Bearings. Standard weight for use with medium weight door or doors requiring medium frequency service. Hinge made of Steel with steel pin. Available in many sizes and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Hinge Size

Quantity

Add to compare

Hager BB1279 is a Full Mortised, Five Knuckle, Architectural Hinge with Ball Bearings. Standard weight for use with medium weight door or doors requiring medium frequency service. Hinge made of Steel with steel pin.

Available sizes:

Hinge Size		Gauge of Metal	Hole Count	Screw Size
Inches	mm	Gauge of Metal	Hole Count	Machine	Wood
3-1/2" x 3-1/2"	89 x 89	0.119	6	1/2 x 10-24	1 x 9
4" x 3-1/2"	102 x 89	0.129	8	1/2 x 12-24	1-1/4 x 12
4" x 4"	102 x 102	0.129	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 4"	114 x 102	0.134	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 4-1/2"	114 x 114	0.134	8	1/2 x 12-24	1-1/4 x 12
5" x 4"	127 x 102	0.145	8	1/2 x 12-24	1-1/4 x 12
5" x 4-1/2"	127 x 114	0.145	8	1/2 x 12-24	1-1/4 x 12
5" x 5"	127 x 127	0.145	8	1/2 x 12-24	1-1/4 x 12
6" x 4-1/2"	152 x 114	0.160	10	1/2 x 1/4-20	1-1/2 x 14
6" x 5"	152 x 127	0.160	10	1/2 x 1/4-20	1-1/2 x 14
6" x 6"	152 x 152	0.160	10	1/2 x 1/4-20	1-1/2 x 14

Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

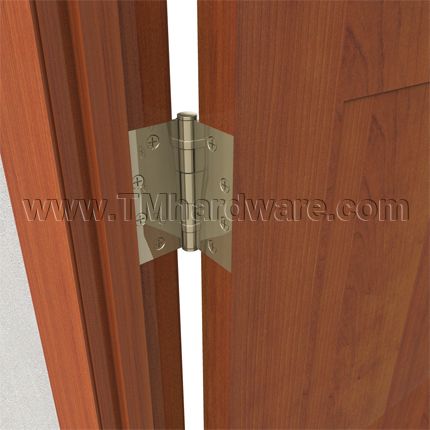

Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Contains button tip and plug.

Additional Options - Can be purchased through our office

Non-removable pin (NRP). Pins which have a groove milled into them. A set screw is inserted through the middle knuckle into the groove. This way the pin, hinge and door cannot be removed.
Reverse Safety Stud Feature available. This feature is intended to keep the hinge locked in place from abuse of battering or destruction of the hinge and screws. It is primarily used in prisons and psychiatric areas.
Air Transfer Feature available. This feature is for doors required to transfer compressed air.
Reverse Hole Pattern: Hinge size 3-1/2" x 3-1/2" is available with reverse whole pattern. See Product Specs Tab for template.
Unequal Leaves: Hinge sizes 4-1/2" x 4-1/2" and 5" x 5" are available with two different leaf sizes. Unequal leaf hinges are great if you have mounting areas of different surface sizes. See Product Specs Tab for template.
Concealed Electric Modifications available: EMN, ETW, ETM. The electric hinge should be the center hinge and used only for low voltage power transfer (48 volts and under) because of safety. The use of a mortar or jamb box is recommended together with electrically modifies hinges in order to protect the wire termination on the inside of the frame. If the box is not used and wires are damaged, warranty of the product will be void.

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Data Tab for exact measurements.

This product has a lifetime guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.

For brass or stainless steel options, see our BB1191 Architectural Door Hinge.

- SKU
  HGBB1279-3.5x3.5-LS
QuickShip
No
Manufacturer
Hager Companies
MPN
BB1279
Product Design
- Hinge Category
  Full Mortised Hinge
- Base Material
  Steel
- Usage Level
  Standard Duty
- Throw
  Standard Throw
- Bearing Type
  Ball Bearing
- Knuckles
  5 Knuckle Hinge
- Pin Type
  Standard Hinge Pin
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner
- Hole Pattern
  Commercial "C" Pattern
- Number of Holes
  See Dimensions Chart
Dimensions
- Hinge Size
  3-1/2" x 3-1/2", 4" x 3-1/2", 4" x 4", 4-1/2" x 4", 4-1/2" x 4-1/2", 5" x 4", 5" x 4-1/2", 5" x 5", 6" x 4-1/2", 6" x 5", 6" x 6"
- Hinge Thickness
  See Dimensions Chart
Installation
- Door Type
  Wooden Door, Metal Door
- Installation Screws
  4-1/2" x 4-1/2": All machine screws and all wood screws provided
  4-1/2" x 4": All machine screws and all wood screws provided
  3-1/2" Hinge: All wood screws and half metal screws
  4" Hinge: All wood screws and half metal screws
  5" Hinge: All metal screws and half wood screws
  Additional screw packs can be provided if listed in order comments before completing purchase.
Additional Options - Purchase Through Our Office
- Reverse Hole Pattern
  Yes
- Reverse Safety Stud Feature
  Yes
- Air Transfer
  Yes
- Electric Modifications
  Yes
Finishes
- Finish
  Luma Sheen Aluminum, Painted, Mechanical Galvanized Steel, Prime Coat (USP), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D)
Compliance Details
- Compliance Details
  BHMA Certified
- ANSI Designation
  A8112, A156.18
- Warranty
  Lifetime Limited Warranty

Click to Print 3-1/2" Hinge Template

Click to Print 4" Hinge Template

Click to Print 4-1/2" Hinge Template

Click to Print 4-1/2" Reverse Safety Stud Hinge Template

Click to Print 4-1/2" Air Transfer Hinge Template

Click to Print 5" Hinge Template

Click to Print 5" Reverse Safety Stud Hinge Template

Click to Print 5" Air Transfer Hinge Template

Click to Print 5" x 4-1/2" Unequal Leaves Hinge Template

Click to Print 6" Hinge Template

Click to Print Windstorm Rated Components Chart

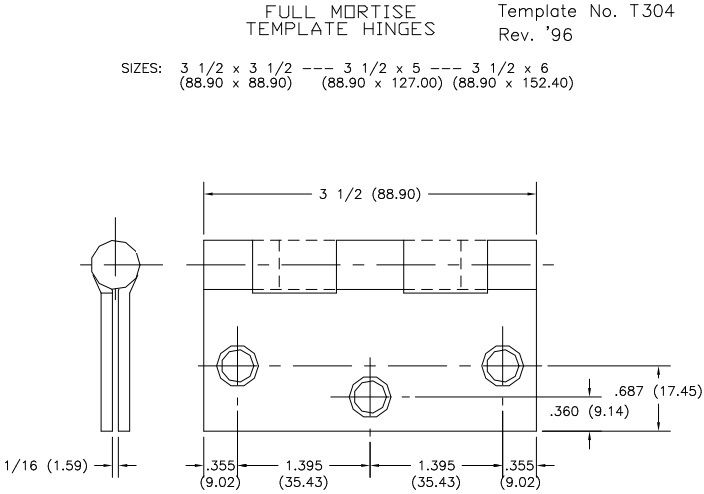

3-1/2" Hinge Template. Select links above for additional templates.

Hinge complies with ANSI A8112.

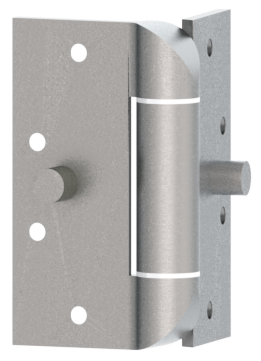

Reverse Safety Stud
