Ives 5BB1HW, 5 Knuckle, Ball Bearing, Heavy Weight, Full Mortise, Brass Hinge

Ives 5BB1HW, 5 Knuckle, Ball Bearing, Heavy Weight, Full Mortise, Brass Hinge
Ives

This Ives 5 Knuckle, Ball Bearing, Heavy Weight, Full Mortise Hinge is made from brass. The hinge is suitable for heavier weight doors (>150 lbs.) with high frequency usage (400 cycles per day). Made with four ball bearing assemblies and is recommended for use with a door closer. Many sizes and finishes available; select from the options below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS5BB1HW-4.5x5-625
    • Market price:$153.30
      • save 30%
    • Starting price: Price: $107.31 per item


    This Ives 5 Knuckle, Ball Bearing, Heavy Weight, Full Mortise Hinge is made from brass. The hinge is suitable for heavier weight doors (>150 lbs.) with high frequency usage (400 cycles per day). Made with four ball bearing assemblies and is recommended for use with a door closer.

    Size Options:

    dimensions

    Hinge Options:

    • Rounded Corners
    • Non-Removable Pin (NRP): Pins have a set screw to prevent tampering with the pin while the door is closed. Select from options above.

    Additional Hinge Options: To order, please contact us or call our office at (845) 388-1300.

    • Hospital Tip: Used primarily for security areas in Hospitals, Prisons, Mental Health Facilities and Clean Rooms. Hospital tip hinges serves to assist in preventing hanging any objects on the tip of the hinge.
    • Security Stud: comes standard with Non-Removable Pin. This feature is intended to keep the door secure even if the hinge pin is removed.
    • Security Fasteners: Pin-in-Socket. Protects the door from being removed by locking the leaves of the hinges together.
    • Four Wire: Provides electric power transfer from the frame to the door in order to supply power to an electrified mortise or cylindrical locks, exit devices with electric latch retraction, and/or electric strikes (pairs of doors). Comes standard with NRP.
    • Four Wire with Monitor: Comes standard with NRP.
    • Eight Wire: Provides electric power transfer from the frame to the door in order to supply power to an electrified mortise or cylindrical locks, exit devices with electric latch retraction, and/or electric strikes (pairs of doors). Comes standard with NRP.
    • Eight Wire with Monitor: Comes standard with NRP.
    • Monitor: Comes standard with NRP.

    Please note, detailed images are for illustrative purposes only. Images on screen may appear slightly different in real application. Actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click to view our Ives 5BB1, 5 Knuckle, Ball Bearing, Full Mortise, Steel Hinge.

      • SKU
        VS5BB1HW-4.5x5-625
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      5BB1HW
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Brass, Stainless Steel
      • Usage Level
        Extra Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Ball Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin, Non-Removeable Pin (NRP)
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner, 1/4" Radius Corner, 5/8" Radius Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4-1/2" x 5", 4-1/2" x 4-1/2", 5" x 4-1/2", 5" x 5"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Supplied With Fasteners for hollow metal and wood doors:
        12-24 x 1/2 UFPHMS
        12 x 1 1/4 FPHWS
    • Additional Options - Purchase Through Our Office
      • Reverse Safety Stud Feature
        Yes
      • Hospital Tip
        Yes
      • Security Fasteners
        Yes
      • Electric Modifications
        Yes
    • Finishes
      • Finish

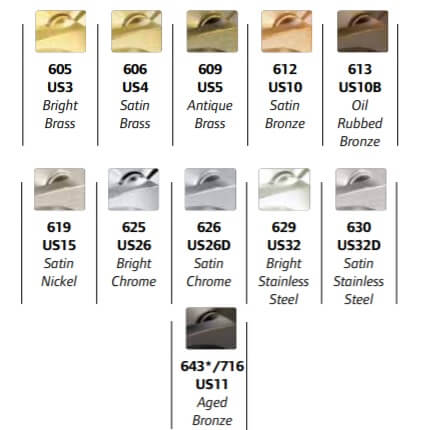

        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Antique Bronze (US10A), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Dark Bronze (SP313), Stainless Steel; Bright (US32), Stainless Steel, Satin (US32D)
    • Compliance Details
      • Compliance Details
        BHMA Certified, UL Listed, UL Classified
      • ANSI Designation
        A156.1, A156.7
      • Warranty
        1 Year Limited Warranty
    • Certified to ANSI/BHMA A156.1 for performance standards.
    • Meets ANSI/BHMA 156.7 for template  hinge dimensions.
    • UL Classified for windstorm rated  assemblies - R37965.
    • UL Listed, 3 hour fire doors.
