Ives 715 Pin and Barrel, Half Wrap, Stainless Steel Continuous Hinge

Ives 715 Pin and Barrel, Half Wrap, Stainless Steel Continuous Hinge
Ives

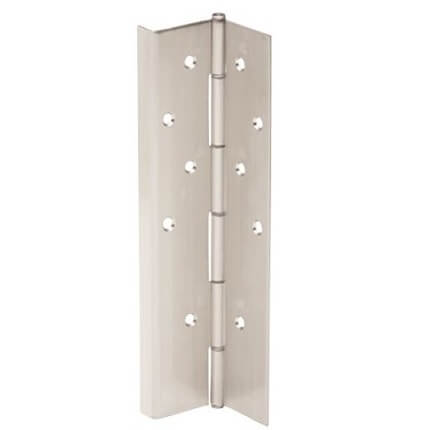

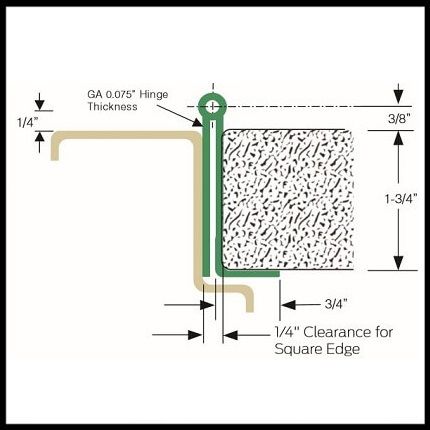

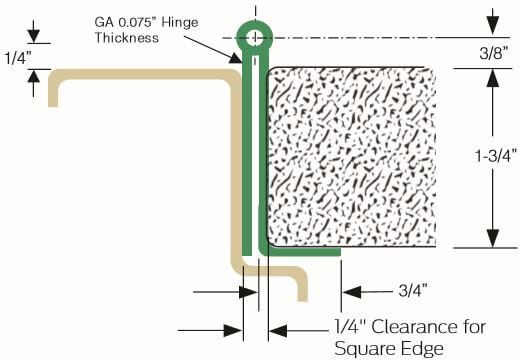

Ives 715 is a Pin and Barrel, Half Wrap, Stainless Steel Continuous Hinge. It features a nylon self-lubricating, medical-grade split bearing design which is mounted on the door stile’s side, wrapping half way around it, and the inside of the frame side jamb, whereby only the pin and barrel and a small portion of the hinge is visible when the door is closed. It has a built in edge guard, a 1/4" diameter pin, and is constructed for doors that are maximum 48" wide and up to 600 pounds. Available in various sizes; choose from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS715-US32D-83
    • Market price:$998.03
      • save 30%
    • Starting price: Price: $698.62 per item


    Stainless steel, pin and barrel, continuous hinges stretches along the entire length of the door and frame, ensuring door alignment is maintained for the lifetime of the building. The standard series pin and barrel continuous hinges feature twin self lubricated, nylon bearings with a stainless steel pin.

    Material: 14 Gauge Type - 304 Stainless Steel

    Available lengths: Choose from the options above.

    Handing: Non Handed, handing required for custom cut lengths.

    Finish: US32D - Satin Stainless Steel

    Design:

    • 1/4" Diameter pin with nylon self-lubricating, medical grade split bearing design.
    • 1/16" door inset.
    • Built in Edge Guard.

    Hardware Included:

    • 10 x 1/2" Stainless self drilling / self tapping phillips head screw.
    • 10 x 1" Stainless phillips head wood screw.

    Door Type:

    • For square edge doors.
    • For doors with a maximum width of 48".
    • For doors weighing up to 300 pounds without reinforcing.
    • For doors weighing up to 600 pounds with reinforcing.

    Hospital Tip Feature: Optional ligature resistant and tamper resistant Hospital Tip Cap which provides a single uniform 45° angle surface with no exposed edges or openings. Choose from the options above.

    Electrical Options: Additional electrification options including Electric power transfer and Electrical through wire panel, and optional mounting hardware may be ordered. For details and pricing please contact us or call our office at 845-388-1300.

    Compliance Details:

    • Meets ANSI 156.26 for 150lbs. and 300lbs.
    • UL10C certified.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Ives 711CS Pin and Barrel, Full Mortise, Swing Clear Continuous Hinge with Decorative Cover.

      • SKU
        VS715-US32D-83
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      715
    • Hospital Tip
      Not Required, Required
