Ives 7256 Center Hung Pivot Set with Top and Bottom Pivot, Doors to 600LB

Ives 7256 Center Hung Pivot Set with Top and Bottom Pivot, Doors to 600LB, Polished Brass (US3) Finished
Ives

Ives center hung pivot sets are installed in the center of the door. The pivot point is centered in the thickness of the door. They can act on either single or double acting doors. This Ives 7256 pivot set is for doors not larger then 4'0" x 8'0" and up to 600 lbs. It has easy installation with tilt on bearing and bearing pin. It's non handed and available in a variety of finishes.

PRICED PER SET

See tabs below for additional information
    • SKU
      VS7256-SET-605
    • Market price:$989.31
      • save 30%
    • Starting price: Price: $692.52 per set

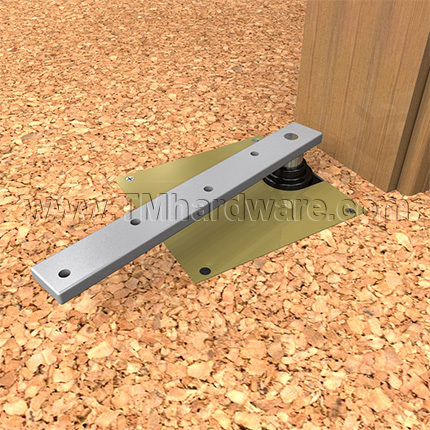

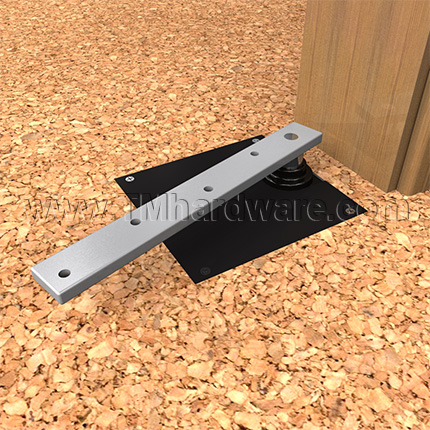

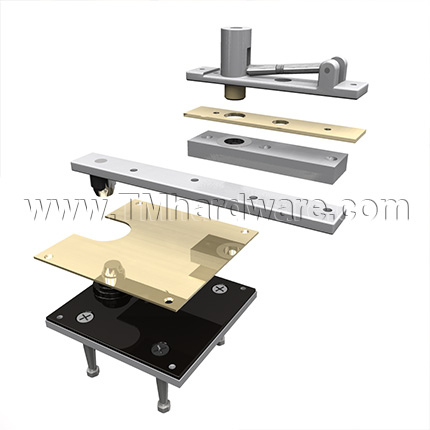

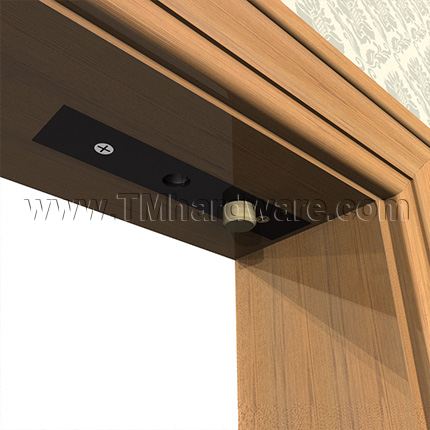

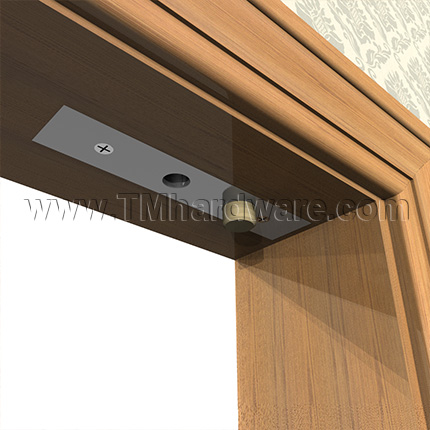

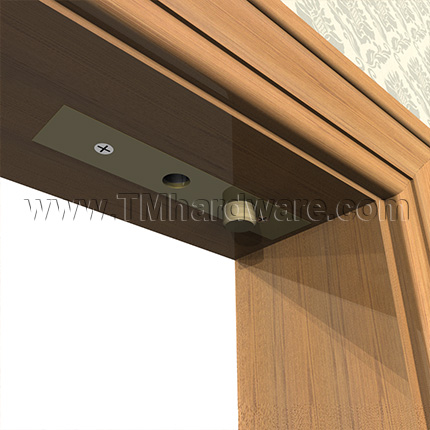

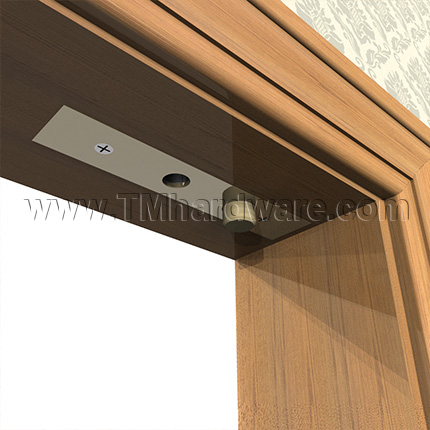

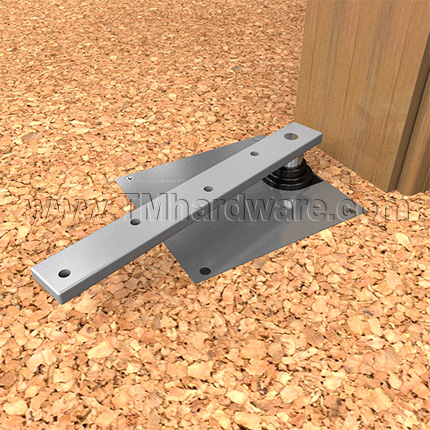

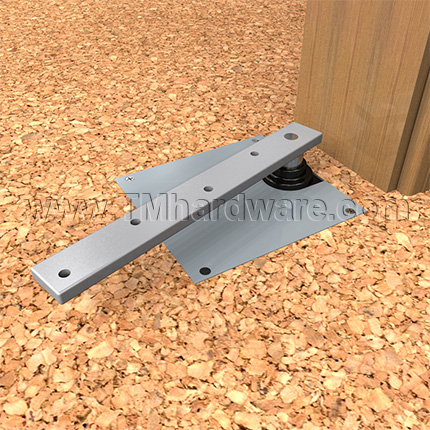

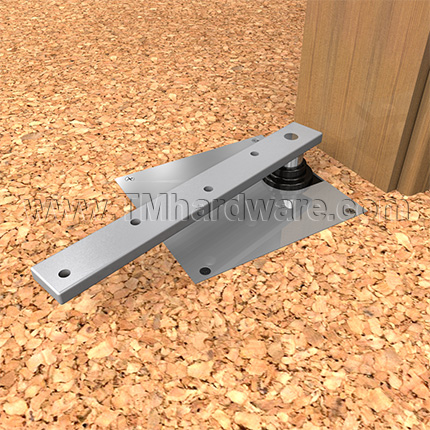

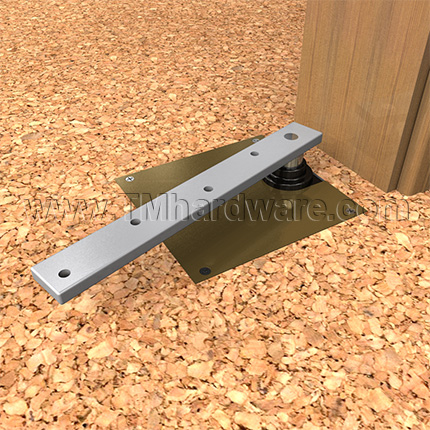

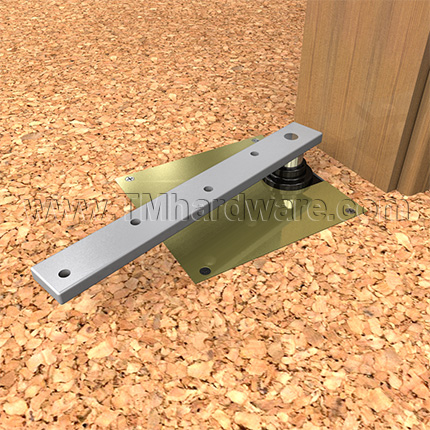

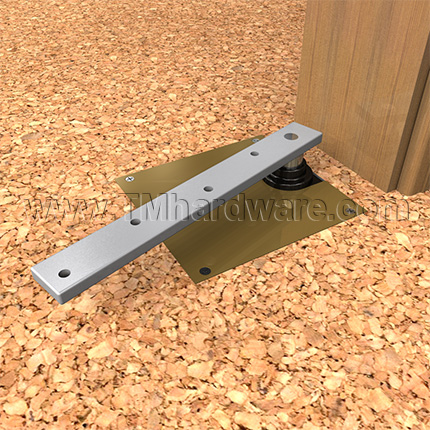

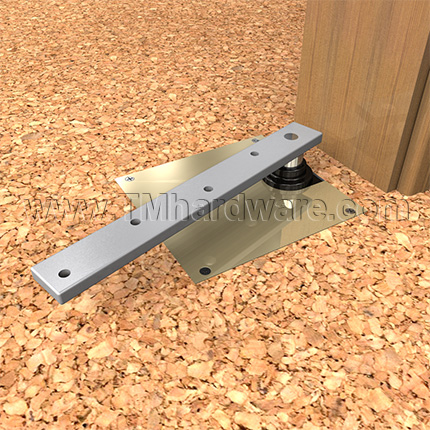

    Ives 7256 is a center hung pivot set which consists of a top header mount and bottom base mount pivot. It has a vertical adjustment range of 3/16" with positive locking that allows the installer to precisely install the door and balance the load.

    Material: Cast Brass

    Available Finishes: Variety of finishes available - Choose from Dropdown above

    Handing: Non Handed

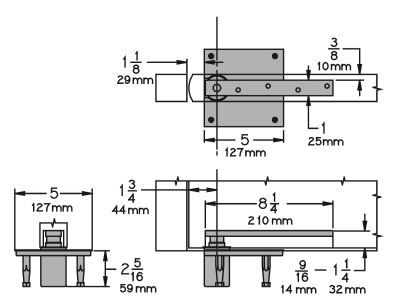

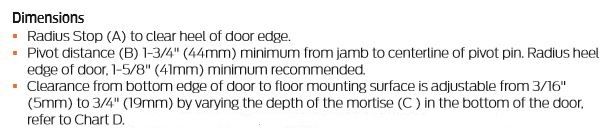

    Dimensions:

    • Not recommended for doors larger then 4'0" x 8'0"
    • Adjustable floor to door clearance 3/16" to 3/4" -Call our office if greater then 3/4"
    • Door thickness minimum for 1- 3/4" doors

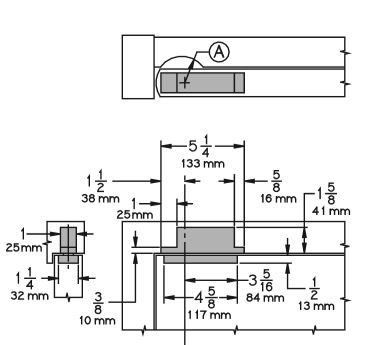

    • For more detailed dimensions - see product specs below

    Features:

    • Vertical adjustment range of 3/16" with positive locking
    • Easy installation with tilt bearing and bearing pin

    Compliance Details:

    • Meets ANSI/BHMA 156.4 C07021
    • UL listed for 20 min fire doors

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 1 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Ives 7253 Center Hung Pivot Set with Top Header Mount and Bottom Base Mount Pivot.

      • SKU
        VS7256-SET-605
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      7256
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Matt Black, Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Aluminum Painted (689), Dull Bronze Painted (691), Dark Bronze Painted (695), Brass Painted (SP4)

    Click to Print - Ives 7256 Template
