Ives 8189 Athens Style Door Pull, Decorative, 19-13/16" CTC

Name: Ives 8189 Athens Style Door Pull, Decorative, 19-13/16" CTC
Brand: Ives
SKU: VS8189

Ives 8189 Athens Offset Tubular Door Pull is 1-1/4” diameter with 1-1/4” diameter mounting posts. Available in 19-3/16” CTC. Provided with heavy-duty mounting hardware. This pull can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes available, see available options.

PRICED PER PIECE / SET

*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls.

See tabs below for additional information

Finish
Screw Pack

Quantity

Add to compare

Ives 8189 Offset Door Pull, Athens Style.

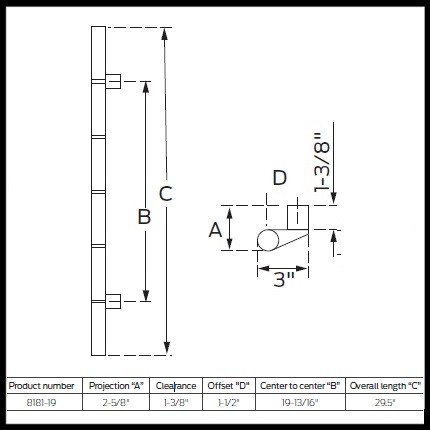

Product number	Projection	Clearance	Offset	Center to center	Overall length
8189-19	2-5/8"	1-3/8"	1-1/2"	19-13/16"	29.5"

Mounting Types:

Single Pull - provided with thru-bolt mount
Push / Pull Set - provided with back to back mounting

Door Thickness: For doors 1-1/2" - 1-3/4" thick. For additional thickness, please contact our office.

Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.

Priced per piece / set

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.

See our Ives 8281 Georgian Style Offset Door Pull.

- SKU
  VS8189-19-630
QuickShip
No
Manufacturer
Ives
About this Product
- Mount Design
  Offset Mount
- Style
  Modern
- Base Material
  Brass, Stainless Steel
Dimensions
- Diameter
  1-1/4" Diameter
- Length
  Up to 29-1/2" Length
- CTC
  19-13/16" CTC
- Projection
  2-5/8" Projection
- Clearance
  1-3/8" Clearance
- Offset
  1-1/2" Offset
Installation
- Screw Pack
  Single Pull, Thru-Bolt (Standard), Single Pull, Countersunk Thru-Bolt (#F), Single Pull, Concealed, Wood Door (#I), Single Pull, Concealed, Metal Door (#L), Push/Pull, Back to Back, Wood or Metal Door (#N)*, Single Pull, Concealed, Aluminum Doors (#A), Single Pull, Décor Blind Thru-Bolt, Wood or Metal Door (#O), Push/Pull, Back to Back, ½” Glass Door (#P)*, Single Pull, Décor Blind Thru-Bolt, ½” Glass Door (#Q), Single Pull, Security Thru-Bolt with Std. Washer (#X)
- Door Thickness
  1-1/2" - 1-3/4" Thick Doors
- Mounting Hardware
  3/8-16 Phillips Head Drive Screws
Finishes
- Finish
  Polished Brass (US3), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Stainless Steel; Satin (US32D)
Compliance Details
- ANSI Designation
  A156.06
- Warranty
  1 Year Limited Warranty
